Fortinet FortiADC 60F Quick Start Manual page 7

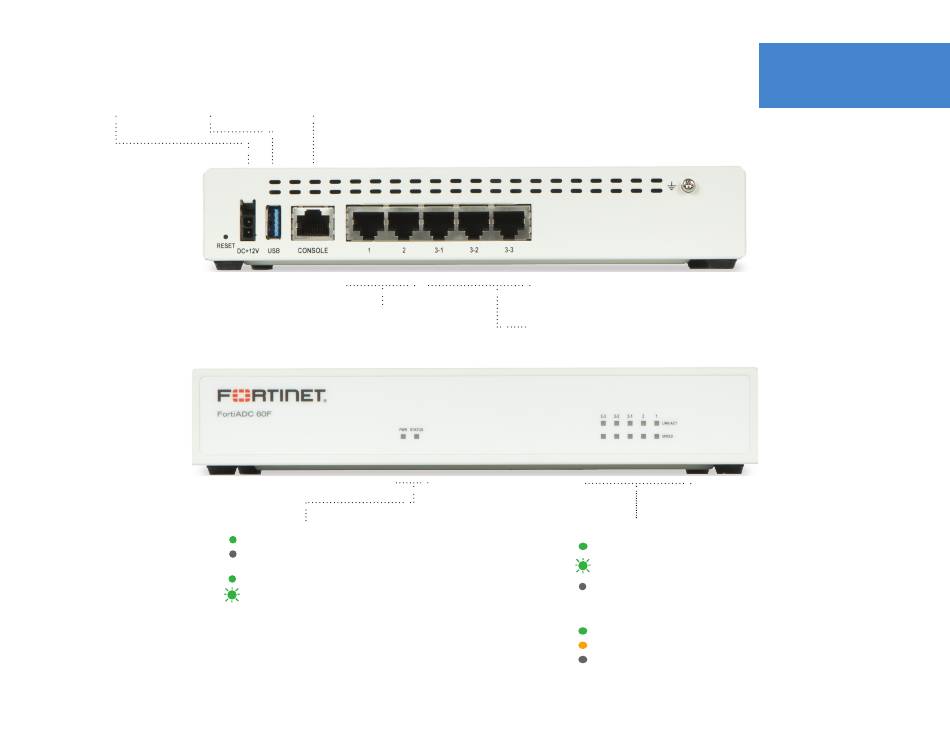

Power Connection USB Port
12Vdc, 3A
Reserved for future use.
12 12
Console Port (RJ-45)
RS-232 serial for connection to
(USB-A)
management computer
Ethernet Port 1 - 2 (RJ-45)
Gigabit Ethernet network connections
Connect directly to CPU
Power
Green: The unit is on
Off: The unit is off
Status
Green: Read/write activity
Flashing Green: Booting up
Ethernet Port 3-1, 3-2 and 3-3 (RJ-45)
Connect to an internal switch and then goes to CPU
The total bandwidth of 3-1, 3-2 and 3-3 to CPU is up to 1Gbps
Ethernet Ports Link/Activity
Green: Connected
Flashing Green: Transmitting & receiving data
Off: No link established
Ethernet Port Speed
Green: Connected at 1Gbps
Amber: Connected at 100 Mbps
Off: Connected at 10Mbps or not in use
