Installation

1
Please read "Cautions and Warnings" prior to installing your device.
The appliance can be placed on any flat surface with the provided rubber feet, or
mounted to a wall with the providing mounting hardware.
To install the appliance on a flat surface
1. Ensure that the surface onto which the appliance to be installed is clean, level, and
stable and that there is at least 1.5in (3.8cm) of clearance on all sides to allow for
adequate airflow.
2. Attach the provided rubber feet to the bottom of the appliance.
3. Place the appliance in the designated location.
4. Verify that the spacing around the appliance conforms to requirements and that the
unit is level.
5. If applicable, attach the antennas to the device.
6. Plug the provided power adapter into the rear of the unit, and then plug the
transformer into a grounded electrical outlet or a separate power source such as
an uninterruptible power supply (UPS) or a power distribution unit (PDU) with the
provided power cable.

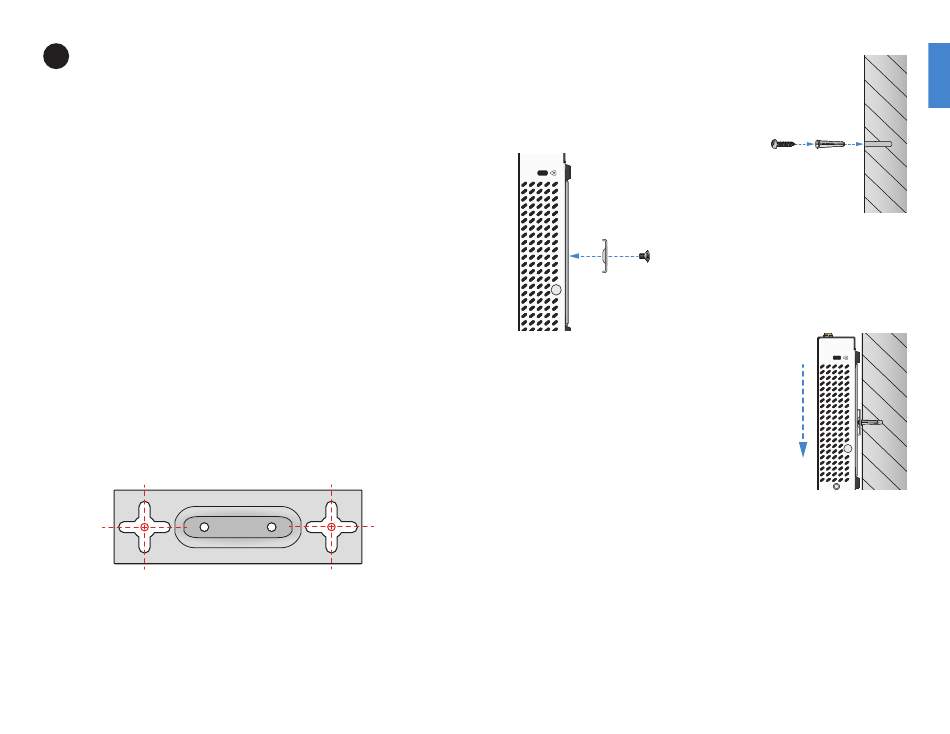

To mount the device on a wall
1. Use the mounting bracket to mark the location of the mounting holes on a flat wall
surface.
2. Drill the mounting holes in the marked locations.
6 6
3. Insert the provided anchors into the drilled holes then screw
the screws into the anchors, leaving approximately 2mm of the
screw exposed for connecting to the mounting bracket.
4. Fasten the mounting bracket securely to the back
of the unit using the provided screws.
5. Position the device with the attached mounting bracket
over the exposed screws in the wall, then slide the device
downward to secure it in place.
6. If applicable, attach the antennas to the device.
7. Plug the provided power adapter into the rear of the unit, and then plug the
transformer into a grounded electrical outlet or a separate power source such as
an uninterruptible power supply (UPS) or a power distribution unit (PDU) with the
provided power cable.
