FortiADC 60F
QuickStart Guide

Advertisement

Table of Contents
loading

Related Manuals for Fortinet FortiADC 60F

Summary of Contents for Fortinet FortiADC 60F

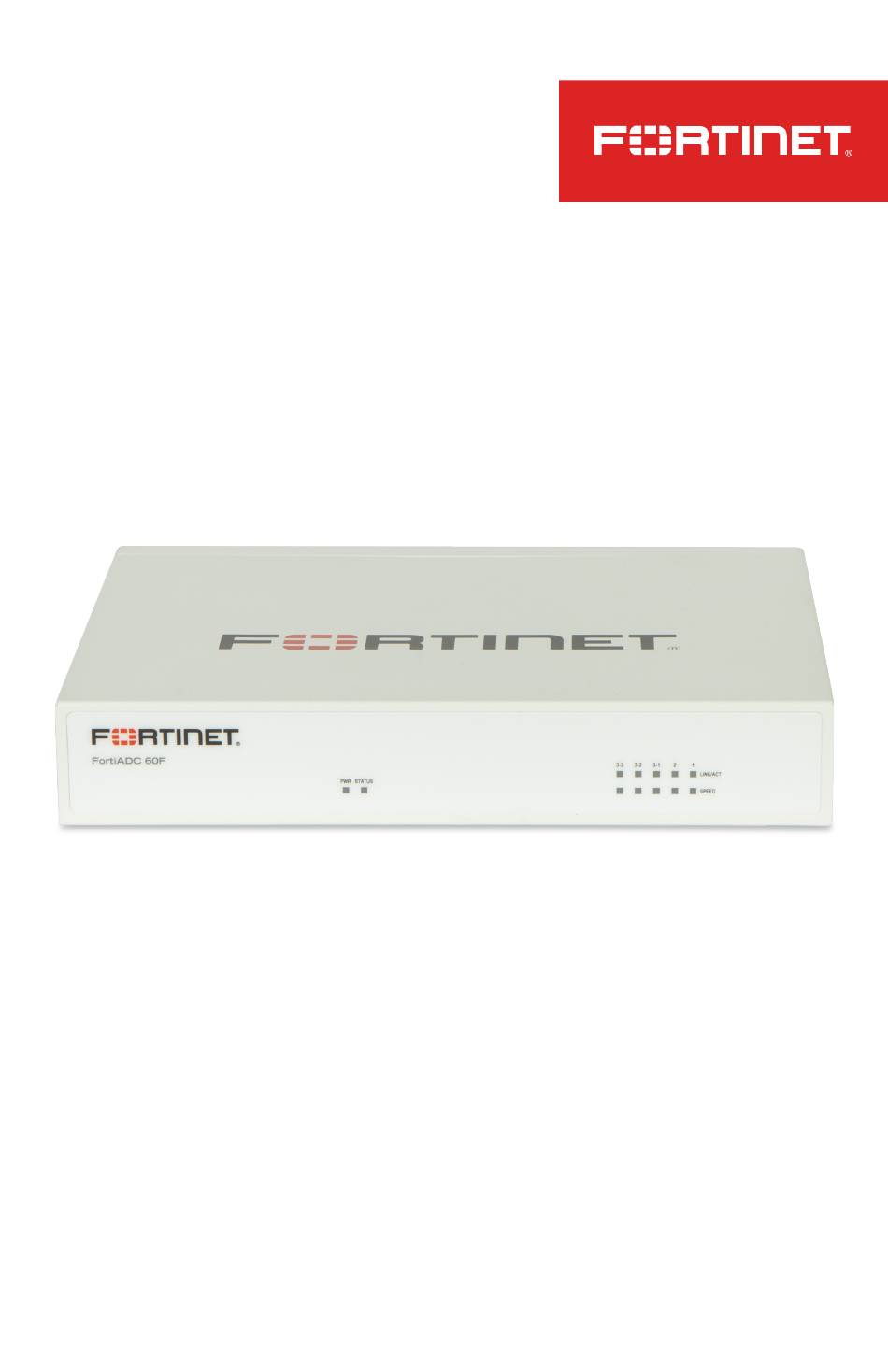

  • Page 1 FortiADC 60F QuickStart Guide...

  • Page 2: Register For Support

    Nothing herein represents any binding commitment by Fortinet, and Fortinet disclaims all warranties, whether express or implied, https://support.fortinet.com except to the extent Fortinet enters a binding written contract, signed by Fortinet’s General Counsel, with a purchaser that expressly warrants that Toll free: 1 866 648 4638...

  • Page 3: Box Includes

    Box Includes Before You Begin Write down details that you may need from your network administrator or ISP. DSL PPPoE FortiADC 60F Username Password QuickStart Guide FortiADC 60F QuickStart Guide Cable Modem DHCP It is normal to not require a hostname but your ISP may require it.

  • Page 4: Installation

    Installation 3. Insert the provided anchors into the drilled holes then screw the screws into the anchors, leaving approximately 2mm of the screw exposed for connecting to the mounting bracket. Please read “Cautions and Warnings” prior to installing your device. The appliance can be placed on any flat surface with the provided rubber feet, or mounted to a wall with the providing mounting hardware.

  • Page 5: Basic Connections

    Basic Connections Web Browser with Ethernet cable Power Connection Plug the provided power cable into the rear of the appliance, and then into a grounded electrical outlet or a separate power source such as an uninterruptible power supply (UPS) or a power distribution unit (PDU). Port 1 To connect to the web UI Setup Options...
  • Page 6 Terminal Emulation Serial Port Console Port To connect to the CLI Requires: Terminal emulator such as PuTTY, Tera Term, or a terminal server. 1. Connect the appliance console port to the management computer using the provided console cable. 2. Start a terminal emulation program on the management computer, select the COM port, and use the following settings: Baud Rate: 9600 Data bits: 8...
  • Page 7 Device Guide Console Port (RJ-45) RS-232 serial for connection to Power Connection USB Port (USB-A) 12Vdc, 3A management computer Reserved for future use. Ethernet Port 3-1, 3-2 and 3-3 (RJ-45) Ethernet Port 1 - 2 (RJ-45) Connect to an internal switch and then goes to CPU Gigabit Ethernet network connections The total bandwidth of 3-1, 3-2 and 3-3 to CPU is up to 1Gbps Connect directly to CPU...
  • Page 8 この装置は、情報処理装置等電波障害自主規制協議会（ＶＣＣＩ）クラスＢ情報技術 装置です。この装置は、家庭環境で使用することを目的として いますが、この装置がラジオやテレビジョン受信機に近接して使用されると、受信障害を引き起こすことがあります。取扱説明書に従って正しい取り 扱いをして下さい。 Product Safety Electrical Appliance & Material (PSE) – Japan 日本では電気用品安全法(PSE)の規定により、同梱している電源コードは本製品の専用電源コードとして利用し、他の製品に使用しないでください。 Bureau of Standards Metrology and Inspection (BSMI) – Taiwan 這是甲類的資訊產品，在居住的環境中使用時，可能會造成射頻干擾，在這種情況下，使用者會被要求採取某些適當的對策。 The presence conditions of the restricted substance (BSMI RoHS table) are available at the link below: https://www.fortinet.com/bsmi...
  • Page 9 Create a support account, register and manage your products, download updates, firmware images and release notes, and create technical support tickets. https://support.fortinet.com Fortinet Document Library Up-to-date versions of Fortinet publications for the entire family of Fortinet products. http://docs.fortinet.com Training Services Course descriptions, availability, schedules, and location of training programs in your area.
