Summary of Contents for Fortinet FortiVoice Gateway GS04

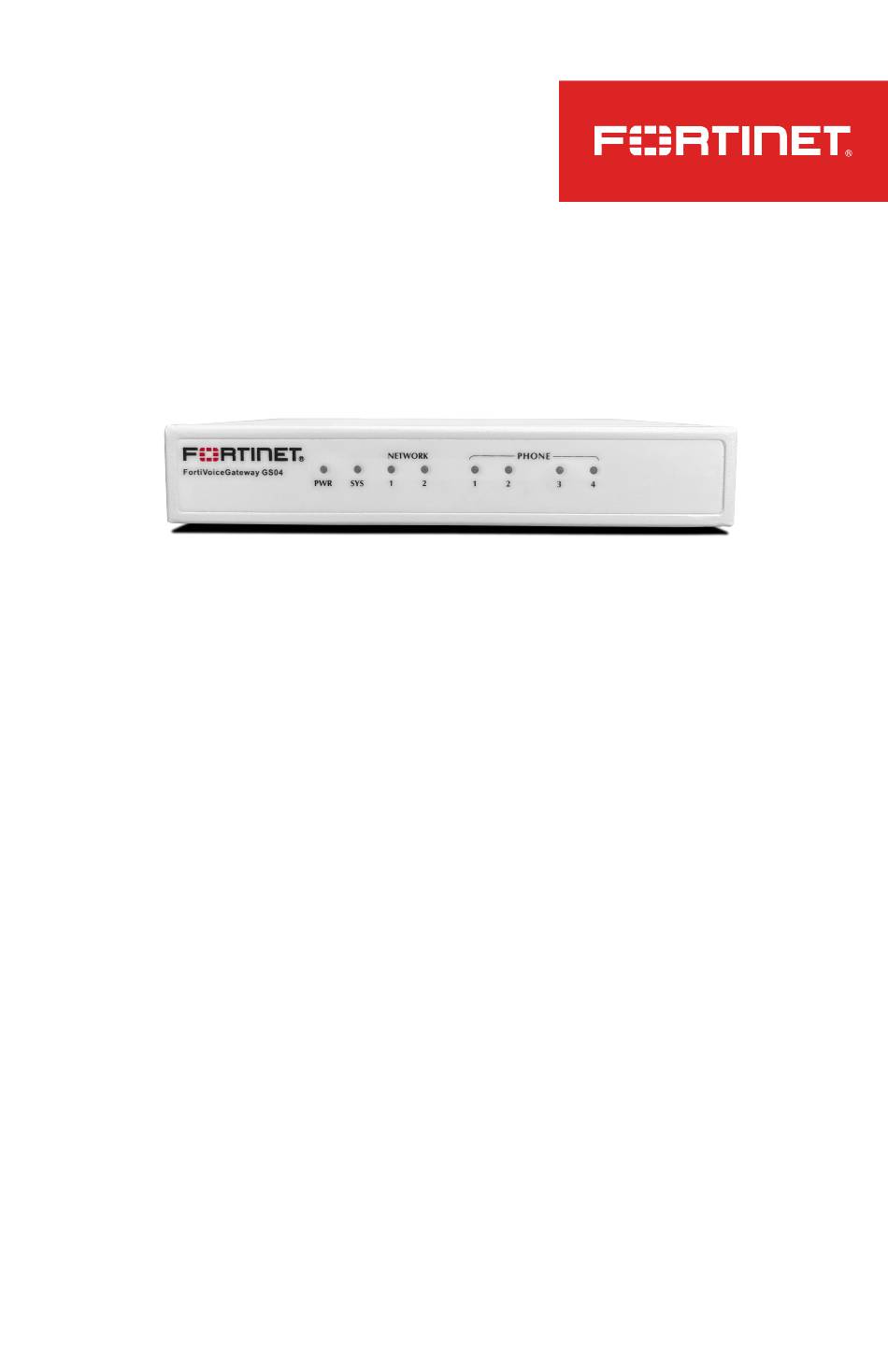

- Page 1 FortiVoice Gateway GS04 FVG-GS04 QuickStart Guide...
- Page 2 Fortinet. For absolute clarity, any such warranty will be limited to performance in the same ideal conditions as in Fortinet’s internal lab tests.
-
Page 3: Before You Begin
Before you begin Register your device to access FortiGuard updates, cloud management, firmware upgrades, technical support and warranty coverage. https://support.fortinet.com... - Page 4 Deployment Guide and Administration Guide. Customer Service For contracts, licensing, product registration, and account management, contact FortiCare Support at https://www.fortinet.com/support/contact. Technical Support To access our Resource Center, Professional Services and Technical Support Services, visit https://www.fortinet.com/support. Thank you for choosing Fortinet...
-
Page 5: Package Contents
Package Contents FortiVoice Gateway GS04 FVG-GS04 • 1 FortiVoice Gateway GS04 device • 1 QuickStart Guide • 1 plug adapter (Europe version) • 1 plug adapter (North America version) • 1 plug adapter (UK version) • 1 power adapter •... -
Page 6: Setup Options
Setup Options Port 1 Management Computer Ethernet Cable Configure the management computer to be on the same subnet as the internal interface as the FortiVoice Gateway unit: IP address: 192.168.1.x Netmask: 255.255.255.0... - Page 7 Speed (default): 115200 Data bits: Stop bits: Parity: None Console Cable Flow Control: None Console Port Management Computer In the terminal emulation program, log in using admin and no password.
-
Page 8: Desktop Installation

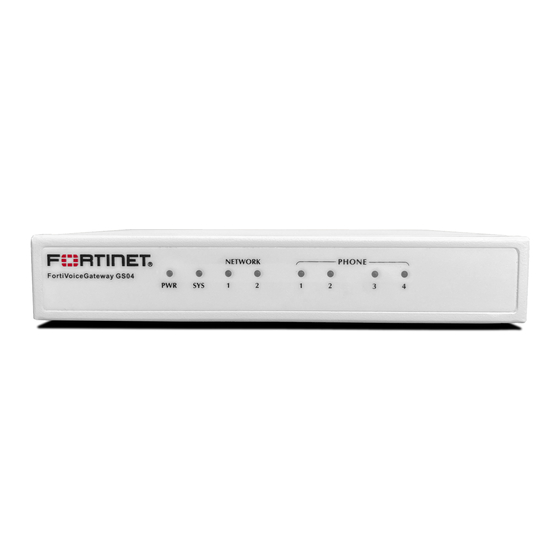

Desktop Installation 1.5 in 1.5 in 1.5 in 1.5 in 1. Place the FortiVoice Gateway unit on a flat, clean, and stable surface. 2. Make sure that there is at least 1.5 in (3.8 cm) of clearance on all sides of the unit to allow for adequate airflow. - Page 9 Front view of FVG-GS04 Green: The unit is on. Off: The unit is off. Green: The system is ready. Off: The system is not ready. NETWORK Green: The Ethernet port is ready. Flashing Green: The Ethernet port is in use. Off: No link is established.
- Page 10 Back view of FVG-GS04 This port is not in use. PHONE FXS ports 1 to 4. Type RJ-11. Connect to analog phones. Console Type RJ-45. Use for CLI management. Network Ethernet ports for connection to your network and the internet. Power Power connection 12V DC 1A Reset pinhole...
- Page 11 Cautions and Warnings Environmental specifications Ambient operating temperature: 0°C to 40°C Refer to specific Product Model Data Sheet for Environmental Specifications (Operating Temperature, Storage Temperature, Humidity, and Altitude). Référez à la Fiche Technique de ce produit pour les caractéristiques environnementales (Température de fonctionnement, température de stockage, humidité et l’altitude).
- Page 12 Fortinet.com...
