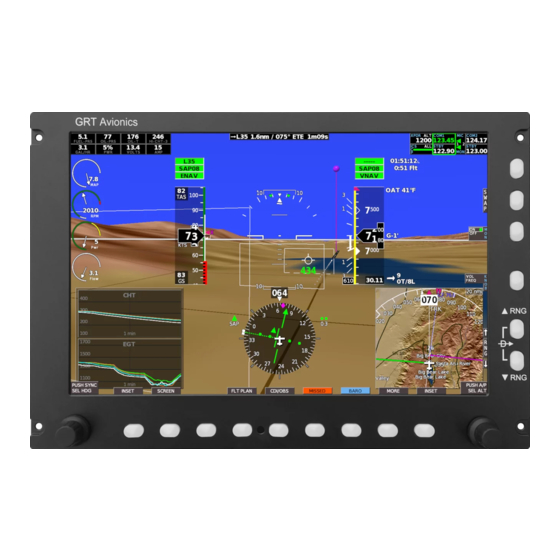

GRT Avionics Horizon Quick-Reference Pilot Card

Terms in CAPS = Softkey label. Terms in [ ] = option to be selected.
NEXT* = Possible multiple presses. Varies with installed equipment.
Flight Functions (from PFD screen)
Change Altimeter Setting: Turn Right Knob to adjust. Press knob to set.
Heading Bug: Turn Left Knob to adjust.
Altitude Bug: Press Right Knob > Turn knob to adjust > Press to set.
Dim Screen:
Press Left Knob > Turn knob to adjust > Press to set.
PFD Display Options
Show PFD, MAP or Engine: Press PFD, MAP or ENG softkey
Show HSI/Change PFD Screen View:
Disable PFD View Options:
Show FLIR: NEXT* > VIDEO [choose OVRL or FULL]
PFD Terrain Warning Colors:
Engine/Systems Display Features
Reset Fuel Quantity:
From ENG page > Press Left Knob > Turn to select
preset quantity -OR- Highlight ADJ > Press knob> Turn knob to enter
custom quantity.
Display Leaning Functions: From ENG page > LEAN [LEAN]
Change Data Display on ENG Page:
Set Time Frame for EGT/CHT Graphs:
[TIME] > Turn knob to set number of seconds
Press PFD softkey repeatedly.
NEXT* > PFD LOCK [ON]
NEXT* > SV [TERRAIN]
(From ENG) > NEXT > DATA [choose]
(From ENG) > Press Right Knob
Map, Flight Plans & Waypoints
Zoom Map: Press Left Knob > Turn knob
Change Map Format/Layout:
View Radar, Terrain, Winds:
View Winds Aloft:
(From MAP) > NEXT* > WINDS > UP/DOWN chngs alt.
Show Fixes & Intersections:
View Off-Screen Waypoints:
Show Nearest: (From MAP)> NEXT* > NEAR [choose]
Direct-To: (From MAP) > FLIGHT PLAN >
Direct-To from MAP: Press Right Knob > Turn knob to select waypoint>
> Press Right Knob to enter
Multi-Leg Flight Plan: (From MAP) > NEXT* > FLIGHT PLAN > SEQ MODE
> ADD > Use letter keys to enter waypoints. Press Right Knob [NEXT] to
move cursor. Turn/Press Right Knob [ENTER]. Repeat until all waypoints are
entered. EXIT to activate flight plan.
Activate Leg: Turn Right Knob to highlight last waypoint of leg. Press SET
LEG to activate leg.
Go Direct to a waypoint in a flight plan:
DIRECT. EFIS skips waypoints in between, then resumes flight plan.
View Details of waypoint on Flight Plan Screen:
highlight waypoint in list. Press RIGHT KNOB twice.
View Details of anything on MAP Screen:
highlight item on map. Press WPT DETAILS softkey.
on MAP screen for highlighted waypoints.
Press MAP softkey repeatedly.
(From MAP) > SHOW [choose]
(From MAP) > NEXT* > FIX [choose]
(From MAP) > NEXT* > SLEW
> use letter keys > ENTER
Highlight waypoint. Press GO
Turn Right Knob to
Press Right Knob. Rotate knob to
Note data box
