Linear Technology DC2100A Demo Manual page 16

Bi-directional cell balancer using the ltc3300-1 and the ltc6804-2

DEMO MANUAL DC2100A

Quick start proceDure

1. SYSTEM TREE VIEW

2. SELECTED BOARD INDICATOR

3. BOARD IDENTIFICATION DISPLAY

4. DATA DISPLAY TABS

5. CALIBRATION DATA WINDOW BUTTON

6. EVENT LOG WINDOW BUTTON

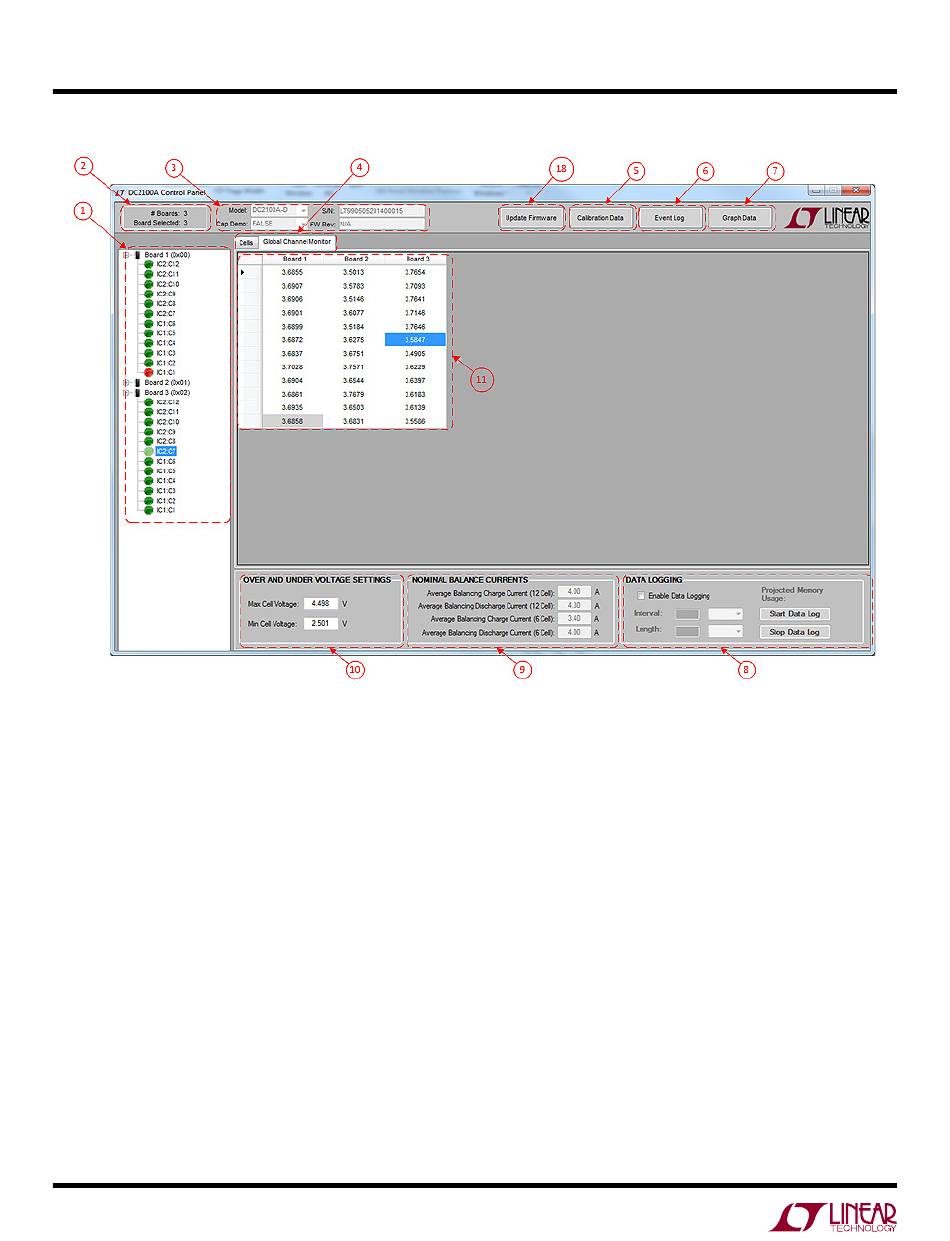

Figure 27. Control Panel Window – Global Channel Monitor View

7. GRAPH VIEW WINDOW BUTTON

8. DATA LOGGING CONTROLS

9. NOMINAL BALANCE CURRENTS DISPLAY

10. OVER AND UNDER VOLTAGE SETTING CONTROLS

11. CELL VOLTAGE DISPLAY GRID

18. FIRMWARE UPGRADE BUTTON

dc2100afa
