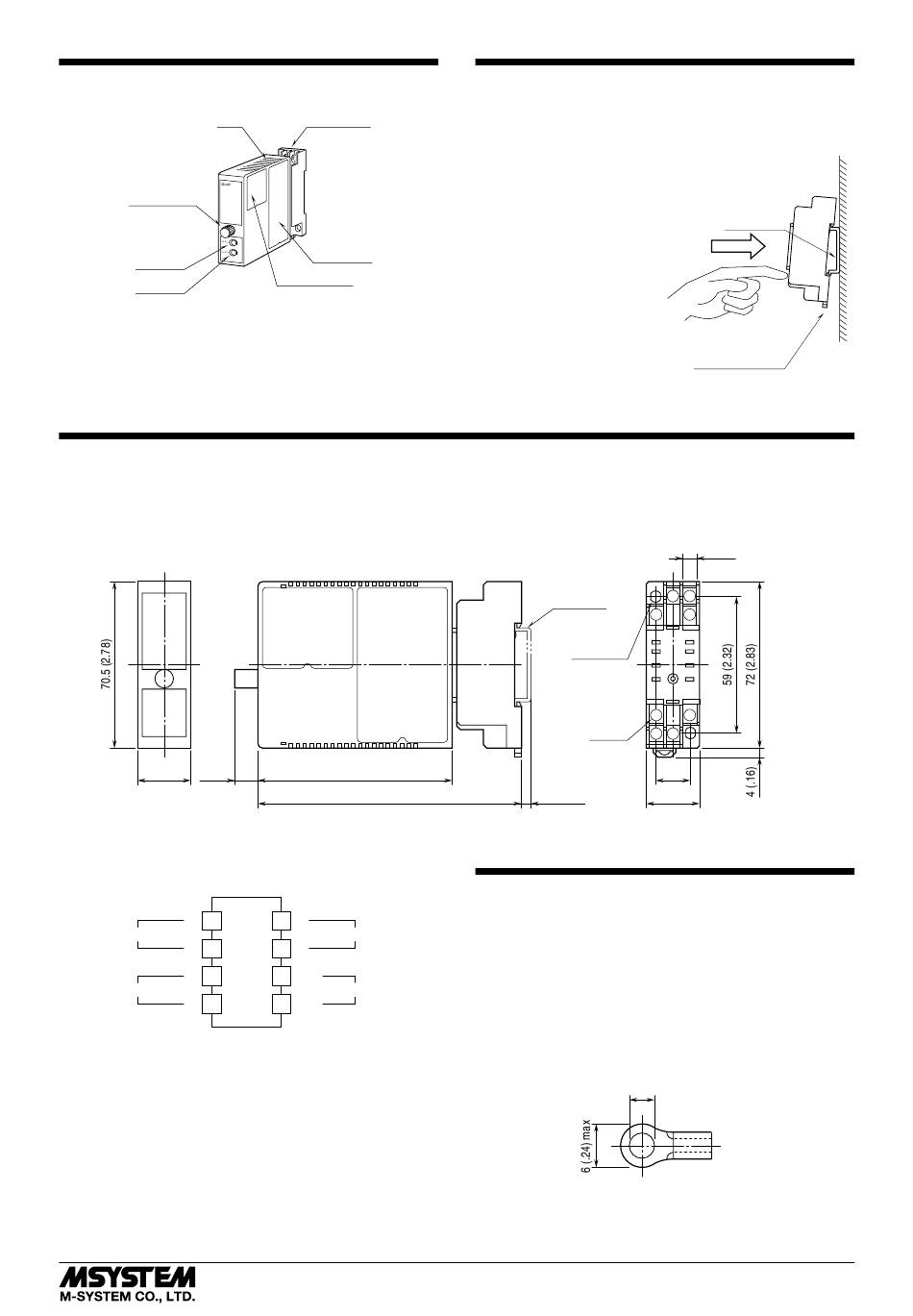

M-system Mini-M M2ADS Instruction Manual page 2

COMPONENT IDENTIFICATION
Body
Fixing Screw
Zero Adj.
Span Adj.
TERMINAL CONNECTIONS
Connect the unit as in the diagram below or refer to the connection diagram on the side of the unit.
■ EXTERNAL DIMENSIONS unit: mm (inch)
21.5 (.85) 10 (.39)
■ CONNECTION DIAGRAM
+ 1
INPUT 1
– 4
+ 5
INPUT 2
– 8
Base Socket
Connection
Diagram
Specifications
84 (3.31)
114 (4.49)
• When mounting, no extra space is needed between units.
9 +
OUTPUT
12 –
13
U(+)
POWER
14
V(–)
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp
INSTALLATION
Loosen the fixing screw at the front of the unit in order to
separate the body from the base socket.
■ DIN RAIL MOUNTING
Set the base socket so that
its DIN rail adaptor is at
the bottom. Position the
upper hook at the rear side
of base socket on the DIN
rail and push in the lower.
When removing the socket,
push down the DIN rail
adaptor utilizing a minus
screwdriver and pull.
■ WALL MOUNTING
Refer to "EXTERNAL DIMENSIONS."
DIN RAIL
35mm wide
2–4.2x5
(.17x.20)
MTG HOLE
6 (.24) deep
8–M3
SCREW
[4 (.16)]
WIRING INSTRUCTIONS
■ SCREW TERMINAL
Torque: 0.8 N·m
■ SOLDERLESS TERMINAL
Refer to the drawing below for recommended ring tongue
terminal size. Spade tongue type is also applicable.
Applicable wire size: 0.25 to 1.65 mm
Recommended manufacturer: Japan Solderless Terminal
MFG.Co.Ltd, Nichifu Co.,ltd
3.3 (.13) max
M2ADS
DIN Rail
35mm wide
Spring Loaded
DIN Rail Adaptor
6 (.23)
4 1
8 5
12 9
14 13
15 (.59)
23 (.91)
(AWG 22 to 16)
2
mm (inch)
EM-5088 Rev.7 P. 2 / 3
