Efka DA320G5351 Connection Diagrams

Dc 1550 list of parameters connection diagram timing diagrams
Hide thumbs
Table of Contents

Advertisement

Quick Links

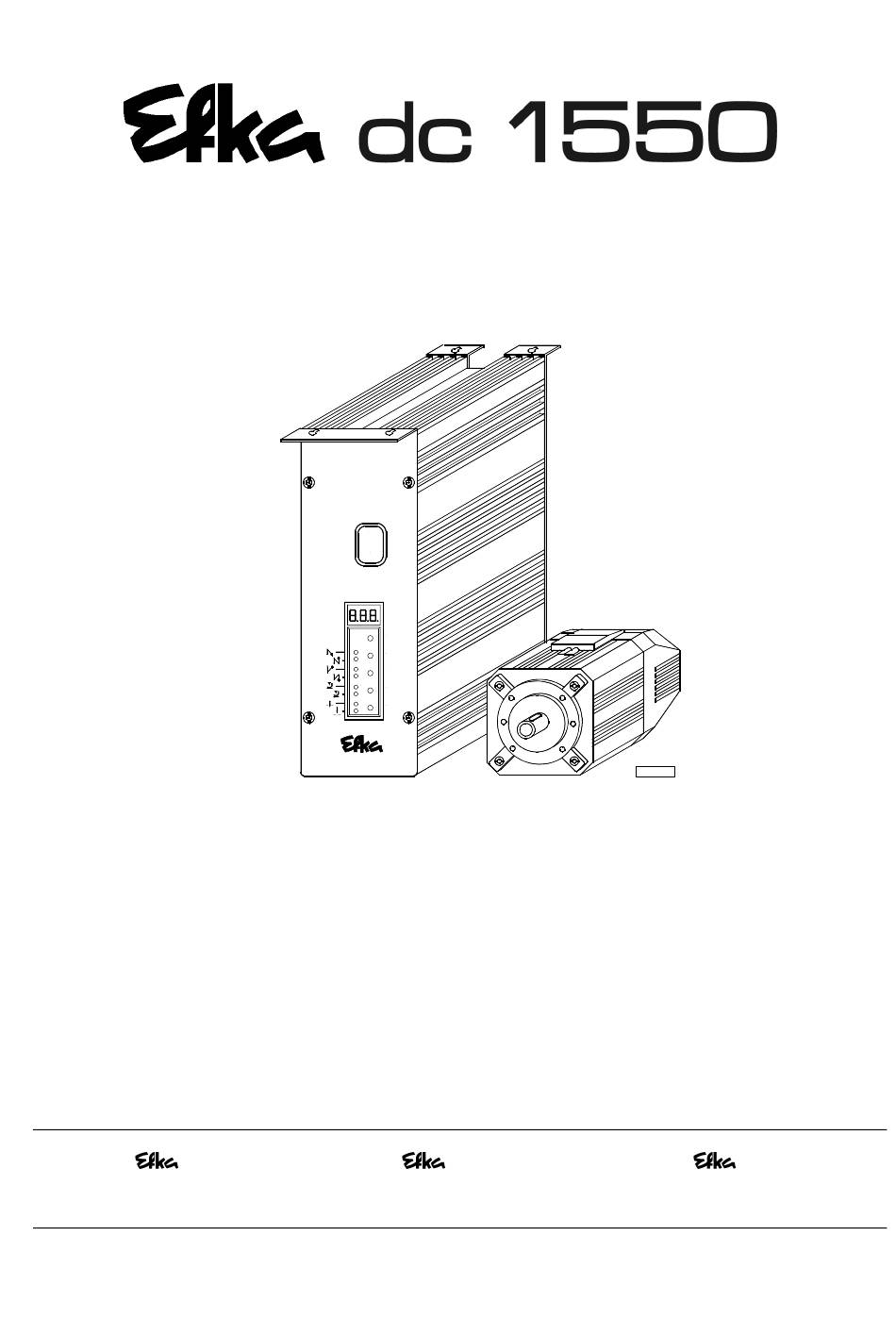

CONTROL
LIST OF PARAMETERS
CONNECTION DIAGRAM
TIMING DIAGRAMS
No. 402311
FRANKL & KIRCHNER
GMBH & CO KG
0
I
P
E
+
-
> >
English
EFKA OF AMERICA INC.
DA320G5351
K L23 34 a
EFKA ELECTRONIC MOTORS
SINGAPORE PTE. LTD.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DA320G5351 and is the answer not in the manual?

Questions and answers

Related Manuals for Efka DA320G5351

Summary of Contents for Efka DA320G5351

  • Page 1 CONTROL DA320G5351 > > K L23 34 a LIST OF PARAMETERS CONNECTION DIAGRAM TIMING DIAGRAMS No. 402311 English FRANKL & KIRCHNER EFKA OF AMERICA INC. EFKA ELECTRONIC MOTORS GMBH & CO KG SINGAPORE PTE. LTD.

  • Page 2: Table Of Contents

    EFKA DA320G5351 CONTENTS Page 1 Putting into Service 2 Setting and Putting into Service with the Aid of the Fast Installation Routine (SIR) 3 Operating Elements and Socket Connectors Position of Operating Elements and Displays Position of the Socket Connectors...

  • Page 3: Putting Into Service

    EFKA DA320G5351 1 Putting into Service Before putting the control into service, the following must be ensured, checked and/or adjusted: The correct installation of the drive, position transmitter and accompanying devices, if necessary If necessary, the correct adjustment of the direction of motor rotation using parameter 161...

  • Page 4: Operating Elements And Socket Connectors

    EFKA DA320G5351 3 Operating Elements and Socket Connectors 3.1 Position of Operating Elements and Displays P key Call or exit programming mode E key Start backtack single / double / off Enter key for modifications in the programming mode + key...

  • Page 5: Position Of The Socket Connectors

    EFKA DA320G5351 3.2 Position of the Socket Connectors Socket for commutation transmitter Socket for - Light barrier module LSM002 - Hall sensor module HSM001 - Pulse encoder IPG001 - EFKANET (Adapter cord 1113229 in case of multiple assignment) Socket for motor power supply...

  • Page 6: Connection Diagram

    EFKA DA320G5351 3.3 Connection Diagram Socket ST2 corresponds to socket A ATTENTION! When connecting the outputs, ensure that a total power of 96VA constant load will not be exceeded! in1 - Key for output B i10 - Backtack suppression/recall - LED righthand thread monitor...
  • Page 7 EFKA DA320G5351 POS2 OUT - Output for position 2 POS IN - Input for positions G1/G2 OUT - Output of generator impulses TXD/RXD - Serial transmission lines LSM IN - Possibility of connecting a light barrier module to socket B18/8...

  • Page 8: Connection Of A Sewing Light With Transformer

    EFKA DA320G5351 3.4 Connection of a Sewing Light with Transformer ATTENTION! efore opening the cover, turn power off! Switch off the control and remove mains plug from outlet Unscrew the control unit from the machine table Loosen 2 screws (A) each at the front and at the rear...

  • Page 9: Timing Diagrams

    EFKA DA320G5351 4 Timing Diagrams Trimming from full machine run POS.1 A/20 POS.2 A/21 t8 t1 A/35 A/34 (FA) A/37 (FSPL) A/36 (FW) A/27 (ML) A/28 0267/ FALAU F Mark Function Parameter Control V810 V820 Double start backtack with stitch correction...
  • Page 10 EFKA DA320G5351 Machine run with intermediate stop POS.1 A/20 POS.2 A/21 A/35 A/34 (FA) A/37 (FSPL) A/36 (FW) A/27 (ML) A/28 0267/ LAU FZW Mark Function Parameter Control V810 V820 Single start backtack Key S2 Key 1 Key 1 Single end backtack...
  • Page 11 EFKA DA320G5351 Trimming from intermediate stop POS.1 A/20 POS.2 A/21 A/35 A/34 (FA) A/37 (FSPL) A/36 (FW) A/27 (ML) A/28 0267/ FAZW Mark Function Parameter Control V810 V820 Single start backtack Key S2 Key 1 Key 1 Single end backtack...
  • Page 12 EFKA DA320G5351 End sensing by light barrier 0 3 4 5 6 1 POS.1 A/20 POS.2 A/21 A/35 A/34 (FA) A/37 (FSPL) A/36 (FW) A/27 (ML) A/28 0267/ EN D ELS Mark Function Parameter Control V810 V820 Start backtack Key S2...
  • Page 13 EFKA DA320G5351 Seam end by stitch counting 3 1 2 POS.1 A/20 POS.2 A/21 A/35 A/34 (FA) A/37 (FSPL) A/36 (FW) A/27 (ML) A/28 0267/ EN D EZAE Mark Function Parameter Control V810 V820 Start backtack Key S2 Key 1...
  • Page 14 EFKA DA320G5351 Machine run with ornamental backtack POS.1 A/20 POS.2 A/21 SAr t1 A/35 A/34 (FA) A/37 (FSPL) A/36 (FW) A/27 (ML) A/28 0267/ LAU FZVR Mark Function Parameter Control V810 V820 Double start backtack Key S2 Key 1 Key 1...
  • Page 15 EFKA DA320G5351 Machine run with high lift for walking foot POS.1 A/20 POS.2 A/21 A/35 A/34 (FA) A/37 (FSPL) A/36 (FW) A/27 (ML) A/28 (HP) A/32 (LHP) A/31 0267/ LAU FH U B Mark Function Parameter Control V810 V820 Double start backtack...

  • Page 16: List Of Parameters

    EFKA DA320G5351 5 List of Parameters 5.1 Operator Level Parameter Designation Unit Limits Preset for Ind. min 100Ω 220Ω 680Ω 1000Ω c2 Number of stitches of start backtack stitches forward c1 Number of stitches of start backtack stitches backward c3 Number of stitches of end backtack...
  • Page 17 EFKA DA320G5351 Operator Level Parameter Designation Unit Limits Preset for Ind. min 100Ω 220Ω 680Ω 1000Ω cF4 Number of stitches for bobbin thread stitches 25500 0 A ***) monitor parameter 195 = 4 At this setting, the following functions will...

  • Page 18: Technician Level

    EFKA DA320G5351 5.2 Technician Level Code no. 190 with control operation Code no. 1907 with control panel operation Parameter Designation Unit Limits Preset for Ind. min 100Ω 220Ω 680Ω 1000Ω SSc Number of softstart stitches stitches n1 Positioning speed 150 A**)
  • Page 19 EFKA DA320G5351 Technician Level Code no. 190 with control operation Code no. 1907 with control panel operation Parameter Designation Unit Limits Preset for Ind. min 100Ω 220Ω 680Ω 1000Ω LSE Thread trimming operation, when completing the seam after light barrier sensing On/Off...
  • Page 20 EFKA DA320G5351 Technician Level Code no. 190 with control operation Code no. 1907 with control panel operation Parameter Designation Unit Limits Preset for Ind. min 100Ω 220Ω 680Ω 1000Ω brt Braking power at machine standstill FkL 0 = Thread clamp Off Enabling thread clamp (pa.
  • Page 21 EFKA DA320G5351 Technician Level Code no. 190 with control operation Code no. 1907 with control panel operation Parameter Designation Unit Limits Preset for Ind. min 100Ω 220Ω 680Ω 1000Ω Sr5 Control program number with index and identification number. Upon pressing the appropriate key the data will be displayed in succession.
  • Page 22 EFKA DA320G5351 Technician Level Code no. 190 with control operation Code no. 1907 with control panel operation Parameter Designation Unit Limits Preset for Ind. min 100Ω 220Ω 680Ω 1000Ω iFA Activation angle of the thread trimmer degrees 359 56 A...

  • Page 23: Supplier Level

    EFKA DA320G5351 5.3 Supplier Level Code no. 311 with control operation Code no. 3112 with control panel operation Parameter Designation Unit Limits Preset for Ind. min 100Ω 220Ω 680Ω 1000Ω t1 Delay until speed release after start 50 A backtack...
  • Page 24 EFKA DA320G5351 Supplier Level Code no. 311 with control operation Code no. 3112 with control panel operation Parameter Designation Unit Limits Preset for Ind. min 100Ω 220Ω 680Ω 1000Ω = Sewing foot lifting with pedal in position 0 (neutral) = High lift for walking foot with speed limitation...
  • Page 25 EFKA DA320G5351 Supplier Level Code no. 311 with control operation Code no. 3112 with control panel operation Parameter Designation Unit Limits Preset for Ind. min 100Ω 220Ω 680Ω 1000Ω in7 Selection of input function on socket A/9 for 27 A...
  • Page 26 EFKA DA320G5351 Supplier Level Code no. 311 with control operation Code no. 3112 with control panel operation Parameter Designation Unit Limits Preset for Ind. min 100Ω 220Ω 680Ω 1000Ω cA Number of stitches until enabling of output A Function with parameter 250 = 5, 9...
  • Page 27 EFKA DA320G5351 Supplier Level Code no. 311 with control operation Code no. 3112 with control panel operation Parameter Designation Unit Limits Preset for Ind. min 100Ω 220Ω 680Ω 1000Ω hPt 0 = Roller remains lowered when enabling high lift for walking foot.
  • Page 28 EFKA DA320G5351 Supplier Level Code no. 311 with control operation Code no. 3112 with control panel operation 360° B18/7 POS2 ST2/21 Pa 271 POS1 ST2/20 POS2 ST2/21 Pa 271 POS1 ST2/20 POS1 ST2/20 Pa 271 POS2 ST2/21 POS1 ST2/20 Pa 271...
  • Page 29 EFKA DA320G5351 360° B18/7 POS2 ST2/21 Pa 271 POS1 ST2/20 POS2 ST2/21 Pa 271 POS1 ST2/20 POS1 ST2/20 Pa 271 POS2 ST2/21 POS1 ST2/20 Pa 271 POS2 ST2/21 = 0V = high 0256/ SEN - 2 OUT (position window) = npn transistor (emitter to 0V) is conductive.
  • Page 30 EFKA DA320G5351 Supplier Level Code no. 311 with control operation Code no. 3112 with control panel operation Parameter Designation Unit Limits Preset for Ind. min 100Ω 220Ω 680Ω 1000Ω LSP Function “machine run blockage” 0 = Function Off 1 = Blockage 1, without positioning...
  • Page 31 EFKA DA320G5351 Supplier Level Code no. 311 with control operation Code no. 3112 with control panel operation Parameter Designation Unit Limits Preset for Ind. min 100Ω 220Ω 680Ω 1000Ω AA1 Selectable power transistors for signal A1 0 = No function...
  • Page 32 EFKA DA320G5351 Supplier Level Code no. 311 with control operation Code no. 3112 with control panel operation Parameter Designation Unit Limits Preset for Ind. min 100Ω 220Ω 680Ω 1000Ω AA2 Selectable power transistors for signal A2 0 = No function...
  • Page 33 EFKA DA320G5351 Supplier Level Code no. 311 with control operation Code no. 3112 with control panel operation Parameter FA-E [ms] [ms] [St] [St] 100 100 10 100 0256/ B I LD 4 = Start of seam = Light barrier uncovered or covered at the seam end...
  • Page 34 EFKA DA320G5351 Supplier Level Code no. 311 with control operation Code no. 3112 with control panel operation Parameter LS-D FA-E [ms] [ms] [St] [St] 10 10 100 10 100 10 0256/ B I LD 3...
  • Page 35 EFKA DA320G5351 Supplier Level Code no. 311 with control operation Code no. 3112 with control panel operation Parameter Designation Unit Limits Preset for Ind. min 100Ω 220Ω 680Ω 1000Ω FLn 0 = Sewing foot is not lifted after power On...

  • Page 36: Error Displays

    EFKA DA320G5351 6 Error Displays General Information On the control On the V810 On the V820 Signification InF A1 InF A1 Pedal not in neutral position, when turning the machine on -StoP- blinking -StoP- blinking + Machine run blockage symbol display...

  • Page 37: Slide-In Strips For The V810/V820 Control Panels

    EFKA DA320G5351 7 Slide-in Strips for the V810/V820 Control Panels Slide-in strips for the V810 control panel Slide-in strips for the V820 control panel INSERT DELETE INSERT DELETE INSERT DELETE INSERT DELETE K L2 2 56 e Note When changing the setting of parameters 291 / 292, the V810 / V820 functions change as well, save function keys...
  • Page 38 3715 NORTHCREST ROAD – SUITE 10 – ATLANTA – GEORGIA 30340 PHONE: (770) 457-7006 – TELEFAX: (770) 458-3899 – email: efkaus@bellsouth.net ELECTRONIC MOTORS SINGAPORE PTE. LTD. 67, AYER RAJAH CRESCENT 05-03 – SINGAPORE 139950 PHONE: +65-67772459 – TELEFAX: +65-67771048 – email: efkaems@efka.net 1(1)-020804 A (402311 EN)
