Melnor AquaTimer 33015 User Instructions

FOR
AM
PM
RESET
33015 / 33016

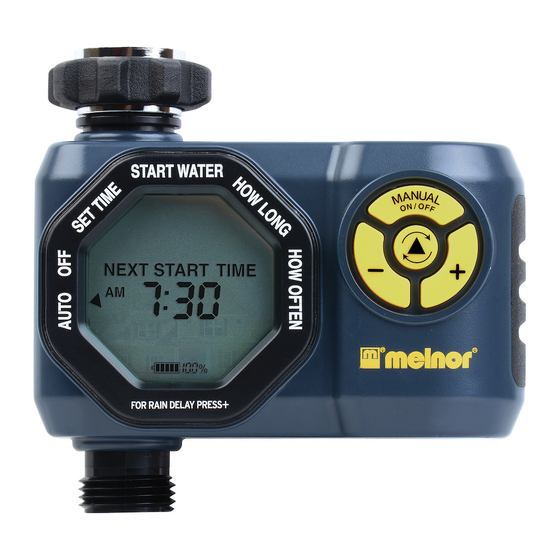

One-Zone Electronic Water Timer
User Instructions
FOR
EVERY
HRS
AM
DAY
PM
MIN
MANUAL
RESET
1
Battery Installation & Assembly
Batteries
Install 2 × AA alkaline batteries by removing the battery holder from the back of the timer and inserting the
■ ■
batteries as indicated. Replace the battery holder.
Note: Do not use rechargeable batteries. Recycle batteries after use.
■ ■
Installation
Attach the timer to an outside faucet and turn on the water. Leave the faucet on
■ ■
while the timer is attached.
Note: You may program the timer before attaching it to the faucet.
■ ■
We recommend replacing batteries when the indicator reaches
■ ■
■ ■
2

Setting the Clock

Touch any button to wake the timer.
■ ■
Using the Cursor Button , move the arrow to Set Time.
■ ■
Press the & buttons to adjust the clock to the current time.
■ ■
Press the Cursor Button again to set the time and move to the next setting, Start Water.
■ ■
NEXT START
AM
PM
EVERY
HRS
DAY
MIN
MANUAL
English
■
33015_INS_ENG_00
Manual Watering Button
Cursor Button
+/- Buttons
Battery Indicator
DELAY
FOR
EVERY
TIME
HRS
DAY
MIN
MANUAL
RESET
3

Select when to water

With the arrow pointing to Start Water, use the
■ ■
All remaining watering cycles during the day will be based on this time.
Press the Cursor Button
to move to the next setting.
■ ■
NEXT
AM
PM
4

Select How Long to Water

With the arrow pointing to How Long use the
■ ■
Cycles can be up to 360 minutes (6 hours) in duration.
■ ■
Press the Cursor Button
to move to the next setting.
■ ■
NEXT START TIME
AM
PM
5

Select How Often to Water

With the arrow pointing to How Often use the
■ ■
Watering can be as often as Every 1 Hours or little as Every 7 Days (once per week)
■ ■
Press the Cursor Button
to complete programming.
■ ■
The timer will enter Auto mode and the program will be active. Watering will begin with the
■ ■
next available watering time.
6

Auto Mode

After programming, the timer will be in Auto mode.
■ ■
The screen display will toggle between the current TIME and the NEXT START TIME. This will allow you to see at a
■ ■
glance what will happen next.
If the next watering cycle is more than 24 hours away, the NEXT START TIME will be displayed in days instead
■ ■
showing a time.
FOR
EVERY
NEXT START TIME
HRS
AM
DAY
PM
MIN
MANUAL
RESET
& buttons to select the first time of the day you want to water.
DELAY
FOR
EVERY
START
MANUAL
& buttons to select the length of each watering cycle.
DELAY
FOR
EVERY
HRS
DAY
MIN
MANUAL
RESET
& buttons to select the watering frequency.
DELAY
FOR
EVERY
START TIME
HRS
DAY
MIN
MANUAL
RESET
FOR
NEXT START TIME NEXT START TIME
HRS
AM
DAY
PM
MIN
PM
MANUAL
RESET
MANUAL
EVERY
HRS HRS
DAY
DAY
MIN MIN
RESET
