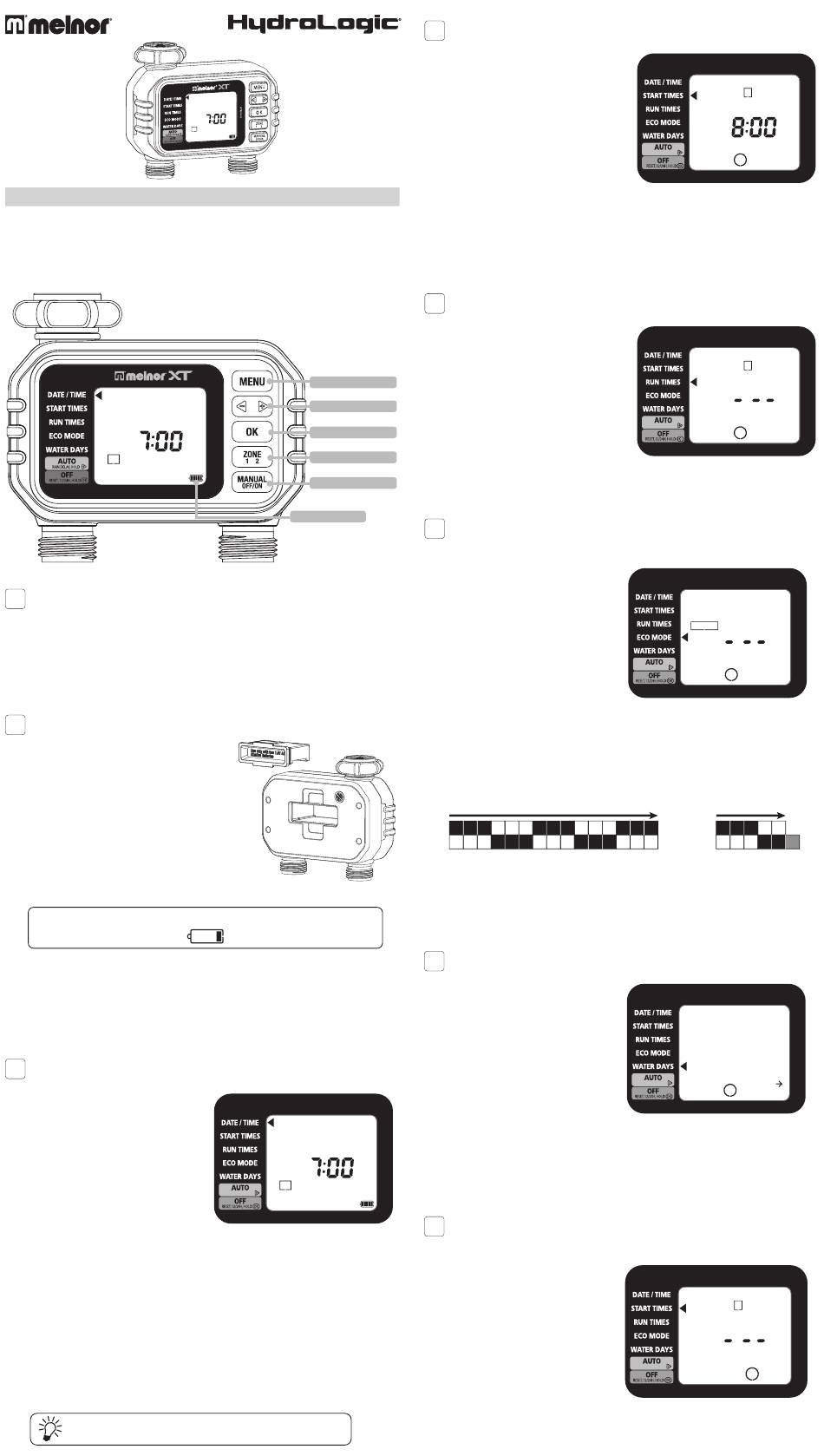

Melnor Hydrologic 77100 User Instructions

Advanced Two-Zone Electronic Water Timer
User Instructions
CYCLE
AUTO
A B C D
MANUAL
NEXT START TIME
WATER DAYS PAUSE
AM
PM
TODAY
SU MO TU WE
RESET
1
ZONE
1
Understanding Zones
This is a two zone timer allowing you to water two different areas from the
■
same faucet.
Each zone can be programmed with up to four different start times.
■
You can use the PLANNING TABLE provided on the back of this sheet to
■
help organize your watering schedule for each zone.
2
Battery Installation & Assembly
Remove the battery holder from the back
■
of the Timer Control Unit. Insert two AA
alkaline batteries (Do not use rechargeable
batteries) as indicated on the battery holder.
Replace the battery holder, making sure that
it is firmly and securely placed in the Timer
Control Unit.
Note: Do not use your timer when the air
■
temperature is below 40°F (4.5° C). When
storing your timer, be sure it is in a dry place
and protected from frost.
We recommend replacing batteries when the indicator reaches
Installation of the Timer
Attach the timer to an outside faucet and turn on the water. The water must
■
be left on while the timer is attached to the faucet for your timer to operate.
Note: You may choose to program your timer before or after attaching it to
■
the faucet.
3
SET DATE/TIME: "Set Current Time and Day"
The Water Timer default setting is a
■
12-hour mode (AM/PM). To ensure
correct timing, look for either AM
or PM to the left of the time. To
switch between 12-hour (AM/PM)
and 24-hour (military time), under
OFF hold the OK BUTTON for 10
seconds. 12-hour mode shows AM
or PM while 24-hour mode does
not. Note: Changing time mode will
erase all programs.
Before setting your watering times, you must first set the current time and
■
day of the week. When the batteries are first installed, the arrow in the
screen will point to DATE/TIME. If it is not in that position, press the MENU
BUTTON until the arrow is pointing to DATE/TIME.
On your screen, a flashing box will appear around the SU. Simply set the
■
timer to the current day by pressing the -/+ BUTTON until the square is on
the correct day. Once the correct day has been indicated, press the OK
BUTTON.
To set the time, press the -/+ BUTTON until the correct time appears on
■
the screen, and then press OK BUTTON.
Press the MENU BUTTON to move to START TIMES.
■
Hold the -/+ BUTTONS to advance settings more quickly.
CYC L E
A U TO
E CO
A B C D
MAN UA L
T I M E D EL AY
N E XT ST ART
E V E RY
DA YS PA USE
WA TER
H R S
AM
DA Y
P M
M I N
TO D AY
FR SA
W E TH
SU MO TU
R E S E T
1 2
ZONE
77100
English
■
77100_INS_ENG_01
Menu Button
ECO
-/+ Button
DELAY
EVERY
OK Button / Select ABCD
HRS
DAY
MIN
Zone 1 2 Button
TH FR SA
2
Manual Watering Button
Battery Indicator
AUTO
MANUAL
NEXT START
WATER DAYS
AM
PM
TODAY
SU MO TU
RAIN DELAY, HOLD RESET
1
ZONE
4
START TIMES: "What time-of-day do you want to water?"
You can select up to four
■
independent start times (CYCLE
A, B, C, D). With the arrow pointing
to START TIMES on your screen,
CYCLE A should be highlighted, use
the -/+ BUTTON to select the first
watering time.
If you want to set another START
■
TIME, press OK BUTTON to move
to CYCLE B. Repeat the process
above to set the next START TIME.
You may select up to four START TIMES.
When you have set all desired START TIMES, press
■
the MENU BUTTON to move to RUN TIMES.
Note: You will see ZONE 1 highlighted at the bottom of the screen; program
ZONE 1 before moving to ZONE 2.
5
RUN TIMES: "Set the length of each watering cycle."
With the arrow pointing to RUN
■
TIMES, use the -/+ BUTTON to
select the length of each watering
cycle. After setting the RUN TIME you
want to water during a selected cycle,
press the OK BUTTON to move to
the next cycle. Repeat until RUN
TIMES have been set for each cycle.
RUN TIMES can be set for up to 360
■
minutes (6 hours) for each watering
cycle. The Cycle length cannot overlap the next START TIME.
Note: You can only select Watering Cycles if you have set a start time in
Step 4 above.
6
ECO MODE: "Reduce runoff and conserve water."
ECO MODE reduces runoff by creating pauses during watering cycles.
■
The pause allows water to soak
into the soil.
This is an optional setting. To
■
skip this step, press the MENU
BUTTON to move to WATER
DAYS.
Setting ECO MODE: check to
■
make sure the arrow on the
screen is pointing to ECO MODE.
The word WATER should be
highlighted, use the -/+ BUTTONS to select the watering duration then
press the OK BUTTON.
With the word PAUSE flashing, use the -/+ BUTTONS to set the pause
■
duration.
Example: ECO MODE setting for 3 minute watering, 3 minute pause
■
15-Minute Cycle
ON
PAUSE
Note: Once you create ECO MODE settings, it applies to all programmed
watering cycles (Cycle A,B,C,D) on Zone 1. Zone 2 can use different ECO
MODE settings.
When you have set the desired ECO MODE times, press the MENU
■
BUTTON to move to WATER DAYS.
7
WATER DAYS: "What days do you want to water?"
Check to be sure that the arrow on
■
the screen is pointing to WATER
DAYS. With this setting, you can
select specific days to water or an
interval period of the day when
watering will occur.
To set the watering day, use the -/+
■
BUTTONS to select the day-of-the-
week you wish to water. Press the
OK BUTTON when the desired
day-of-the-week is highlighted on
CYCLE
ECO
A B C D
the screen. You can select as many days as you like. The days selected
TIME DELAY
will have a square around them.
PAUSE EVERY
HRS
DAY To water at preset intervals, press the + BUTTON to navigate past the days
■
MIN
of the week. Press the -/+ BUTTONS to set the time period (EVERY 1 DAY
TH FR SA
WE
through EVERY 7 DAY(s).
2
8
SETTING ANOTHER ZONE: "Keep your plants watered
on separate cycles."
When you have set START
■
TIMES, RUN TIMES, ECO
MODE, and WATER DAYS
for Zone 1, press the MENU
BUTTON back to START TIMES.
Press the ZONE 1 2 BUTTON to
■
select Zone 2, and repeat steps
4-7 above.
When all desired zones are set,
■
press the MENU BUTTON to
enter AUTO mode.
CYCLE
AUTO
ECO
A B C D
MANUAL
NEXT START TIME DELAY
WATER DAYS PAUSE EVERY
AM HRS
PM DAY
TODAY MIN
SU MO TU WE TH FR SA
RAIN DELAY, HOLD RESET
1 2
ZONE
CYCLE
CYCLE
AUTO
ECO
A B C D
MANUAL
NEXT START TIME DELAY
WATER DAYS PAUSE EVERY
AM HRS
PM DAY
TODAY MIN
SU MO TU WE TH FR SA
RAIN DEL AY , HOLD
RESET
1 2
ZONE
AUTO CYCLE
ECO
A B C D
MANUAL
NEXT START TIME DELAY
WATER DAYS PAUSE EVERY
HRS
AM
PM DAY
MIN
TODAY
SU MO TU WE TH FR SA
RAIN DELAY, HOLD RESET
1 2
ZONE
5-Minute Cycle
ON
PAUSE
AUTO CYCLE
ECO
A B C D
MANUAL
NEXT START TIME DELAY
WATER DAYS PAUSE EVERY
HRS
AM
PM DAY
MIN
TODAY
SU MO TU WE TH FR SA
RAIN DELAY, HOLD RESET
1 2
ZONE
CYCLE
AUTO
ECO
A B C D
MANUAL
NEXT START TIME DELAY
WATER DAYS PAUSE EVERY
AM HRS
PM DAY
TODAY MIN
SU MO TU WE TH FR SA
RAIN DELAY, HOLD RESET
1 2
ZONE
