Melnor HydroLogic 73015 User Instructions

WATER DAY
CODE :
NEXT START
WATER
AM
PM
TODAY
SU MO

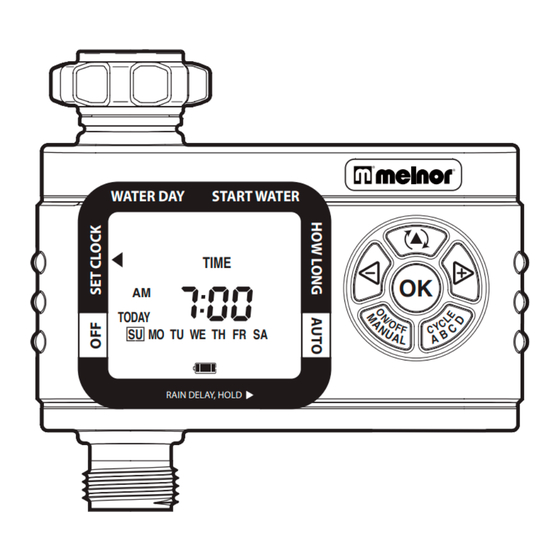

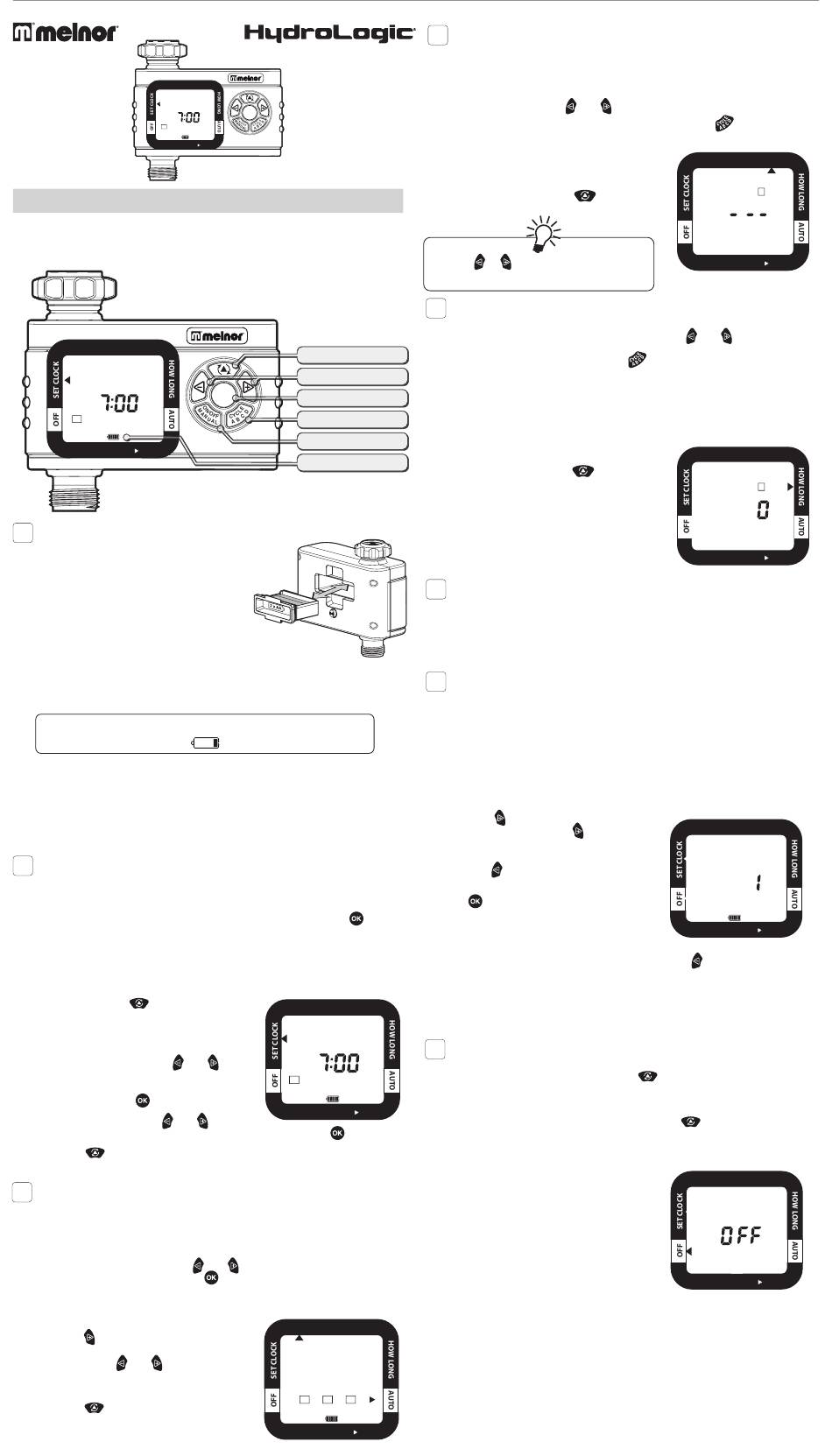

Advanced One-Zone Electronic Water Timer
User Instructions
WATER DAY START WATER
CODE :
CYCLE
NEXT START TIME A B C D
WATER DAY EVERY DELAY
AM HRS
PM DAY
TODAY MIN
SU MO TU WE TH FR SA
MANUAL
RESET
RAIN DELAY, HOLD
1
Battery Installation & Assembly
Remove the battery holder from the back
n
of the Timer Control Unit. Insert two AA
alkaline batteries (Do not use rechargeable
batteries) as indicated on the battery holder.
Replace the battery holder, making sure
that it is firmly and securely placed in the
Timer Control Unit.
NOTE: Do not use your timer when the air
n
temperature is below 40°F (4.5° C). When
storing your timer, be sure it is in a dry
place and protected from frost.
We recommend replacing batteries when the indicator reaches
Installation of the Timer
Attach the timer to an outside faucet and turn on the water. The water must
n
be left on while the timer is attached to the faucet for your timer to operate.
NOTE: You may choose to program your timer before or after attaching it
n
to the faucet.
2
SET CLOCK: "Set Current Time and Day"
The Water Timer default setting is a 12-hour mode (AM/PM). To ensure
n
correct timing, look for either AM or PM to the left of the time. To switch
between 12-hour (AM/PM) and 24-hour (military time), hold the
for 5 seconds. 12-hour mode shows AM or PM while 24-hour mode
does not. Note: Changing time mode will erase all programs.
Before setting your watering times, you must first set the current time and
n
day of the week. When the batteries are first installed, the arrow in the
screen will point to CLOCK. If it is not in that
position, press the button until the arrow
is pointing to CLOCK.
On your screen, a flashing box will appear
n
around the SU. Simply set the timer to the
current day by pressing the
on the touchpad until the square is on the
correct day. Once the correct day has been
indicated, press the button.
To set the time, press the
n
until the correct time appears on the screen, and then press
button (at the top of the touch pad) to move to WATER
Press the
n
DAY.
3
WATER DAY: "What days do you want to water?"
Check to be sure that the arrow on the screen is pointing to WATER DAY.
n
With this setting, you can select specific days to water or an interval period
of the day when watering will occur.
To set the watering day, use the
n
week you wish to water. Press the
week is highlighted on the screen. You can select as many days as you
like. The days selected will have a square around them.
To water at preset intervals,
n
press the button on the
buttonpad to navigate past the days of the
week. Press the and buttons to set the
time period (EVERY 1 DAY through EVERY
7 DAY(s) ).
button to move to START
Press the
n
WATER.
START WATER
CYCLE
TIME A B C D
DAY EVERY DELAY
OK
HRS
DAY
MIN
TU WE TH FR SA
MANUAL
RESET
RAIN DELAY, HOLD
73015
English
n
73015_INS_ENG_02
Toggle Button
+/- Buttons
OK
OK Button
Cycle Button
Manual Watering Button
Battery Indicator
WATER DAY
CODE :
NEXT START
WATER DAY
AM
and buttons
PM
TODAY
SU MO TU WE
RESET
RAIN DELAY, HOLD
and buttons
and buttons to select the day-of-the-
button when the desired day-of-the-
WATER DAY
CODE :
NEXT START
WATER DAY
SU MO TU WE
RESET
RAIN DELAY, HOLD
4
START WATER: "What time-of-day do you want to
water?"
You can select up to four independant start times (CYCLE A, B, C, D).
n
With the arrow pointing to Start Water on your screen, CYCLE A should
be highlighted, use the
If you want to set another START WATER time, press
n
CYCLE B. Repeat the process above to
set the next START WATER time. You may
select up to four START WATER times.
When you have set all desired START
n
WATER times, press the
move to HOW LONG.
Hold the or
more quickly.
5
HOW LONG: "Set the length of each watering cycle."
With the arrow pointing to HOW LONG, use the
n
the length of each watering cycle. After setting HOW LONG you want to
water during a selected cycle, press
until HOW LONG has been set for each cycle.
HOW LONG can be set for up to 360 minutes (6 hours) for each watering
n
cycle. The Cycle length cannot overlap the next START WATER time.
Note: You can only select Watering Cycles if you have set a start time in
n
Step 4 above.
When you have set all desired START
n
WATER times, press the
enter AUTO Mode.
6
AUTO MODE: "Your timer is ready to go."
In AUTO Mode, your timer will run the watering program you have entered.
n
The screen display will alternate between showing the Current Time and
n
the Next Watering Cycle.
7
RAIN DELAY: "Prevent watering when rain is in the
forecast."
If there is rain in the forecast, you can temporarily suspend your
n
watering program for up to 7 days using the RAIN DELAY feature. After
the selected delay has ended, your watering program will automatically
resume
To set the Rain Delay, check to make sure the arrow on the screen is
n
pointing to AUTO.
Hold the
n
appears. Now press the
set the duration of the delay. You can
reduce or deactivate the delay period
with the
Once the delay time is selected, press
n
the button and wait for the number to
stop flashing.
button
All other functions, including MANUAL
n
WATERING and OFF are on hold during
RAIN DELAY. To cancel RAIN DELAY, press the
is set to "0".
Note: In the RAIN DELAY mode, the screen will
n
alternate between the current time and the
START WATER
remaining delay time.
CYCLE
TIME A B C D
8
OFF MODE: "Stop watering for an extended period."
EVERY DELAY
HRS
DAY
MIN
To stop watering indefinitely, press the
n
TH FR SA
screen points to OFF. The timer will not water while in this mode. The
MANUAL
screen will display the word OFF.
To start watering automatically again, press the
n
.
on the screen points to the AUTO. The program will begin watering at the
next previously scheduled START WATER Time.
START WATER
CYCLE
A B C D
DELAY
HRS
DAY
MIN
TH FR SA
MANUAL
and buttons to select the first watering time.
button to
buttons to advance settings
to move to the next cycle. Repeat
button to
button until the word DELAY
button to
button.
button until the arrow on the
to move to
WATER DAY START WATER
CODE :
CYCLE
NEXT START TIME
A B C D
WATER DAY EVERY DELAY
AM HRS
DAY
PM
TODAY MIN
SU MO TU WE TH FR SA
MANUAL
RESET
RAIN DELAY, HOLD
and buttons to select
WATER DAY START WATER
CODE :
CYCLE
NEXT START TIME
A B C D
WATER DAY EVERY DELAY
HRS
AM
DAY
PM
TODAY MIN
SU MO TU WE TH FR SA
MANUAL
RESET
RAIN DELAY, HOLD
WATER DAY START WATER
CODE :
CYCLE
NEXT START TIME
A B C D
WATER DAY EVERY DELAY
AM HRS
DAY
PM
TODAY MIN
SU MO TU WE TH FR SA
MANUAL
RESET
RAIN DELAY, HOLD
button until DELAY
button until the arrow
WATER DAY START WATER
CODE :
CYCLE
NEXT START TIME A B C D
WATER DAY EVERY DELAY
HRS
AM
PM DAY
TODAY MIN
SU MO TU WE TH FR SA
MANUAL
RESET
RAIN DELAY, HOLD
