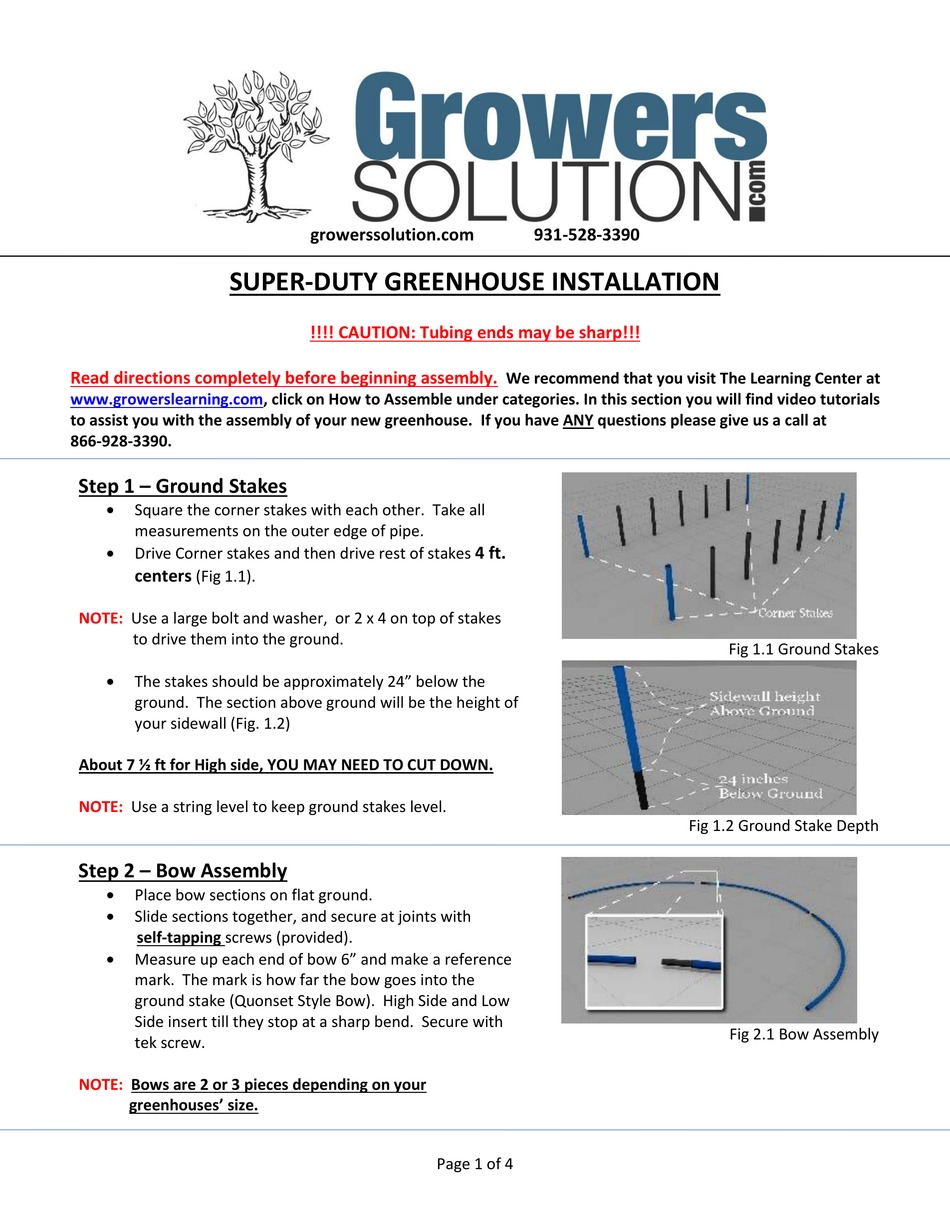

SUPER-DUTY GREENHOUSE INSTALLATION
Read directions completely before beginning assembly.
www.growerslearning.com, click on How to Assemble under categories. In this section you will find video tutorials
to assist you with the assembly of your new greenhouse. If you have ANY questions please give us a call at
866-928-3390.
Step 1 – Ground Stakes
Square the corner stakes with each other. Take all
measurements on the outer edge of pipe.
Drive Corner stakes and then drive rest of stakes
centers
(Fig 1.1).
NOTE:
Use a large bolt and washer, or 2 x 4 on top of stakes
to drive them into the ground.
The stakes should be approximately 24" below the
ground. The section above ground will be the height of
your sidewall (Fig. 1.2)
About 7 ½ ft for High side, YOU MAY NEED TO CUT DOWN.
NOTE:
Use a string level to keep ground stakes level.
Step 2 – Bow Assembly
Place bow sections on flat ground.
Slide sections together, and secure at joints with
self-tapping screws (provided).
Measure up each end of bow 6" and make a reference
mark. The mark is how far the bow goes into the
ground stake (Quonset Style Bow). High Side and Low
Side insert till they stop at a sharp bend. Secure with
tek screw.
NOTE:
Bows are 2 or 3 pieces depending on your
greenhouses' size.
growerssolution.com
!!!! CAUTION: Tubing ends may be sharp!!!
4 ft.
Page 1 of 4
931-528-3390
We recommend that you visit The Learning Center at
Fig 1.1 Ground Stakes
Fig 1.2 Ground Stake Depth
Fig 2.1 Bow Assembly
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Growers SOLUTION SUPER-DUTY
Summary of Contents for Growers SOLUTION SUPER-DUTY
- Page 1 931-528-3390 SUPER-DUTY GREENHOUSE INSTALLATION !!!! CAUTION: Tubing ends may be sharp!!! Read directions completely before beginning assembly. We recommend that you visit The Learning Center at www.growerslearning.com, click on How to Assemble under categories. In this section you will find video tutorials to assist you with the assembly of your new greenhouse.
- Page 2 Step 3 – Bow Installation After bows have been assembled, raise upright and place ends in ground stakes (Fig 3.1) and attach with tek screws. NOTE: Place swaged (crimped) ends on the same side of the Greenhouse. This will keep the bows even, and lined Up.
- Page 3 Step 7 – Wire Lock NOTE: Not all houses use wire lock. Some use batten tape and staples. Attach the Wire Lock Channel on the top of first bow and last bow using tek screws (included) every 18”. Attach the Wire Lock Channel on either the head or base boards (depending on whether you are using roll- Fig 7.1...
- Page 4 sides. Lay film over the Wire Lock Channel, and fasten the plastic into the channel by placing the wiggle wire into the channel on top of the plastic (Fig 8.1). watch the video online NOTE: Please for more information. Additional Information Concerning Weather During windy / stormy / winter conditions it is mandatory to roll sides down and wire lock ends.
