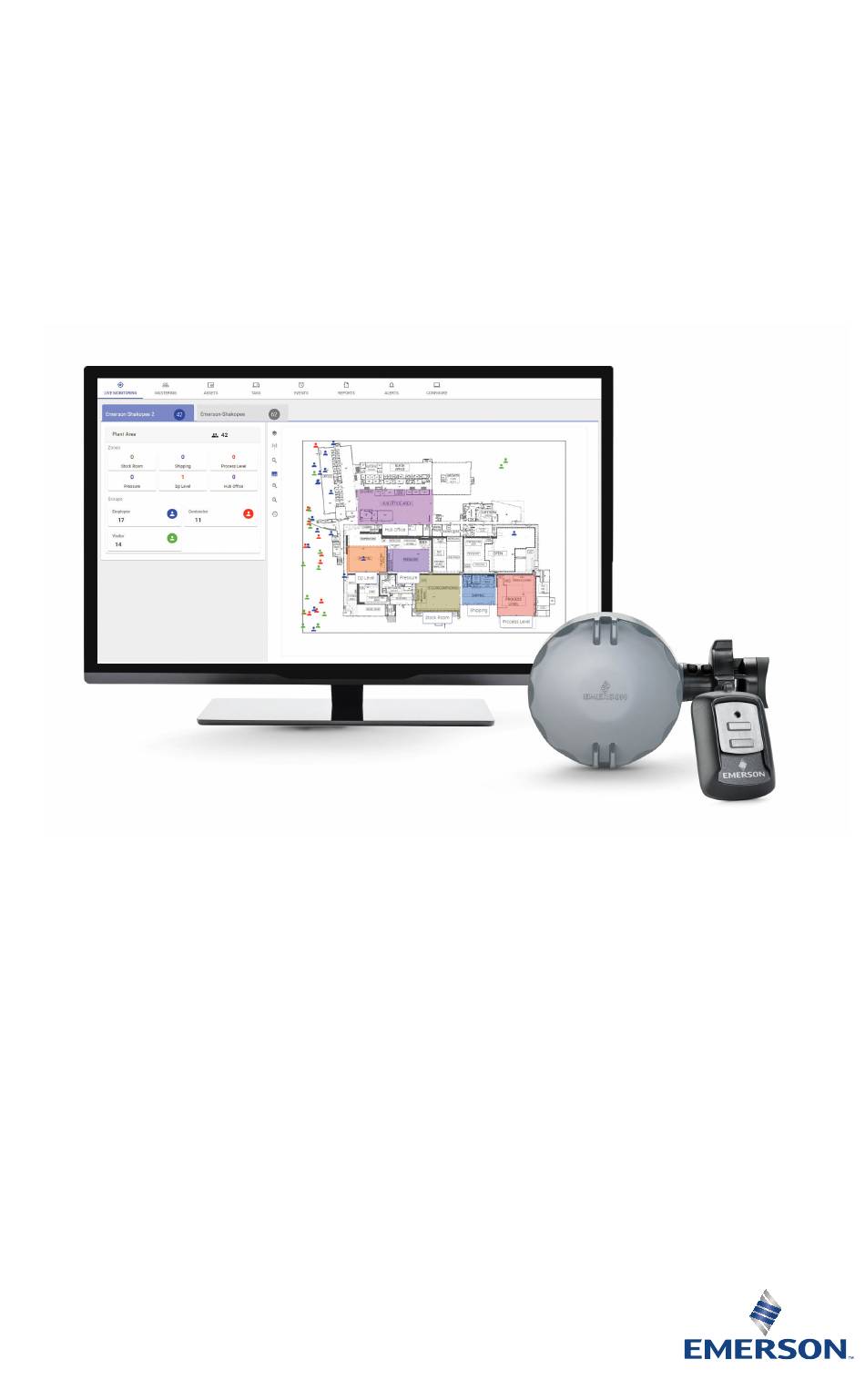

Quick Start Guide
00825-0100-4542, Rev AA
February 2020
Emerson Location Awareness
®
with WirelessHART
Protocol

Advertisement

loading

  Related Manuals for Emerson Location Awareness

No related manuals

  Summary of Contents for Emerson Location Awareness

  • Page 1 Quick Start Guide 00825-0100-4542, Rev AA February 2020 Emerson Location Awareness ® with WirelessHART Protocol...
  • Page 2 Read this Quick Start Guide before working with the product. For personal and system safety and for optimal product performance, understand the contents completely before installing, using, or maintaining this product. Emerson has two toll-free assistance numbers and one international number. NOTICE Customer Central 1 800 999 9307 (7:00 a.m.
  • Page 3: Table Of Contents

    February 2020 Quick Start Guide NOTICE Installation considerations Only qualified personnel should perform the installation. Verify the operating atmosphere of the transmitter is consistent with applicable hazardous area certifications. Reference the Product Certifications section of this manual for information regarding hazardous certification. This Location Anchor must be installed to ensure a minimum antenna separation distance of 20 cm (8 in.) from all persons.
  • Page 4 Quick Start Guide February 2020 Product certifications......................... 24 Declaration of Conformity......................29 Emerson.com...
  • Page 5: Overview

    February 2020 Quick Start Guide Overview Location Awareness solution components Location Anchor Location Personnel Tag Quick Start Guide...
  • Page 6 Quick Start Guide February 2020 ™ Plantweb Insight Location application Product recycling/disposal Recycling of equipment and packaging should be taken into consideration. The product and packaging should be disposed of in accordance with local and national legislation. Emerson.com...
  • Page 7: Installation Plantweb Insight And Plantweb Insight Location Application

    February 2020 Quick Start Guide Installation Plantweb Insight and Plantweb Insight Location application Install Plantweb Insight and Plantweb Insight Location application Follow instructions in the Plantweb Insight Quick Start Guide. Quick Start Guide...
  • Page 8: Location Anchor Configuration

    AMS Device Manager AMS Device Manager can connect to devices directly, using a HART modem, or remotely using the Gateway. To configure the Emerson Location Anchor, double click (or right click and select Configure/Setup) on the device icon that will appear below either the HART modem or Gateway connection tree.
  • Page 9 February 2020 Quick Start Guide Device network configuration To communicate with the Gateway (and ultimately the host system), the Location Anchor must be configured to communicate with the wireless network. Using a Field Communicator or AMS Device Manager, enter the network ID and join key so they match the network ID and join key of the Gateway and other devices in the network.
  • Page 10 Power down After the Location Anchor has been configured, turn off power to the electronics by moving the power switch to off and reinstall the cover. Power should only be turned back on when the anchor is ready for commissioning. Emerson.com...
  • Page 11: Installation Location Anchor

    20 cm from all persons. Considerations General The Emerson Location Awareness solution is comprised of the Emerson Location Tag, Emerson Location Anchor, Emerson Wireless Gateways, and Plantweb Insight Location application. Emerson Location Awareness provides the user with safety-focused monitoring of their most valued resource - their people.
  • Page 12 Location Anchor. Electrical Battery The Emerson Location Anchor is self-powered. The battery is a single “D” size primary lithium/thionyl chloride battery. Each battery contains approximately 5.0 grams of lithium. Under normal conditions, the battery materials are self-contained and are not reactive as long as the battery is maintained.
  • Page 13 February 2020 Quick Start Guide 4. Good connectivity can also be achieved in other orientations. The antenna should also be approximately 1 m (3 ft.) from any large structure, building, or conductive surface, and a minimum of 2m (6 ft.) and a max of 4m (13 ft.) from the ground to allow for clear communication to other devices.
  • Page 14: Location Anchor Commissioning

    This Location Anchor must be installed to ensure a minimum antenna separation distance of 20 cm from all persons. Verify operation There are three methods available to verify operation: • Field Communicator • Gateway’s integrated web interface • AMS Suite Wireless Configurator or AMS Device Manager Emerson.com...
  • Page 15 February 2020 Quick Start Guide If the Emerson Location Anchor was configured with the network ID and join key, and sufficient time has passed, the Anchor will be connected to the network. If network ID and join key were not configured, reference “Troubleshooting”.
  • Page 16 When the Location Anchor has joined the network, it will appear in the AMS Device Manager as illustrated in Figure 5-2. For WirelessHART communication, a Location Anchor DD is required. To obtain the latest DD, visit the Emerson Easy Upgrade site at: Emerson.com/Rosemount/Device- Install-Kits. Figure 5-2: AMS Device Manager Note Plantweb Insight Location application is provided for viewing Location Anchor status.
  • Page 17: Operation And Maintenance

    Battery replacement WARNING The Emerson Location Anchor shall be used only with the battery (00G45-9000-0001) supplied by Rosemount. This battery has been officially tested with the Location Anchor as required by the I.S. standards during the assessment of the Emerson Location Anchor.
  • Page 18 6-1. To see the LED, remove the enclosure cover. Table 6-1: Anchor LED Status Descriptions LED color Device status Green Functioning properly Amber Battery is low, battery replacement recommended Battery replacement required Device is malfunctioning No color No power, verify ON/OFF switch is in “ON” position Emerson.com...
  • Page 19: Personnel Tag Configuration

    February 2020 Quick Start Guide Personnel Tag configuration Configuring Personnel Tags Personnel Tag configuration is completed within Plantweb Insight Location application. First, all personnel must be identified as Assets within the Asset page. Once personnel are identified as assets, they can be assigned to a specific tag.
  • Page 20 Quick Start Guide February 2020 4. Name Tag. Emerson.com...
  • Page 21: Personnel Tag Mounting Considerations

    February 2020 Quick Start Guide Personnel Tag mounting considerations Tag mount The Personnel Tag has flexible wearing options to accommodate a variety of PPE. It can be worn with a lanyard or belt clip. Lanyards are shipped with the Personnel Tags. Belt clips can be ordered separately. Quick Start Guide...
  • Page 22: Personnel Tag Operation And Maintenance

    Battery charge required No color No power Shipping mode Personnel Tag safety alert The Personnel Tag has a Safety Alert button than can be exposed by sliding the grey cover downward. The red button, once pressed, sends an alert to Emerson.com...
  • Page 23 Personnel Tag charging The Personnel Tag has a rechargeable battery and is charged using a certified Qi charger. Emerson offers both a single charging pad and a bulk charging station (charges 28 tags). See Product Data Sheet for ordering details.
  • Page 24 All wireless devices require certification to ensure they adhere to regulations regarding the use of the RF spectrum. Nearly every country requires this type of product certification. Emerson is working with governmental agencies around the world to supply fully compliant products and remove the risk of violating country directives or laws governing wireless device usage.
  • Page 25 February 2020 Quick Start Guide 10.4 Ordinary certification location from CSA The product has been examined and tested to determine that the design meets the basic electrical, mechanical, and fire protection requirements by CSA, a nationally recognized test laboratory (NRTL) as accredited by the Federal Occupational Safety and Health Administration (OSHA).
  • Page 26 IP66/67, Type 4X; Special Conditions for Safe Use (X): 1. Do not replace battery when explosive atmosphere is present. Ne pas remplacer les accumulateurs si une atmosphère explosive peut être présente. 2. Use only 00G45-9000-0001 batteries. Utiliser uniquement des accumulateurs 00G45-9000-0001. Emerson.com...
  • Page 27 February 2020 Quick Start Guide 3. The surface resistivity of the housing is greater than 1GΩ. To avoid electrostatic charge build-up, it must not be rubbed or cleaned with solvents or a dry cloth. La résistivité de surface du boÎtier est supérieure à un gigaohm. Pour éviter l’accumulation de charge électrostatique, ne pas frotter ou nettoyer avec des produits solvants ou un chiffon sec.
  • Page 28 2. Do not change the battery when an explosive atmosphere is present. 3. Only replace battery with Rosemount Part No. 00G45-9000-0001. Note Conditions 1, 2, 3 do not apply to the GEO10. Emerson.com...
  • Page 29 February 2020 Quick Start Guide Declaration of Conformity 11.1 Location Awareness Personnel Tag Quick Start Guide...
  • Page 30 Quick Start Guide February 2020 Emerson.com...
  • Page 31 February 2020 Quick Start Guide Quick Start Guide...
  • Page 32 Quick Start Guide February 2020 11.2 Location Awareness Anchor Emerson.com...
  • Page 33 February 2020 Quick Start Guide Quick Start Guide...
  • Page 34 Quick Start Guide February 2020 Emerson.com...
  • Page 35 February 2020 Quick Start Guide Quick Start Guide...
  • Page 36 The Emerson logo is a Twitter.com/Rosemount_News trademark and service mark of Emerson Electric Facebook.com/Rosemount Co. Rosemount is a mark of one of the Emerson Youtube.com/user/ family of companies. All other marks are the RosemountMeasurement property of their respective owners.
