dymax AX-550 User Manual

Ax light shield kit
Hide thumbs Also See for AX-550:

Advertisement

Quick Links

AX Light Shield Kit
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AX-550 and is the answer not in the manual?

Questions and answers

Summary of Contents for dymax AX-550

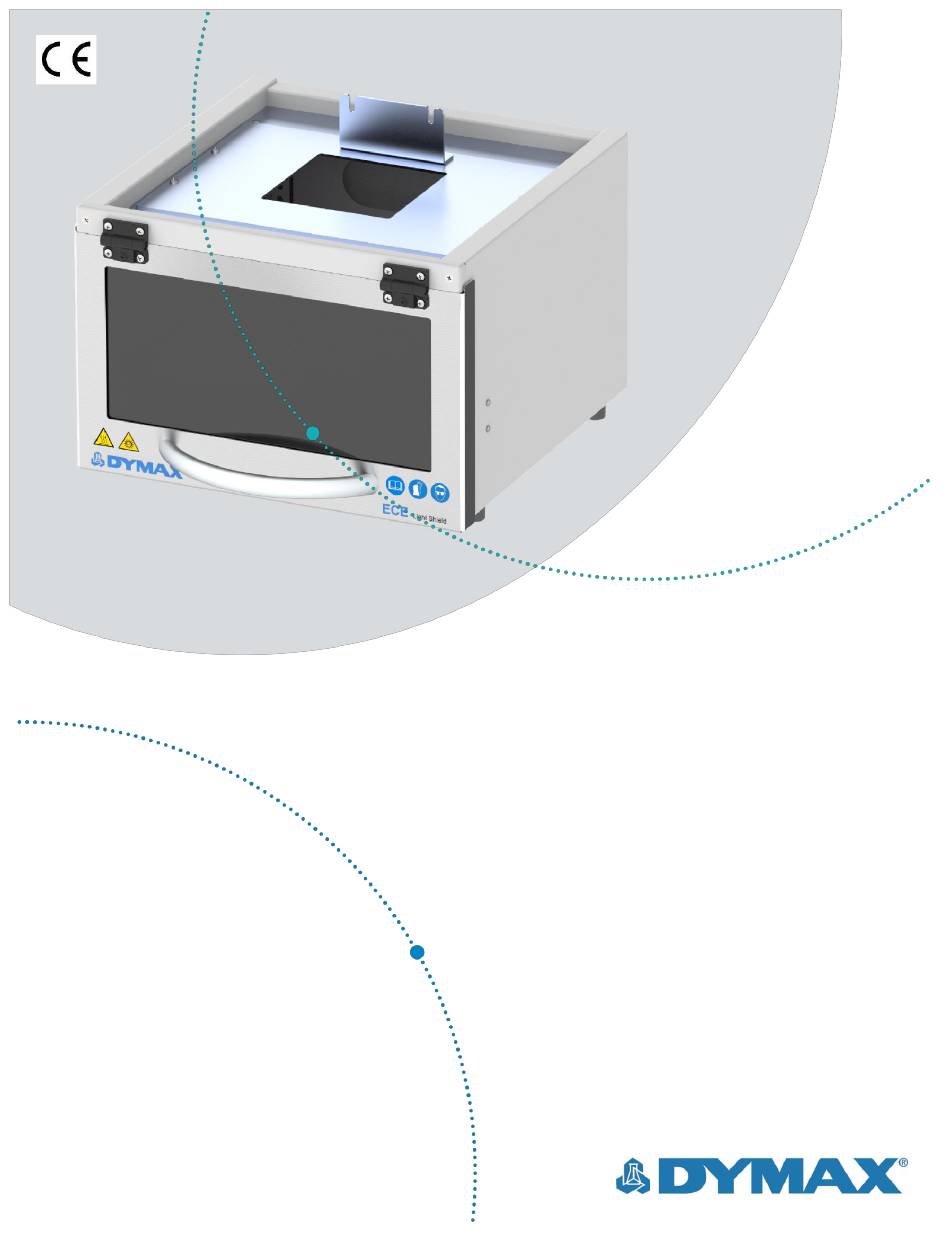

  • Page 1 AX Light Shield Kit User Guide...
  • Page 2 Any warranty applicable to the product, its application, and use is strictly limited to that contained in the Dymax standard Conditions of Sale. Dymax recommends that any intended application be evaluated and tested by the user to ensure that desired performance criteria are satisfied.
  • Page 3: Table Of Contents

    System Interconnection ..............7 Operation ................. 11 Cleaning & Maintenance ............11 General ....................11 Light Shield ..................11 BlueWave AX-550 LED Curing System ........11 ® Troubleshooting ..............12 Spare Parts and Accessories ..........12 Specifications ................13 Warranty ................... 14 Index ..................
  • Page 4: Introduction

    Introduction Specific Safety Considerations This guide describes how to set up, use, and maintain a Dymax AX Light Shield safely and efficiently. The light shield is designed to maximize operator safety and minimize exposure to light-curing energy. To use the shield...
  • Page 5: Product Overview

    The AX Light Shield Kit (PN 60419) features an ECE light shield and an adapter plate that allows the BlueWave ® AX-550 LED curing system to be easily Door Handle mounted onto the light shield. Figure 1. NOTE: Users considering special or customized...
  • Page 6: Special Features & Benefits

    3 L-Bracket, PN 60401 4 Interlock Cable, PN 60471 5 Screws, M4 x 8 mm, PN 41688 6 Screws, M5 x 8, PN 39166 7 Dymax AX Light Shield User Guide, PN 60482 Special Features & Benefits Feature Benefit Accommodates parts Can be used for a variety of part for curing up to 7.5"...
  • Page 7: Assembly And Setup

    Open each box and check for equipment damage. If parts are damaged, notify the shipper and submit a claim for the damaged parts. Contact Dymax so that new parts can be shipped to you immediately. Check that the parts included in your order match those listed below.
  • Page 8 Emitter Mounting Holes and tighten. (Figure 7) Figure 6. Installing the L-Bracket Figure 7. Mounting the BlueWave AX-550 LED Curing System U SE R G U I D E A X - 5 5 0 D Y M A X . C O M...
  • Page 9 Connect all components with appropriate cables. (Figure 8) Figure 8. BlueWave AX-550 LED Curing System Interconnect Diagram BlueWave AX-550 LED Curing System Adapter Plate Assembly Light Shield Figure 9. Connecting the Interlock Cable A. Interlock Cable - Connects the rear of the light...
  • Page 10 When all connections are properly made, toggle the power switch on the top of the BlueWave ® AX-550 controller. The system is now ready for Door Open use. Verify that the fan on the back of the light Indication shield is operating.
  • Page 11: Operation

    Cleaning & Maintenance General For detailed technical assistance, please call the Dymax Application Engineering. Light Shield The light shield is designed to be maintenance free. Periodic cleaning will ensure long, trouble-free operation.
  • Page 12: Troubleshooting

    NOTE: If your unit displays an error message on the LCD screen, refer to the troubleshooting section of the BlueWave AX-550 LED Curing System User Guide for more information. ® Spare Parts and Accessories Item...
  • Page 13: Specifications

    Specifications Property Specification 60419 AX Light Shield Kit (Includes Light Shield & Interface Kit) 43251 Compatible BlueWave AX-550 Controller ® Part Numbers 43249 Compatible BlueWave ® AX-550 PrimeCure ® Emitter – 385 nm 43250 Compatible BlueWave ® AX-550 VisiCure ®...
  • Page 14: Warranty

    Unauthorized repair, modification, or improper use of equipment may void your warranty benefits. The use of aftermarket replacement parts not supplied or approved by Dymax Corporation will void any effective warranties and may result in damage to the equipment. DYMAX CORPORATION...
  • Page 15: Index

    Index Assembly ............7 Cable Connections ........... 8 Cleaning ............10 Contact Informationt......... 3 Converting an ECE System over to LED ... 8 Dimensions ............ 12 Features and Benefits ........5 Help ..............3 Maintenance ..........10 Operation ............10 Optional Equipment ........
  • Page 16 © 2020 Dymax Corporation. All rights reserved. All trademarks in this guide, except where noted, are the property of, or used under license by Dymax Corporation, U.S.A. Please note that most curing system applications are unique. Dymax does not warrant the fitness of the product for the intended application. Any warranty applicable to the product, its application and use is strictly limited to that contained in Dymax’s standard Conditions of Sale.
