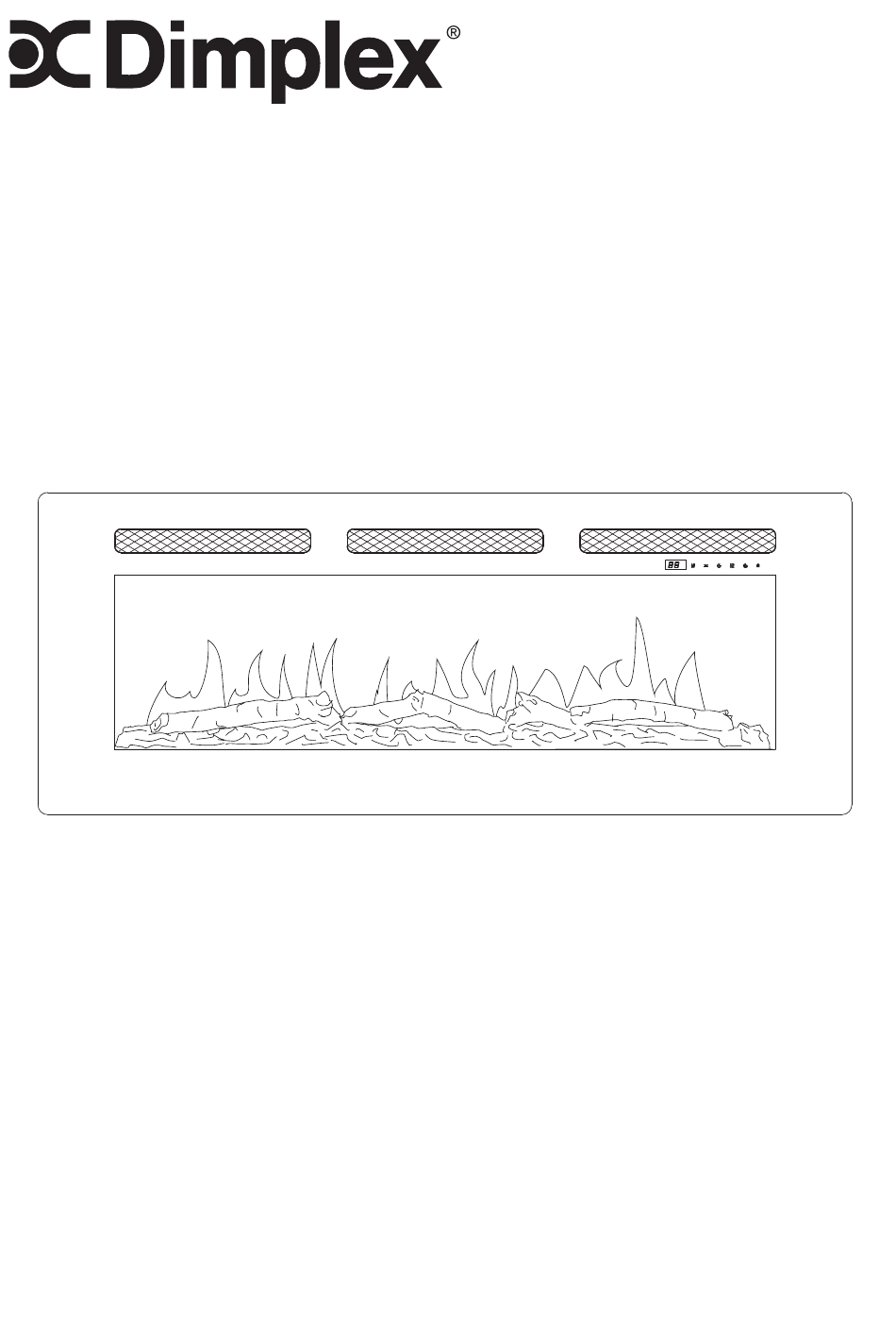

Owner's Manual
Models: SIL48, SIL60 & SIL72
CONSUMER SAFETY INFORMATION: PLEASE READ THIS MANUAL BEFORE
INSTALLING AND OPERATING THIS APPLIANCE. FAILURE TO FOLLOW
THESE INSTRUCTIONS MAY RESULT IN A POSSIBLE ELECTRIC SHOCK,
FIRE HAZARD, AND/OR INJURY AND WILL VOID THE WARRANTY.
To view the full line of Dimplex products,
visit www.dimplex.com
7215870100R01
Advertisement
Table of Contents
Related Manuals for Dimplex Sierra 48
Summary of Contents for Dimplex Sierra 48
- Page 1 CONSUMER SAFETY INFORMATION: PLEASE READ THIS MANUAL BEFORE INSTALLING AND OPERATING THIS APPLIANCE. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN A POSSIBLE ELECTRIC SHOCK, FIRE HAZARD, AND/OR INJURY AND WILL VOID THE WARRANTY. To view the full line of Dimplex products, visit www.dimplex.com 7215870100R01...
-
Page 2: Table Of Contents
Table of Contents Welcome .............3 IMPORTANT INSTRUCTIONS ......4 Specifications ............6 Installation ............7 Operation............16 Maintenance ............19 Troubleshooting ..........21 Warranty ............22 Technical Support ..........24 Conventions used in this manual: NOTE: Procedures and techniques considered important enough to emphasize. CAUTION: Procedures and techniques which, if not carefully followed, will result in damage to the equipment. -
Page 3: Welcome
Welcome Please use our convenient online registration page to record your model and serial numbers for future reference at: www.dimplex.com/register Model Number AIR HEATER CHAUFFE-AIR CAUTION CALENTADOR DE AIRE VOLTS VOLTIOS WATTS ATTENTION VATIOS CSA # XXXXX CAT. # № DE CAT. -
Page 4: Important Instructions
IMPORTANT INSTRUCTIONS Read this manual before attempting • Do not use outdoors. to install or use the electric fireplace. • Do not insert or allow foreign objects Always comply with the warnings and to enter any ventilation or exhaust safety instructions contained in this opening as this may cause an electric manual to prevent personal injury or shock, fire, or damage the fireplace. - Page 5 IMPORTANT INSTRUCTIONS FCC Compliance • Do not run cord under carpeting. Do not cover cord with throw rugs, CAUTION: This equipment has been runners or the like. Arrange the cord tested and found to comply with the limits away from heavily trafficked areas, for Class B digital devices, pursuant to where it will not be tripped over.
-
Page 6: Specifications
Specifications Electrical Dimensions Voltage: 120VAC 60Hz SIL48 Watts: 1400 Watts Width: 41-1/4" (104.6 cm) Amps: 12 A Height: 18-1/8" (46.0 cm) Wiring: Plug-In Height with feet: 21-1/2" (54.7 cm) Bulb Type: LED Depth: 5-1/4" (13.3 cm) Depth with feet: 11" (27.9 cm) Approvals: Weight 40.8 lbs (18.5 kg) -
Page 7: Installation
Installation GROUNDING INSTRUCTIONS • This product is equipped with a cord that has an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. Grounding •... - Page 8 Package Contents Tools required...
- Page 9 Installation IN-WALL INSTALLATION Cabinet - in / cm Model Sierra 48 - SIL48 41.6 / 105.7 6.5 / 16.5 18.5 / 47.0 Sierra 60 - SIL60 52.4 / 133.1 6.5 / 16.5 18.5 / 47.0 Sierra 72 - SIL72 64.4 / 163.6 6.5 / 16.5...
- Page 10 Installation IN-WALL INSTALLATION...
- Page 11 Installation G&H Lock glass in place Move to lock Unlocked Locked...
- Page 12 Installation ON-WALL INSTALLATION Dimensions - in / cm Model Sierra 48 - SIL48 16 / 40.6 7.9 / 20 Wall Sierra 60 - SIL60 32 / 81.3 7.9 / 20 Sierra 72 - SIL72 32 / 81.3 7.9 / 20...
- Page 13 Installation G&H Lock glass in place Move to lock Unlocked Locked...
- Page 14 Installation TABLE TOP INSTALLATION G&H...
- Page 15 Installation Lock glass in place Move to lock Unlocked Locked...
-
Page 16: Operation
Operation The fireplace can be operated with the multi–function IR remote control or from the touchscreen controls on the top-right of the front glass. Once the fireplace is turned on the digital display and the control icons on the front glass will illuminate. If no button or icon is pressed within 10 seconds, the fireplace controls will deactivate by the digital display turning off first and then the icons. - Page 17 Operation POWER ON/OFF The ON/OFF button turns the fireplace ON and OFF. When the fireplace is OFF, pressing the ON/OFF button on the remote control or touching the icon on the front glass will turn on the fireplace. If the ON/OFF button is pressed again within 10 seconds it will turn OFF the fireplace.
- Page 18 Operation Heater Enable & Disable Function: From the touchscreen controls touch and hold the Heat icon for 10 seconds. The ember bed will flash 6 times to indicate that the heater function is disabled. When the heat is disabled, pressing the Heat button will cause the ember bed to flash, but the heater will not operate.
-
Page 19: Maintenance
Maintenance • Clean the metal trim using a water-dampened soft, clean cloth. DO NOT use brass polish or household cleaners as these products will damage the metal trim. • The motors used on the fan and the flame generator assembly are pre- lubricated for extended bearing life and require no further lubrication. - Page 20 Maintenance Disposal of Used Batteries Batteries may contain hazardous substances that could be endangering to environment and human health. • This symbol marked on the battery and/or packaging indicates that used batteries shall not be treated as municipal waste. Instead they shall be left at the appropriate collection point for recycling.
-
Page 21: Troubleshooting
Troubleshooting Fault code Fault Cause Solution The heater overheating Call technical support. Thermistor is Call technical support. defective. The heater not If the vents are dirty or clogged. Unplug working. the power, clean the dust and debris of the vent area. Wait for 5 minutes, plug in and turn on the heater. -
Page 22: Warranty
Limited warranty service requires a the entire cost of all necessary servicing or proof of purchase of the product. repair. What Glen Dimplex Americas will do in the What this limited warranty covers and for event of a defect how long... - Page 23 • Glen Dimplex Americas will in its sole Nations Convention on Contracts for the discretion either repair or replace such Sale of Goods shall not apply to this limited defective product or part without charge. warranty or the sale of products covered by If Glen Dimplex Americas is unable this limited warranty.
-
Page 24: Technical Support
Make sure you have your sales receipt, location of purchase, and the model and serial number of your product. 1-888-346-7539 | www.dimplex.com/contact_us In keeping with our policy of continuous product improvement, we reserve the right to make changes without notice. © 2020 Glen Dimplex Americas...
