Page 1: Operating Instructions

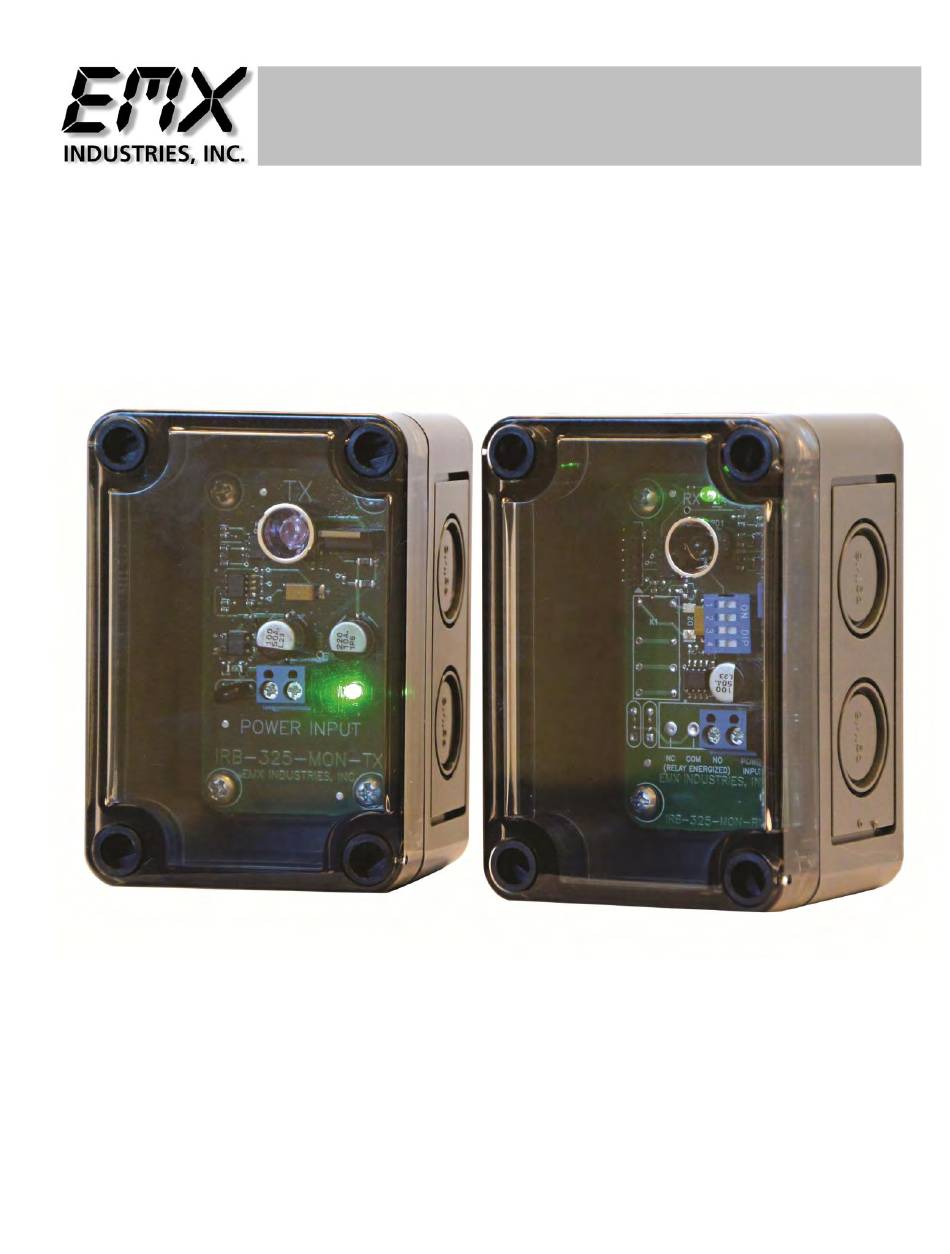

Safety Photo Beam UL325-2010 MONITORED DEVICE Operating Instructions... - Page 2 CAUTIONS AND WARNINGS This product is an accessory or part of a system. Always read and follow the manufacturer’s instructions for the equipment you are connecting this product to. Comply with all applicable codes and safety regulations. Failure to do so may result in damage, injury or death! 1.
- Page 3 2. Always follow the instructions of the gate operator manufacturer regarding installation of type B1 sensors on the gate operator. The instructions of the gate operator manufacturer always supersede any instructions given in this or any other instructions by EMX Industries Inc.
- Page 4 4. Connect power to the terminals on the transmitter marked “TX”, polarity is not required. Refer to your gate operator instructions for proper photo eye connections. 5. Connect power to terminals marked “POWER INPUT” on the receiver, marked “RX” polarity is not required.
- Page 5 TROUBLESHOOTING GUIDE Symptom Possible cause Solution Does not detect obstruction of Sensitivity too high Adjust SENSITIVITY pot beam counter-clockwise Signal is reflecting off another Check area for highly reflective surface surfaces Red detect LED stays on Sensitivity too low Adjust SENSITIVITY pot clockwise Transmitter does not have power Check power source for...
- Page 6 IRB-HB Instructions Document no. 10280204 REV 1.3...
- Page 7 IRB-HB Instructions Document no. 10280204 REV 1.3...
- Page 8 4564 Johnston Parkway Cleveland, Ohio 44128 United States of America http://www.emxinc.com Technical Support: (216) 834-0761 E-mail: technical@emxinc.com Sales: (216) 518-9888 Fax (216) 518-9884 E-mail salessupport@emxinc.com 5.19.14 IRB-HB Instructions Document no. 10280204 REV 1.3...
