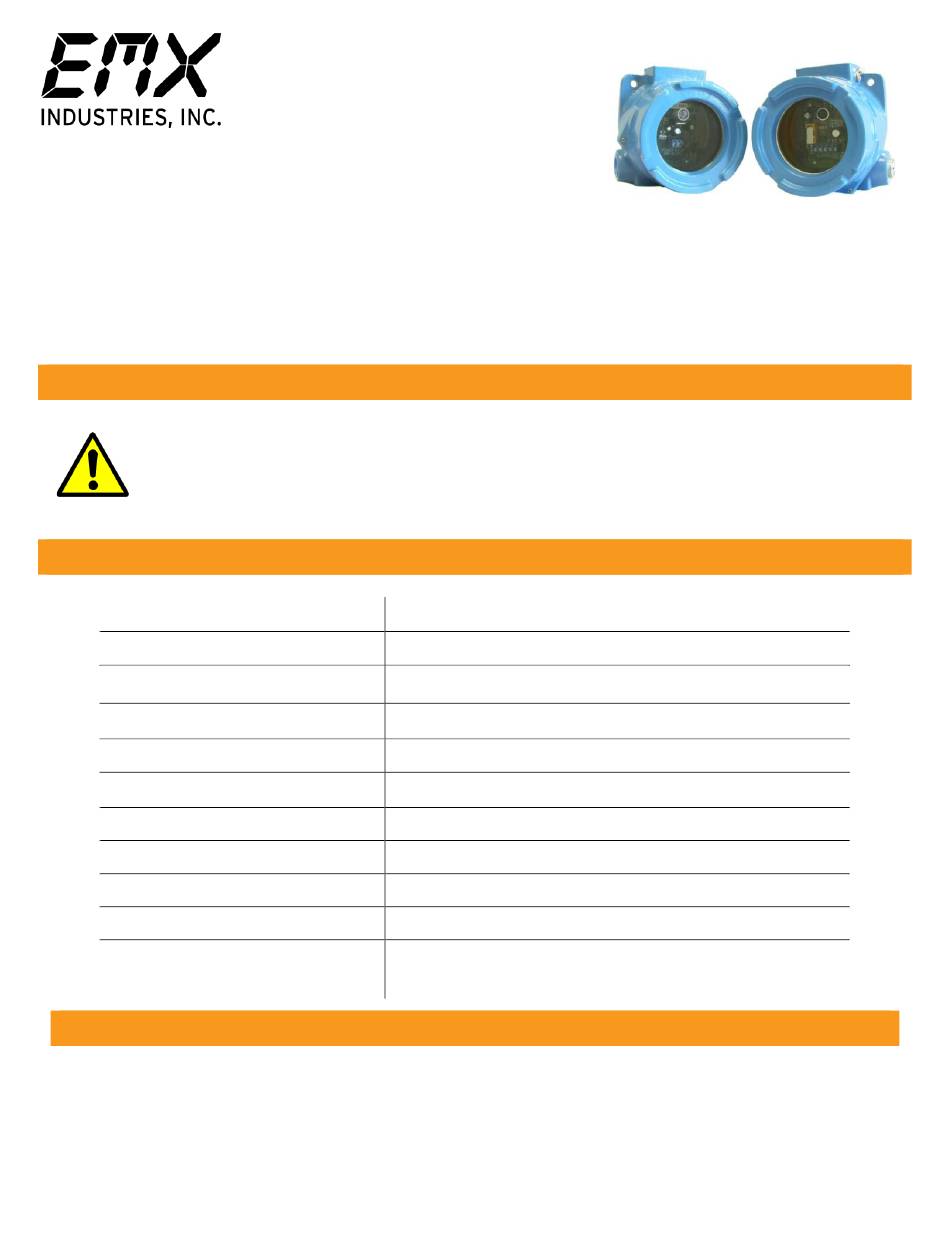

Instruction Manual

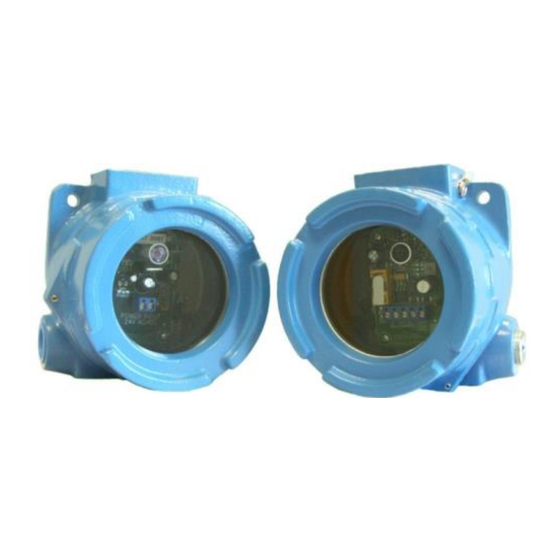

Designed for explosive environments, the rugged IRB-EXP thru beam photoeye is used as a safety,
reversing or opening device with automatic gate and door operators. The photoeye provides a signal to
the operator that the beam is or is not obstructed. The IRB-EXP operates up to 115 feet in a cast aluminum
housing. A red alignment indicator on the receiver provides status information at a glance, making set-up
and alignment easy.
Cautions and Warnings
This product is an accessory or part of a system. Install the IRB-EXP according to
instructions from the gate or door operator manufacturer. Comply with all applicable
codes and safety regulations.
Specifications
Operating Range
Power
Current Draw of Transmitter
Current Draw of Receiver
Surge Protection
Relay Output Configuration
Relay Contact Rating
Operating Temperature
Housing Material
Dimensions (L x W x H)
Environmental Rating
Ordering Information
IRB-EXP
•
EMX Industries, Inc.
IRB-EXP_Rev2.1_061620
IRB-EXP
™
Explosion-Proof Photoeye
Up to 115 ft. (35 m)
12-24 VDC/AC
37 mA
23 mA standby, 17 mA detect
Thermal fuse
Form C contacts (NO, COM, NC)
1 A at 24 VDC / 120 VAC
-40° to 170°F (-40° to 77°C)
Cast aluminum
3.4" (87 mm) x 4.5" (114 mm) x 4.7" (119 mm)
NEMA 4 & 7, NEC Class 1 Groups B, C, & D,
NEC Class II Groups E, F & G, CSA CENELEC, EExd IIC
Explosion-Proof Photoeye
Tech support: 216-518-9889
technical@emxinc.com
TM
1/3
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for EMX IRB-EXP
Summary of Contents for EMX IRB-EXP
- Page 1 The photoeye provides a signal to the operator that the beam is or is not obstructed. The IRB-EXP operates up to 115 feet in a cast aluminum housing. A red alignment indicator on the receiver provides status information at a glance, making set-up and alignment easy.
- Page 2 Red receiver LED on Beam blocked or not aligned 7. Place an obstruction (ex. hand) between the IRB-EXP transmitter and receiver. The red LED on the receiver will turn on. Check the operator control board and verify that the safety input is recognized by the operator.
- Page 3 Warranty EMX Industries, Inc. products have a warranty against defects in materials and workmanship for a period of two years from date of sale to our customer. EMX Industries, Inc. Tech support: 216-518-9889 IRB-EXP_Rev2.1_061620...
