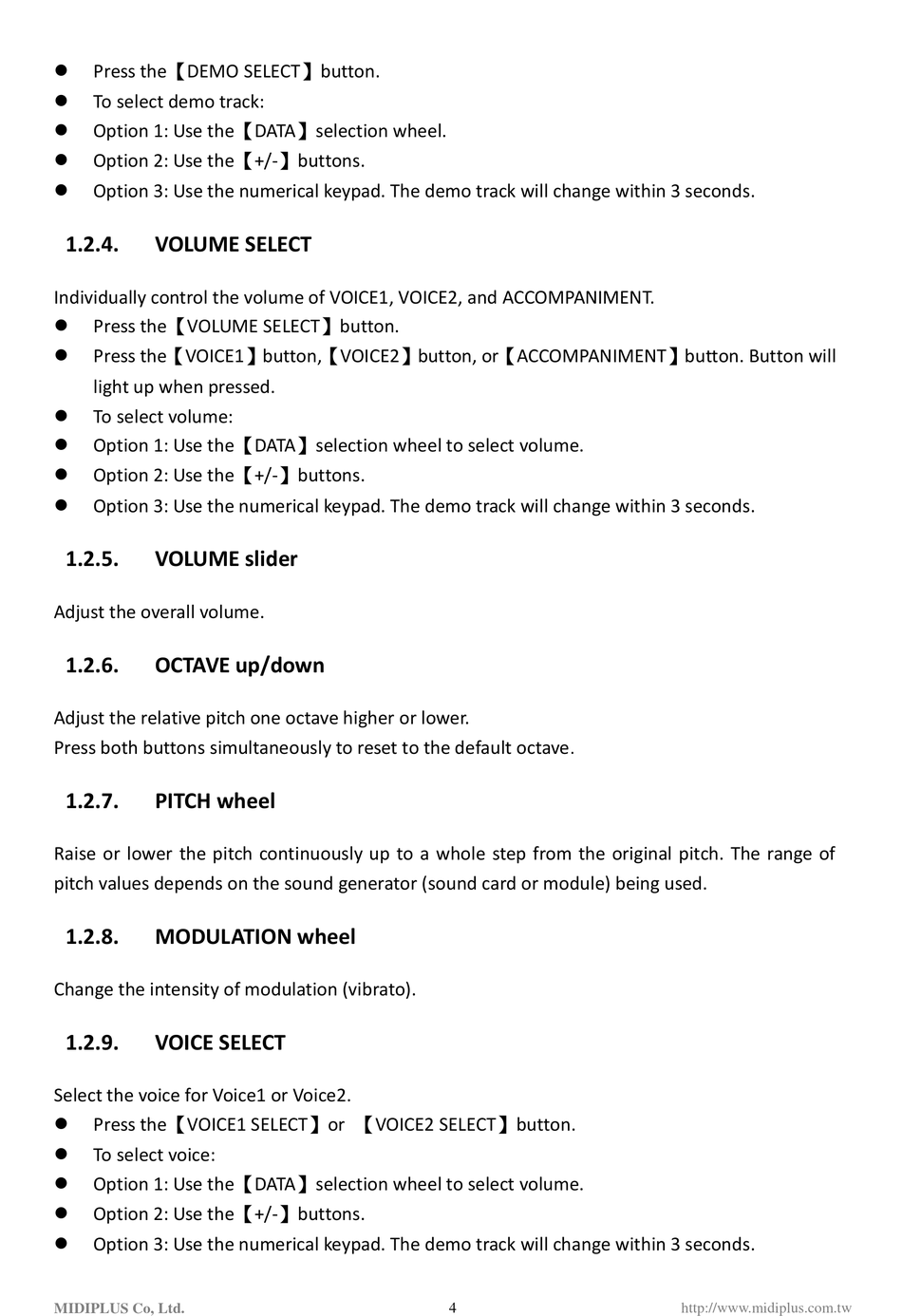

Press the【DEMO SELECT】button.

To select demo track:

Option 1: Use the【DATA】selection wheel.

Option 2: Use the【+/-】buttons.

Option 3: Use the numerical keypad. The demo track will change within 3 seconds.
1.2.4.

VOLUME SELECT

Individually control the volume of VOICE1, VOICE2, and ACCOMPANIMENT.

Press the【VOLUME SELECT】button.

Press the【VOICE1】button,【VOICE2】button, or【ACCOMPANIMENT】button. Button will
light up when pressed.

To select volume:

Option 1: Use the【DATA】selection wheel to select volume.

Option 2: Use the【+/-】buttons.

Option 3: Use the numerical keypad. The demo track will change within 3 seconds.
1.2.5. VOLUME slider
Adjust the overall volume.
1.2.6.

OCTAVE up/down

Adjust the relative pitch one octave higher or lower.
Press both buttons simultaneously to reset to the default octave
1.2.7.

PITCH wheel

Raise or lower the pitch continuously up to a whole step from the original pitch. The range of
pitch values depends on the sound generator (sound card or module) being used.
1.2.8.

MODULATION wheel

Change the intensity of modulation (vibrato).
1.2.9.

VOICE SELECT

Select the voice for Voice1 or Voice2.

Press the【VOICE1 SELECT】or 【VOICE2 SELECT】button.

To select voice:

Option 1: Use the【DATA】selection wheel to select volume.

Option 2: Use the【+/-】buttons.

Option 3: Use the numerical keypad. The demo track will change within 3 seconds.
