Rear Panel; Basic Functions; Lcd Display Screen; Tempo Select - midiplus EK490 plus Owner's Manual

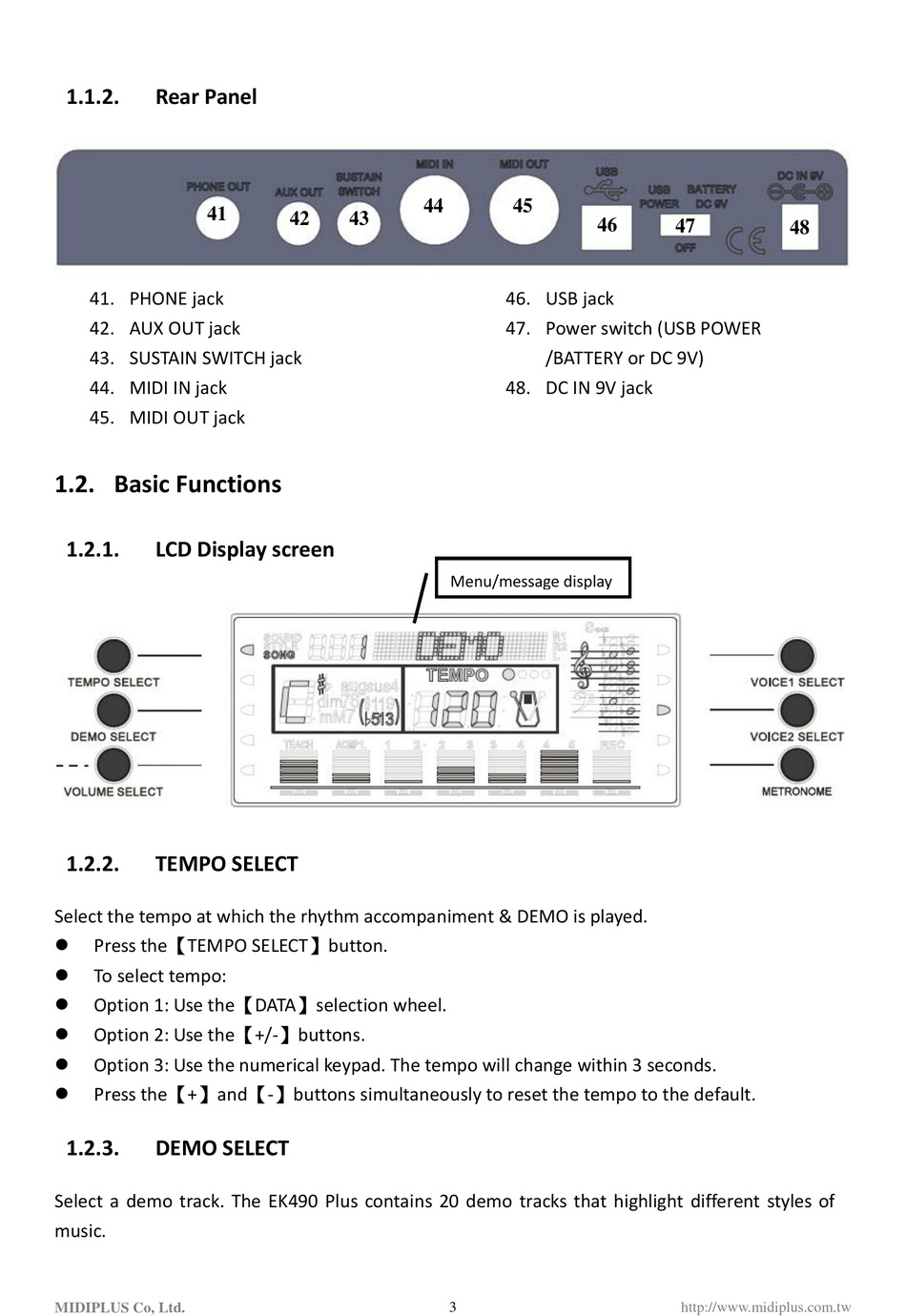

1.1.2.

Rear Panel

41
41. PHONE jack
42. AUX OUT jack
43. SUSTAIN SWITCH jack
44. MIDI IN jack
45. MIDI OUT jack

1.2. Basic Functions

1.2.1.

LCD Display screen

1.2.2.

TEMPO SELECT

Select the tempo at which the rhythm accompaniment & DEMO is played.

Press the【TEMPO SELECT】button.

To select tempo:

Option 1: Use the【DATA】selection wheel.

Option 2: Use the【+/-】buttons.

Option 3: Use the numerical keypad. The tempo will change within 3 seconds.

Press the【+】and【-】buttons simultaneously to reset the tempo to the default.
1.2.3.

DEMO SELECT

Select a demo track. The EK490 Plus contains 20 demo tracks that highlight different styles of
music.
MIDIPLUS Co, Ltd.
44
42 43
Menu/message display
3
45
46
47
46. USB jack
47. Power switch (USB POWER
/BATTERY or DC 9V)
48. DC IN 9V jack
48
