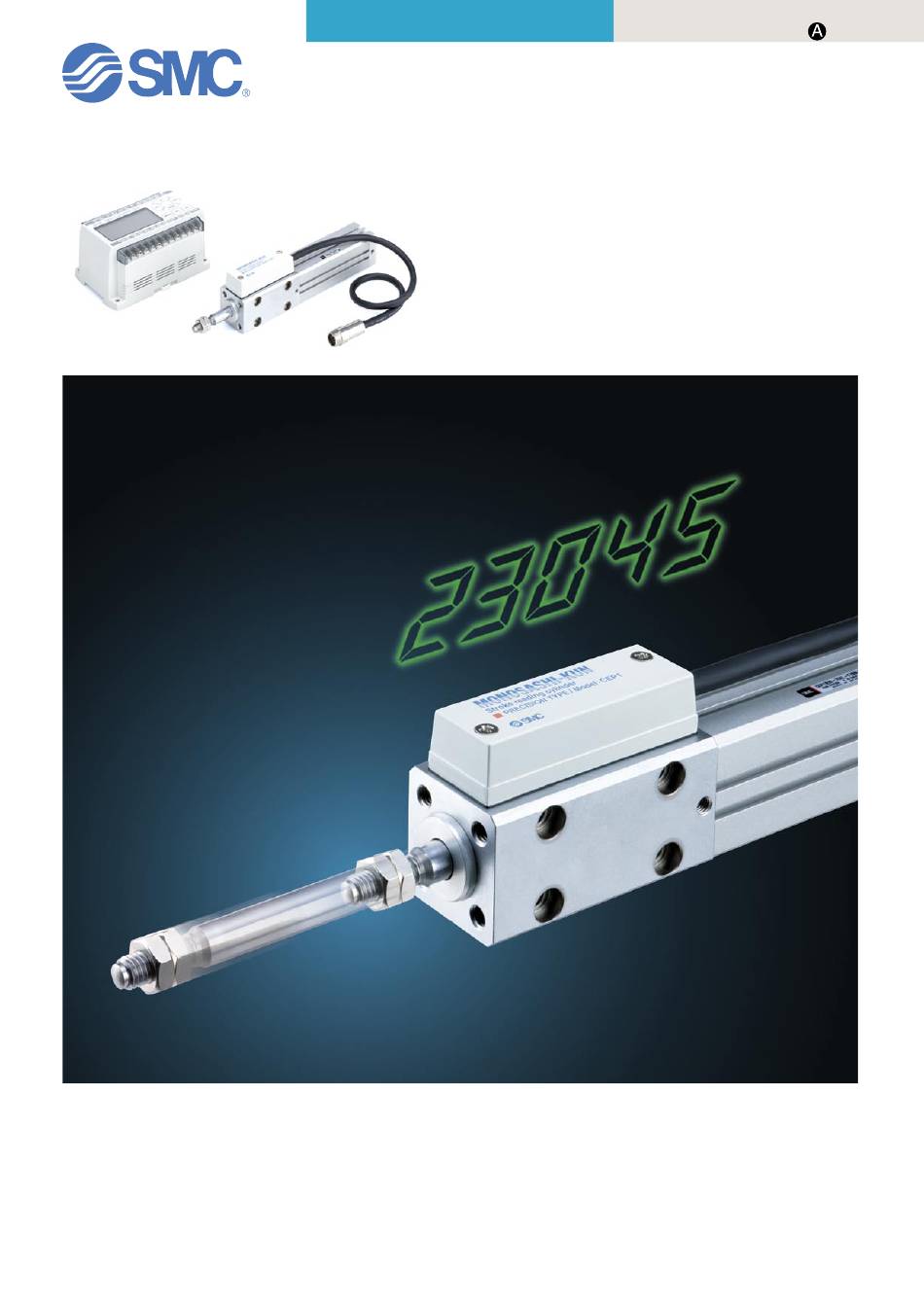

CAT.E 411
-UK
Scale Cylinder & Counter
CE
Series
Series CEU
Series CEP1
CEP1/CEU5
Resolution: 0.01mm (accuracy ±0.02mm)
External output function: RS-232C BCD
Multipoint output: 5 points (20 points with bank switching)
31 points (binary output)
High Precision Scale Cylinder/ Series CEP1
Multi Counter/Series CEU5
Upgraded Scale Cylinder/Series CE1

Advertisement

loading
Need help?

Need help?

Do you have a question about the CE Series and is the answer not in the manual?

Questions and answers

Related Manuals for SMC Networks CE Series

Summary of Contents for SMC Networks CE Series

  • Page 1 CAT.E 411 Scale Cylinder & Counter Series Series CEU Series CEP1 CEP1/CEU5 Resolution: 0.01mm (accuracy ±0.02mm) External output function: RS-232C BCD Multipoint output: 5 points (20 points with bank switching) 31 points (binary output) High Precision Scale Cylinder/ Series CEP1 Multi Counter/Series CEU5 Upgraded Scale Cylinder/Series CE1...
  • Page 2 Achieve rationalizatio A scale cylinder wit Measurement is possible throughout the full stroke range. The home position can be When the counter is reset by pressing the cylinder rod to the reference plane, that point anywhere within the cylinder becomes the home position. stroke.
  • Page 3 on of production lines th position feedback Tolerances of preset values can be set. (CEU5) Tolerances can be set for preset values. CEU1: ± set tolerance CEU5: + set tolerance, – set tolerance (separate settings) Simple operation Multi Counter (CEU5) •...
  • Page 4 Series Applications Parts inspection Confirmation of press-in Measures part dimensions, Can confirm the press-in of a discriminates between good and hydraulic cylinder by detecting its defective articles, and prevents stroke. the mingling of different parts, Even if the size of the work piece etc.
  • Page 5 Series Scale Cylinder A/B phase difference output Measurement Principles (90° phase difference output) The amount of rod movement in the scale cylinder is detected When movement is expressed by a single line of pulses, it is using an MR element (magnetic resistance element) whose impossible to accurately identify the current position, because resistance value changes due to magnetic force.
  • Page 6 High Precision Scale Cylinder CEP1 Series Non-rotating Type ø12, ø20 How to Order CEP1 B High precision scale cylinder Number of auto switches 2pcs. Mounting bracket 1pc. Direct mounting front tapped type Bore size "n" pcs. Foot type ø12mm equiv. Auto switch type Front flange type ø20mm equiv.
  • Page 7 CEP1 Series High Precision Scale Cylinder Cylinder Specifications Action Double acting single rod (non-rotating piston) Fluid 1.5MPa {15.3kgf/cm²} Proof pressure 1.0MPa {10.2kgf/cm²} Maximum operating pressure ø12 ø20 Minimum operating pressure 0.15MPa {1.5kgf/cm²} 0.1MPa {1.0kgf/cm²} Piston speed 50 to 300mm/s Ambient & fluid 0°C to 60°C (without freezing) temperature Lubrication...
  • Page 8 CEP1 Series Proper Auto Switch Weight Table Mounting Position (without Mounting Brackets / Connector) Unit: kg Refer to p.32 regarding dimensions for the Cylinder stroke (mm) proper auto switch mounting position (stroke Bore Size (mm) end). 0.29 0.33 0.37 0.41 0.62 0.68 0.74...
  • Page 9 CEP1 Series High Precision Scale Cylinder Construction ø 1 2 ø 20 bk cm 9 bq br cr bm br 2 cp 1 6 bn 4 5 cp 3 bl cl cl co cq bo cq bo 7 cs bp ck bs bt 8 Parts list Parts list...
  • Page 10 CEP1 Series ø 12 /Dimensions Direct mounting front tapped type CEP1B12 Stroke 4-ø4.5 through ø7.5 counter bore depth 4 (500 or 3000) Width across flats 8 SR3.5 14.5 67.5 4 x M4 2 x M5 Thread depth 7 71.5 (port size) 103 + Stroke 127 + Stroke Metal connector...
  • Page 11 CEP1 Series High Precision Scale Cylinder Foot type CEP1L12 Stroke 4-ø4.5 Front flange type CEP1F12 Stroke ø4 +0.05 +0.02 (Positioning pin hole) 4-ø4.5...
  • Page 12 CEP1 Series ø 20 /Dimensions Direct mounting front tapped type CEP1B20 Stroke 4-ø5.5 through ø9 counter bore depth 5.5 (500 or 3000) Width across flats 13 4 x M5 2 x M5 Thread depth 7.5 114 + Stroke (port size) 145 + Stroke Metal connector Made by TAJIMI...
  • Page 13 CEP1 Series High Precision Scale Cylinder Foot type CEP1L20 Stroke 4-ø5.5 13.5 Front flange type CEP1F20 Stroke +0.05 ø4 +0.02 (Positioning pin hole) 4-ø5.5...
  • Page 14 Scale Cylinder Series ø12, ø20, ø32, ø40, ø50, ø63 How to Order CE1 L 32 Mounting bracket Auto switch type Double end tapped (standard) Bore size Foot type Without auto switch Cable length 12mm ∗ Front flange type Refer to the table below for auto 20mm 0.5 m switch part numbers.
  • Page 15 Series Scale Cylinder Cylinder Specifications Fluid Proof pressure 1.5MPa {15.3kgf/cm²} Maximum operating pressure 1.0MPa {10.2kgf/cm²} ø12 ø20 to ø63 Minimum operating pressure 0.07MPa {0.71kgf/cm²} 0.05MPa {0.51kgf/cm²} Piston speed 70 to 500mm/s Ambient & fluid 0°C to 60°C (without freezing) temperature Humidity 25 to 85% RH (without condensation) Lubrication...
  • Page 16 Series Proper Auto Switch Mounting Position Weight Table (without Mounting Bracket/Connector) Unit: kg (without brackets) Refer to p.32 regarding dimensions for the Cylinder stroke (mm) Bore size proper auto switch mounting position (stroke end). (mm) 0.29 0.33 0.36 0.43 0.47 –...
  • Page 17 Series Scale Cylinder Construction ø 32 ø 1 2 ø 20 6 co cs bk ck 9 8 cn 7 co cs cr cm 4 6 cr co cs ck 9 8 cn bk 7 cs co bm 4 3 bt dk 2 dl dk 5 1 ct 3 dl cl bt 5 cp-cq dk cl 1 bl 2 dl dk cm ct dl cl ø...
  • Page 18 Series ø 12 , ø 20 /Dimensions Double end tapped Stroke CE1B Bore size (mm) Bore size (mm) Standard stroke 25, 50, 75, 100, 125, 150 42.5 15.5 25, 50, 75, 100, 125, 150, 175, 200 15.5 53.5 25.5 ∗ T Bore size (mm) –...
  • Page 19 Series Scale Cylinder Foot type CE1L Bore size Stroke (Special cap bolt) LS + Stroke 4-øLD A + Stroke Front flange type CE1F Bore size Stroke 2-øFD (Special cap bolt) Rear flange type CE1G Bore size Stroke 2-øFD (Special cap bolt) A + Stroke Double clevis type CE1D...
  • Page 20 Series ø32 , ø 40 , ø 50 , ø 63 /Dimensions Double end tapped CE1B Bore size Stroke (port size) Metal connector Made by TAJIMI R04-J8M7.3 M14 x 1 4-øN through 8-O thread depth 20 500 or 3000 B + Stroke A + Stroke (mm) Bore size (mm)
  • Page 21 Series Scale Cylinder Foot type CE1L Bore size Stroke LS + Stroke 4-øLD (Special cap bolt) A + Stroke Front flange type CE1F Bore size Stroke 4-øFD A + Stroke (Special cap bolt) Rear flange type CE1G Bore size Stroke 4-øFD A + Stroke (Special cap bolt)
  • Page 22 Series Series Counter / Extension Cable  Multi Counter How to Order CEU5 Basic part number Power supply voltage DC12V GND F.G. R.S. HOLD BANK1 BANK2 MULTI COUNTER : CEU5 100 to 240VAC Output transistor mode COUNT PRESET FUNC. LEFT RIGHT 24VDC DOWN...
  • Page 23 CEU5 Series Counter Multi Counter/Specifications CEU5 CEU5-D CEU5P CEU5P-D CEU5B CEU5B-D CEU5PB CEU5PB-D Model Type Multi counter Mounting Surface mounting (DIN rail or screw stop) Operating system Adding - subtracting type Operation modes Operating mode, Data setting mode, Function setting mode Reset system External reset terminal Display system...
  • Page 24 Series  Extension Cable How to Order CE1-R Cable length Cable suffix Extension cable Extension cable & connector Extension cable CE1–R  Scale cylinder side connector (unit) R04–J8M7.3 CE1–R00C (Made by TAJIMI ELECTRONICS CO., LTD.) CE1–R ...
  • Page 25 Series Counter Operating Condition of each Output Mode One-shot output Without an allowed value With an allowed value When the counter value passes the sum of the preset When the counter value passes the preset value, output value + the allowed value, output is turned ON for 100ms. is turned ON for 100ms.
  • Page 26 Series CEU5 Operation Part names External power Pulse input terminals Control signal input supply DC12V GND F.G. R.S. HOLD BANK1BANK2 MULTI COUNTER : CEU5 BCD output connector Display PRESET FUNC. COUNT (on side) LEFT RIGHT DOWN SEL. MODE Operation keys AC100~240V OUT1 OUT2 OUT3 OUT4 OUT5 S.STOP...
  • Page 27 Series Counter Mode cycle using mode key Basic Operation • SET key : In any of the conditions (1) through (5), this writes the display data into the memory and shifts to (1). • SEL. key : Shifts to the next item, but does not write data. •...
  • Page 28 Series CEU5 Operation  Explanation of settings in the function mode If the UP/DOWN keys are pressed when an item name is flashing, it shifts to another setting item. When the SEL. key is pressed, the cursor shifts and it is possible to change the content of the setting for the item which is being displayed. Item name ...
  • Page 29 Series Counter  DOWN FUNC. FUNC. 3 -3 SEL. key Stop output • Set numerical values with the • When the SEL. key is pressed while direction keys. STOP is flashing, the setting mode • The unit is 0.1sec. is selected for the stop output •...
  • Page 30 Series Glossary (CEU5 Functions) BCD Output Bank Function This is a system which expresses one digit of a decimal number 5 points of preset output are possible simultaneously, however, with a 4 digit binary number. a maximum of 20 types of work discrimination, etc. can be The count value is expressed by the ON/OFF state of each BCD performed by using the 5 points of preset values as one of a output terminal.
  • Page 31 Glossary (CEU5 Functions) Display Offset Function Count Value Protection Normally the count value returns to "0" after resetting, but with In the past, the count value returned to "0" when the power this function, the initial value can be set to any desired value. supply was cut off, but this function holds the previous value even after a power failure.
  • Page 32 Series Auto Switch Common Specifications Specific Product Precautions Be sure to read before handling. Refer to pages 39 through 41 for auto switch precautions. Auto Switch Common Specifications Type Reed switch Solid state switch Leakage current None 3 wire: 10µA or less 2 wire: 1mA or less Operating time 1.2ms 1ms or less...
  • Page 33 Series Auto Switch Proper Auto Switch Mounting Positions (Stroke End) Contact Protection Box D-A7 and D-A8 type switches do not have built-in contact protection Auto switch circuits. A contact protection box should be used in cases such as when there is an induction load, when lead wires are 5m or longer, and with 100V or 200VAC.
  • Page 34 Series Auto Switch Connections and Examples Basic Wiring Solid state 3 wire, NPN Solid state 3 wire, PNP 2 wire 2 wire (Power supply for switch and load <Solid state> <Reed switch> are the same.) Brown [Red] Brown Brown [Red] [Red] Load Load...
  • Page 35 Series Safety Instructions These safety instructions are intended to prevent a hazardous situation and/or equipment damage. These instructions indicate the level of potential hazard by a label of "Caution", "Warning" or "Danger". To ensure safety, be sure to observe ISO 4414 Note 1) , JIS B 8370 Note 2)
  • Page 36 Series Actuator Precautions 1 Be sure to read before handling. Precautions on design Selection Warning Warning 1. There is a possibility of dangerous sud- 1. Check the specifications. den action by air cylinders if sliding parts The products advertised in this catalogue are designed according of machinery are twisted due to external to use in industrial compressed air systems.
  • Page 37 Series Actuator Precautions 2 Be sure to read before handling. Lubrication Operating Environment Caution Caution 1. Lubrication of non-lube type cylinder. 2. Do not operate in an environment where particulate matter, dust, cutting chips or The cylinder is lubricated at the factory and can be used without any further lubrication.
  • Page 38 Series Auto Switch Precautions 1 Be sure to read before handling. Design & Selection Warning Warning 1. Confirm the specifications. • In the same way, when operating under a specified voltage, although an auto switch may operate normally, the load may not Read the specifications carefully and use this product appropri- operate.
  • Page 39 Series Auto Switch Precautions 2 Be sure to read before handling. Mounting & Adjustment Wiring Warning Warning 1. Do not drop or bump. <Solid state switch> Model D-F9(V), F9W(V) and all models of PNP output type Do not drop, bump or apply excessive impacts (300m/s² or more switches do not have built-in short circuit prevention circuits.
  • Page 40 Series Auto Switch Precautions 3 Be sure to read before handling. Operating Environment Maintenance Warning Warning 1. Never use in an atmosphere of explosive 1. Perform the following maintenance periodi- gases. cally in order to prevent possible danger due to unexpected auto switch malfunction. The structure of auto switches is not intended to prevent explo- sion.
  • Page 41 Series / Specific Product Precautions Be sure to read before handling. Refer to pages 36 through 41 for safety precautions, actuator pre- cautions and auto switch precautions. Mounting Effects of Noise Caution Caution 1. When screwing a nut or fitting, etc. onto the threaded section at When the scale cylinder is used near a motor, welding machine or the end of the piston rod, return the piston rod to its fully retracted other source of noise generation, there is a possibility of miscounting.
  • Page 42 EUROPEAN SUBSIDIARIES: Spain Austria France Netherlands SMC España, S.A. SMC Pneumatik GmbH (Austria). SMC Pneumatique, S.A. SMC Pneumatics BV Zuazobidea 14, 01015 Vitoria 1, Boulevard de Strasbourg, Parc Gustave Eiffel De Ruyterkade 120, NL-1011 AB Amsterdam Girakstrasse 8, A-2100 Korneuburg Phone: +34 945-184 100, Fax: +34 945-184 124 Bussy Saint Georges F-77607 Marne La Vallee Cedex 3 Phone: +31 (0)20-5318888, Fax: +31 (0)20-5318880...
