Series
Counter / Extension Cable

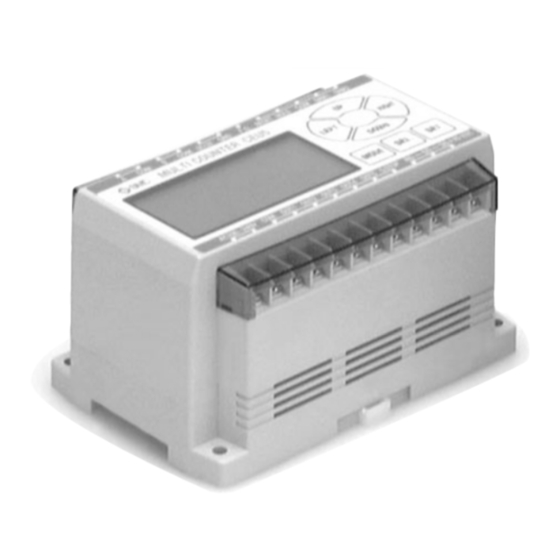

Multi Counter

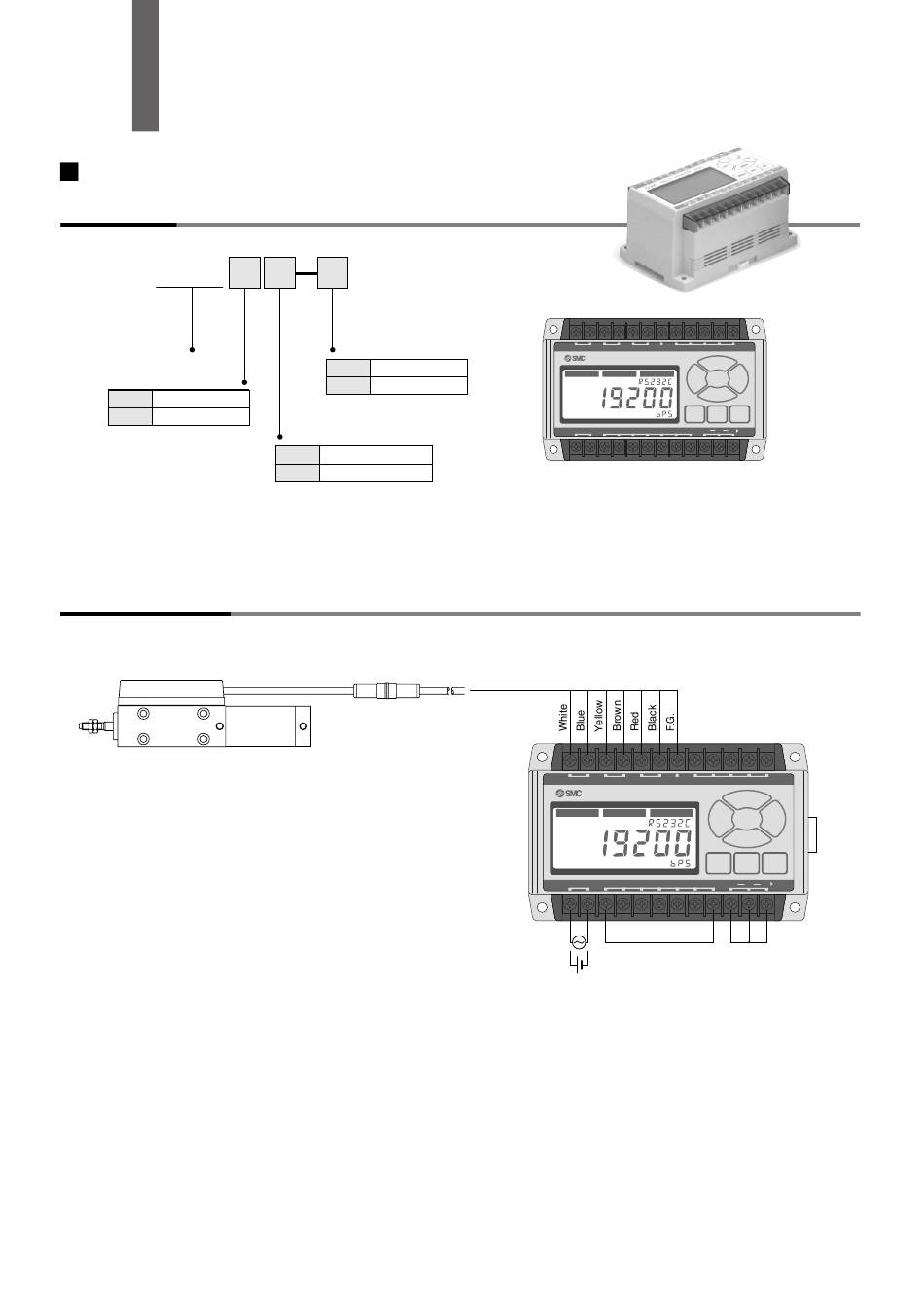

How to Order
CEU5
Basic part number
Output transistor mode
Nil
NPN mode
P
PNP mode
Connection Method
High precision scale cylinder
BCD Connector Specifications
Model (counter side):
DX10M-36S (made by HIROSE ELECTRIC CO., LTD.)
Connector model:
DX30AM-36P (made by HIROSE ELECTRIC CO., LTD.)
Separate arrangements should be made for the
BCD cable with connector.
17
CEU
Series
Power supply voltage
Nil
100 to 240VAC
D
24VDC
External output
Nil
RS-232C
B
RS-232C + BCD
Extension cable
CE
A
COM
B
COM
DC12V GND F.G. R.S. HOLD
MULTI COUNTER : CEU5
COUNT
PRESET
AC100~240V
COM
OUT1OUT2OUT3OUT4OUT5
COM
B
DC12V GND F.G. R.S. HOLD
A
COM
MULTI COUNTER : CEU5
COUNT
PRESET
AC100~240V
COM
OUT1OUT2OUT3OUT4OUT5
• OUT1 to OUT 5
• OUT1 to OUT20 (bank switching)
• Binary output (31 points)
COM
BANK1 BANK2
UP
FUNC.
LEFT
RIGHT
DOWN
MODE
SEL.
SET
S.STOP
RD
SD SG
RS-232C
COM
BANK1 BANK2
UP
FUNC.
RIGHT
LEFT
BCD
DOWN
MODE
SEL.
SET
S.STOP
RD
SD SG
RS-232C
RS-232C
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SMC Networks CEU Series
Summary of Contents for SMC Networks CEU Series
- Page 1 Series Series Counter / Extension Cable Multi Counter How to Order CEU5 Basic part number Power supply voltage DC12V GND F.G. R.S. HOLD BANK1 BANK2 MULTI COUNTER : CEU5 100 to 240VAC COUNT PRESET FUNC. Output transistor mode LEFT RIGHT 24VDC DOWN NPN mode...
- Page 2 CEU5 Series Counter Multi Counter/Specifications CEU5 CEU5-D CEU5P CEU5P-D CEU5B CEU5B-D CEU5PB CEU5PB-D Model Type Multi counter Mounting Surface mounting (DIN rail or screw stop) Operating system Adding - subtracting type Operation modes Operating mode, Data setting mode, Function setting mode Reset system External reset terminal Display system...
-
Page 3: How To Order
CEU1 Series 3 Point Preset Counter How to Order CEU1 R.S. COUNTER: Counter drive power supply CEU1 MODE SHIFT STEP 80 to 120VAC SEL. DATA SET 1 2 OUT 1 2 3 24VDC MONOSASHI-KUN AC100V OUT1 OUT2 OUT3 Output mode selection NPN open collector output PNP open collector output Connection Method... - Page 4 CEU1 Series Counter 3 Point Preset Counter/Specifications Model CEU1 CEU1P CEU1-D CEU1P-D 3 point preset counter Type Surface mounting (DIN rail or screw stop) Mounting Adding - subtracting type Operating system Operation modes Operating mode, Data setting mode External reset terminal Reset system LCD (with back light) Display system...
-
Page 5: Extension Cable
Series Extension Cable How to Order CE1-R Cable length Cable suffix Extension cable Extension cable & connector Extension cable CE1–R Scale cylinder side connector (unit) R04–J8M7.3 CE1–R00C (Made by TAJIMI ELECTRONICS CO., LTD.) CE1–R C... - Page 6 Series Counter Operating Condition of each Output Mode One-shot output Without an allowed value With an allowed value When the counter value passes the sum of the preset When the counter value passes the preset value, output value + the allowed value, output is turned ON for 100ms. is turned ON for 100ms.
- Page 7 Series CEU5 Operation Part names External power Pulse input terminals Control signal input supply DC12V GND F.G. R.S. HOLD BANK1BANK2 MULTI COUNTER : CEU5 BCD output connector Display PRESET FUNC. COUNT (on side) LEFT RIGHT DOWN MODE SEL. Operation keys RS-232C AC100~240V OUT1 OUT2 OUT3 OUT4 OUT5...
- Page 8 Series Counter Mode cycle using mode key Basic Operation • SET key : In any of the conditions (1) through (5), this writes the display data into the memory and shifts to (1). • SEL. key : Shifts to the next item, but does not write data. •...
- Page 9 Series CEU5 Operation Explanation of settings in the function mode If the UP/DOWN keys are pressed when an item name is flashing, it shifts to another setting item. When the SEL. key is pressed, the cursor shifts and it is possible to change the content of the setting for the item which is being displayed. Item name 3 -1 FUNC.
- Page 10 Series Counter FUNC. FUNC. DOWN 3 -3 SEL. key Stop output • Set numerical values with the • When the SEL. key is pressed while direction keys. STOP is flashing, the setting mode • The unit is 0.1sec. is selected for the stop output •...
-
Page 11: Keys And Functions
Series CEU1 Operation External Pulse input terminals Reset input power supply Count value, preset value, allowable value and output configuration settings Mode indicator Operation keys Output and output selection indicators Power supply Output terminals Keys and functions Function Switches between the count mode and the setting mode. MODE Switches digits for preset data input and allowable value input. - Page 12 Series Counter This is the mode when the counter is being operated. Count mode When the power is turned on, this mode is automatically selected. MODE Flashing cursor The minus sign appears at the far left side. Flashes during setting. There is no indication for positive numbers.
- Page 13 Series Glossary (CEU5 Functions) BCD Output Bank Function This is a system which expresses one digit of a decimal number 5 points of preset output are possible simultaneously, however, a with a 4 digit binary number. maximum of 20 types of work discrimination, etc. can be The count value is expressed by the ON/OFF state of each BCD performed by using the 5 points of preset values as one of a output terminal.
- Page 14 Glossary (CEU5 Functions) Display Offset Function Count Value Protection Normally the count value returns to "0" after resetting, but with In the past, the count value returned to "0" when the power this function, the initial value can be set to any desired value. supply was cut off, but this function holds the previous value even after a power failure.
