- Page 1 C A R E D ES I G N IMPULSE SERIES INSTRUCTIONS FOR USE...
- Page 3 Dear Customers, By purchasing a care bed from Malsch care & clinic design ® you have obtained a long-lasting medical device with func- tions that meet all the requirements of everyday care while maintaining the highest standards of safety. We would like to thank you for the trust you have placed in us.
-
Page 4: Table Of Contents
C O N T E N T S The products Release mechanism of the Back rest/CPR (optional) Specific function Upper leg section Environmental sustainability Height adjustment Note regarding the instructions for use Transfer position Pictograms/symbols Low position/ Safety instructions fall prevention Technical data Comfort sitting position Low voltage drive system... - Page 5 Delivery and assembly Maintenance Accessories (optional) Storage Trapeze bar Warranty and service Intravenous drip holder Declaration of conformity Bedside light Certificates Integrated bed extension Hand controller holder Horizontal hand controller Side rail height extension/ triple side rail Troubleshooting Product safety Cleaning and disinfection Disinfection Care of wooden parts...
-
Page 6: The Products
T H E P R O D U C T S Impulse Ambiente Impulse 400 Impulse XL Impulse 400 LR 100... -
Page 7: Specific Function
E N V I R O N M E N T A L S U S T A I N A B I L I T Y Betten Malsch GmbH care beds are used in the care sector Betten Malsch GmbH care beds are manufactured in accord- and in senior citizen facilities. -
Page 8: Note Regarding The Instructions For Use
N O T E R E G A R D I N G T H E P I C T O G R A M S / S Y M B O L S I N S T R U C T I O N S F O R U S E The following instructions and guidelines in this manual are For ease of reference, we sometimes use pictograms in this intended for nursing staff or other persons and staff tasked... -
Page 9: Safety Instructions
13 of this instruction manual. 11. The Impulse series is equipped with an emergency mode powered by batteries. This allows the one-off lowering of In the event of any fault or failing which could endanger the reclining surface in the event of a power cut. - Page 10 and model of the care bed and are based on the height extended position. The mattress used must meet the adjustment and tilting motions of the bed. The minimum applicable safety standards. distance is 30 mm. Any continual liquid in the motorised area must be 17.
- Page 11 and are subject to technical safety checks in accord- products and must be listed in an inventory for each ance with the Medical Device Directive and Medical site in accordance with the Medizinprodukte Betrei- Device Operator Ordinance Section 6. These regular berverordnung (MedProd-BetrV), the Medical Prod- safety checks must be carried out at least once a year.
-
Page 12: Technical Data
T E C H N I C A L D A T A Low voltage drive system Dimensions: approx. Impulse 400 (LR 100) 206 x 100 cm (SMPS switching power supply) Impulse Ambiente 206 x 100 cm Electrical connection: 240V≈ 50Hz Impulse XL 206 x 110 cm Output voltage:... -
Page 13: Rating Plate
R A T I N G P L A T E Betten Malsch GmbH | Rohbergstraße 9 | D-36208 Wildeck-Obersuhl Tel.: +49 (0)6626 / 915 100 | Fax: +49 (0)6626 / 915 116 CARE BED Impulse 400 0815 1234567 225 kg... -
Page 14: Symbols On The Hand Controller For Low Voltage System
S Y M B O L S O N T H E H A N D C O N T R O L L E R F O R L O W V O L T A G E S Y S T E M Head section Head section adjustment... - Page 15 Locking function on the back of the hand controller for restricting operation by occupants. LOCKED No functions operational UNLOCKED All functions available OCCUPANT SETTING All functions available except S10/S12 UNLOCKED All functions available...
-
Page 16: Functions
F U N C T I O N S Full length side rail Latch for Adjustable side rail back rest Trapeze bar mount at the head of the reclining surface on Adjustable both sides upper leg section Adjustable Mount for IV lower leg section drip holder and Erectable... -
Page 17: Split Side Rail
Split side rail Adjustable back rest Trapeze bar mount Adjustable at the head of the upper leg section reclining surface on Adjustable both sides lower leg section Mount for IV drip holder and Integrated Adjustable accessories bed extension split side rails (GS V3 Telescopic Bed panel... -
Page 18: Description Of Function
D E S C R I P T I O N O F F U N C T I O N Depending on the design and type of care bed, the bed can Then press the button on the hand controller upwards (S1) be put into the following positions by adjusting the back rest, until an audible locking sound can be heard. -
Page 19: Height Adjustment
Height adjustment When the button is activated, the bed moves down out of the transfer position and into the low position. Use the corresponding buttons on the hand controller to ad- just the height. Caution! Before activating the button, you must ensure that the lowered, split side rails (Height adjustment operating buttons) are retracted ( F p. -
Page 20: Auto Contour
Auto contour (Trendelenburg/anti-Trendelenburg operating buttons) (not for Impulse Ambiente) Use the corresponding buttons on the hand controller to set auto contour. Caution! Please consider the safety of the oc- cupant when adjusting the bed inclination. No (Auto contour operating buttons) foreign objects should be located in the area When this function is activated, the back and upper leg of the lifting mechanism. -
Page 21: Braking And Moving
Braking and moving Impulse XL The Impulse XL model (movable at Impulse Ambiente any height) has a central castor lock- ing mechanism which is mechanical- With the reclining surface in the low- ly operated with a central foot pedal. est position, hold down button S8 The foot pedal is located in the mid- on the hand controller and press the dle of the foot area of the moveable... - Page 22 Impulse 400 Caution! The Impulse 400 (LR 100) care beds can be moved to any height position permit- The Impulse 400 model (movable ted by the reclining surface. This should only at any height) has a castor locking be done in exceptional cases and under the mechanism for each axle which is supervision of care staff.
-
Page 23: Side Rail Adjustment
Side rail adjustment Full length side rail In the down position, the side rails are located on top of each other beside the reclining surface frame. Upper side rail (B) Raising function: Lift up the upper side rail (B) until you hear the safety bolt (A) lock into place. -
Page 24: Split Side Rail Gs
Side rail adjustment GS Caution! When positioning the side protection Split side rail GS and raising the side rails, please ensure the catches lock into place properly and check In the down position, the side rails are located on the them. -
Page 25: Split Side Rail Vgs
Side rail adjustment VGS Split side rails VGS In the standby position, the side rails are located next to the reclining surface. In this position, they prevent the mattress from slipping. To raise the side rail, pull it upwards with both hands un- til it engages with an audible click. -
Page 26: Delivery And Assembly
D E L I V E R Y A N D A S S E M B L Y Betten Malsch GmbH care beds are generally delivered fully assembled, or are assembled on site by company technicians or authorised personnel. -
Page 27: Accessories (Optional)
A C C E S S O R I E S ( O P T I O N A L ) Trapeze bar The trapeze bar can be inserted to the left and right of the head end in the designated mounting sockets on the reclin- ing surface frame. -
Page 28: Integrated Bed Extension
Integrated bed extension Beds that are factory fitted with an integrated bed extension (optional) can be extended by up to 20 cm without the need for tools. In this case, the existing side rails must be replaced with full length side rails. The bed can be extended manually in three simple steps by means of two locking bolts at the lower foot end: Pull both locking bolts upwards and turn them to the... -
Page 29: Hand Controller Holder
If this results in or as a handle. the mattress depth increasing to more than 16 cm, Betten Malsch GmbH offers a flexible side rail height extension or the use of a triple side rail. Horizontal hand controller A horizontal hand controller is... -
Page 30: Troubleshooting
Hand controller operator, retailer hand controller retailer or Betten hand controller or motor is faulty or Betten Malsch buttons Malsch GmbH GmbH Activate mains Mains cut-off is not Check all moving activated (only for cut-off by pressing... -
Page 31: Product Safety
P R O D U C T S A F E T Y The product bears the CE marking and thus meets the requirements of German and European safety standards applicable to that product. Standard Comment Medical device in accordance with 93/42/ EEC Medical Device Directive (CE marking) German Medical Products Law (MPG) DIN EN ISO 9001 Quality management system... -
Page 32: Cleaning And Disinfection
Care of wooden parts Malsch care beds only use wooden parts that are finished in compliance with the DIN 68861-1A standard. The aim is to produce a comfortable design, maximum functionality and a high level of practical use. To ensure you are able to enjoy this product for as long as possible, we recommend cleaning with commercial furniture cleaning products and polishes. -
Page 33: Maintenance
(temperature, humidity, heat, etc.) must be reported to the relevant person. Only original parts from Betten Malsch GmbH The manufacturer’s transport aid should be should be used. used to transport the beds. -
Page 34: Warranty And Service
A N D S E R V I C E C O N F O R M I T Y By purchasing a care bed from Betten Malsch GmbH, you have chosen a premium, high-quality product. The care beds have a 24-month warranty beginning from the purchase date. -
Page 35: Certificates
TÜV PROFiCERT procedures for and is certified in accordance with TÜV PROFICERT procedures for and is certified in accordance with TÜV PROFICERT procedures for Betten Malsch GmbH Betten Malsch GmbH Betten Malsch GmbH Rohbergstraße 9 Rohbergstraße 9... - Page 36 Art. No. 91300 100001.8 EN, Edition 01/2020, Rev. 1.8 Colours may vary Technical modifications reserved Betten Malsch GmbH | Rohbergstraße 9 | 36208 Wildeck-Obersuhl | GERMANY Phone: +49 (0)6626 / 915 100 | Fax: +49 (0)6626 / 915 116 bettenmalsch.com | info@bettenmalsch.de...
Need help?
Do you have a question about the Impulse Series and is the answer not in the manual?
Questions and answers

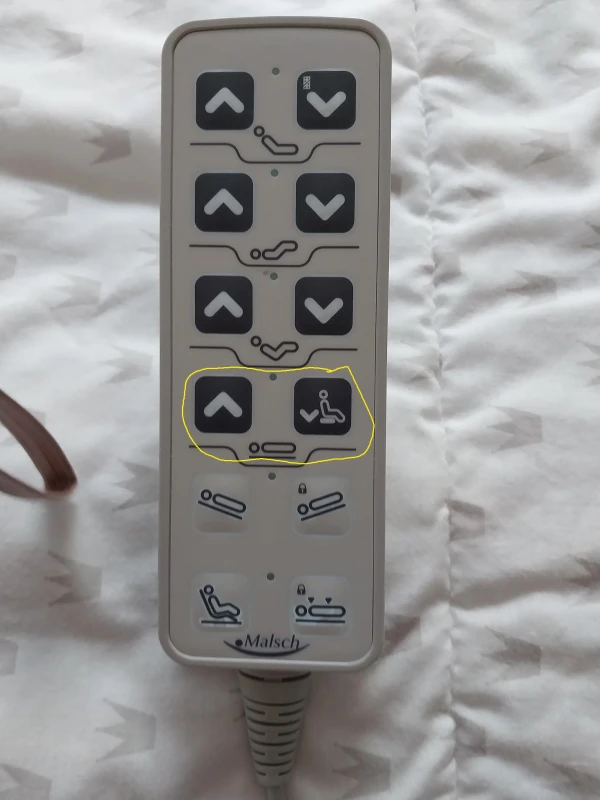

HB-400 HAND CONTROLLER S7 LIFT ADJUSTMENT UP DOESNT GO UP
The HB-400 hand controller may not allow the S7 lift adjustment to go up if the controller is in the R1 LOCKED position, which restricts all functions.
This answer is automatically generated
Control is orange lights and bed not able to mve
The orange lights on the Malsch Impulse Series control are flashing, and the bed is not moving because the motor system has likely cut out due to exceeding the safe working load or prolonged operation, causing overheating. To resolve this, allow the motor system to cool down properly before attempting to use the bed again. Additionally, check if the mains cable is plugged in, ensure the socket is live, and verify all cable connections. If the issue persists, contact the operator, retailer, or Betten Malsch GmbH for further assistance.
This answer is automatically generated
