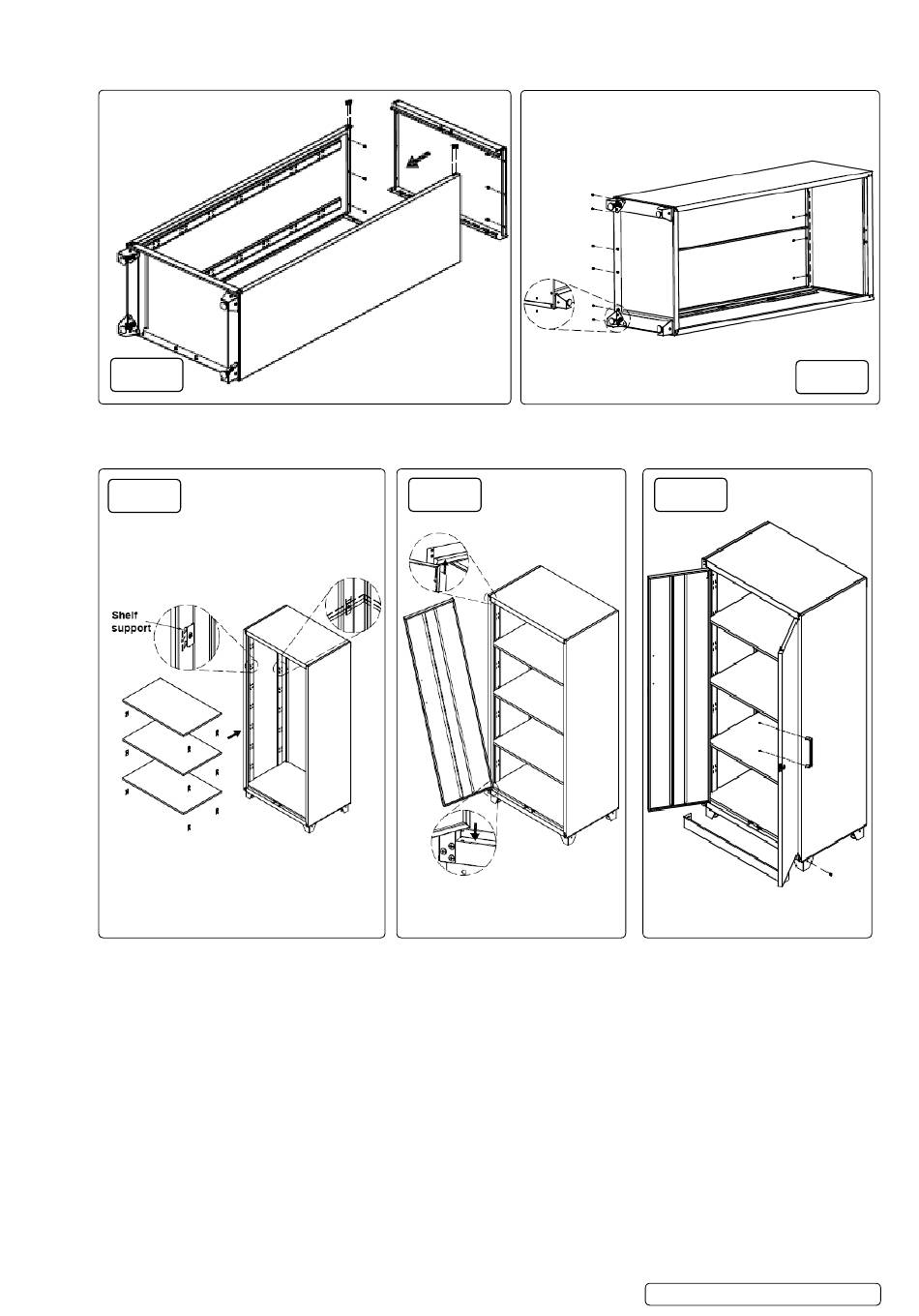

4.8. Attach the top panel to the side panels with 6pcs of M6X12mm cross head bolt, fig.5.
4.9. Fix the front of the top panel and the front of the side panel together using 4pcs of M6X12mm cross head bolt, fig.5.
fig.5
4.10. tilt the cabinet on to its side and secure the bottom panel to the back panel with 6pcs of M6X12mm cross head bolt, fig.6.
4.11. tighten the top panel and back panels securely with 4pcs of M6X12mm cross head bolt, fig.6.
4.12. stand the cabinet upright. use two people to complete this task.
fig.7
4.13. fit the shelves at the desired heights by lowering the shelf onto the appropriate set of shelf supports. Press the shelf firmly until locked
onto the shelf support, fig.7.
4.14. the shelves can be adjusted at any time by lifting them off and repositioning, fig.7.
4.15. the doors have a pin at the bottom and a spring bolt at the top. To fit the doors, drop the pin into the hole in the front of the base and
then pull the bolt until it locates in the hole in the top rail. Release the bolt to attach the door, fig.8.
4.16. install both door handles with M4x8mm cross head bolts, see fig. 9.
4.17. Adjust the four adjustable feet to level the cabinet, see fig. 9.
4.18. install the skirting board with 2pcs of M6X12mm cross head bolt, see fig. 9.
