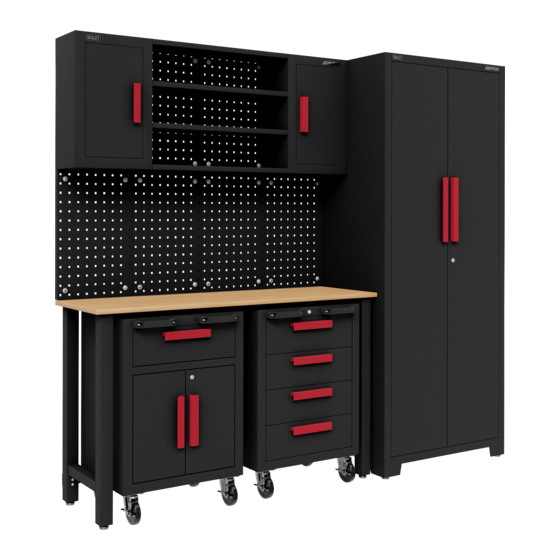

Sealey APMS12OP Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to wear eye
instruction protection during
manual assembly
1. SAFETY
WARNING! Use two or more people to move, assemble, and install the product to avoid any injury.
‰
WARNING! DO NOT leave children unattended near the product.
‰
WARNING! DO NOT stand on the product or lean on the drawers or worktop.
‰
WARNING! Wear safety glasses when removing or repositioning the slides. The tools could slip, which may cause personal injury.
‰
WARNING! DO NOT alter the product in any manner. For example, do not weld external lock bars or attach unapproved electrical
‰
equipment. This may cause product damage, or injury.
WARNING! DO NOT overload products! The components of the product are designed to carry the following maximum weight capacities:
‰
WARNING! Ensure Health & Safety, local authority, and general workshop practice regulations are adhered to when using these cabinets.
‰
WARNING! Use the cabinets on level and solid ground, preferably concrete.
‰
WARNING! Panels must be wall mounted. This is not a freestanding modular system.
‰
DANGER: Be careful when opening more than one drawer. The product could become unstable and tip. Which may cause product
▲
damage or personal injury.
DANGER: High risk of tipping if the product is not installed corectly. Securely attach the product to the wall to avoid serious injury.
▲
DO NOT use these cabinets for any purpose other than that for which they are designed.
8
DO NOT use the cabinets outdoors.
8
DO NOT place the cabinets in a damp or wet location or an area where there is condensation.
8
DO NOT clean the cabinets with any solvents which may damage the surfaces or the protective coating.
8
2. INTRODUCTION
Complete your garage or workshop with this stylish complete garage storage solution. All units are powder coated to protect against
scratches, mild solvents and general workshop use. Fully welded units offer a strong and professional finish conveniently packed and
delivered in one tidy pallet. Pegboard design wall panels allow for additional storage whilst protecting the wall behind the workbench.
Some simple assembly is required.
3. SPECIFICATION
Cabinet
Locker
Wall Cabinet
1- drawer roller
cabinet
4- drawer roller
cabinet
52 inch workbench
4. CONTENTS
NO. DESCRIPTION
1 M6 HEX FLANGE
NUT
2 FLAT WASHER
© Jack Sealey Limited
STORAGE SYSTEM WITH MOBILE TROLLEY X 2
MODEL NO:
Shelf Weight Drawer Weight
Capicity (Kg.) Capicity (Kg.)
68.0 -
- -
45.3 31.8x1
- 31.8x4
- -
WALL
CABINET LOCKER
X2 X1
8 x 2 4
4 x 2 4
Original Language Version
APMS12OP
Bottom Weight
Capicity (Kg.)
99.7
22.6
45.3
-
-
1-DRAWER 4-DRAWER
R CABINET R CABINET
X1 X1
0 0
0 0
Top Weight Overall Weight Capicity (Kg.)
Capicity (Kg.)
68.0
-
45.3
45.3
362.8
52IN PEGBOARD
WORKBENCH
X 1 X 6
0
0
APMS12OP Issue 1 30/08/23
371.9
22.6
167.8
172.3
362.8
0
4 x 6
