Sealey APMS63 Quick Start Manual

thank you for purchasing a Sealey product. manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear
instruction protective
manual gloves
1. Safety
WarninG! ensure Health & Safety, local authority, and general
‰
workshop practice regulations are adhered to when using this
locate cabinet in a suitable work area.
9
Keep the work area clean, uncluttered and ensure there is adequate
9
lighting.
WarninG! Use cabinet on level and solid ground, preferably concrete.
‰
Keep the cabinet clean and tidy in accordance with good workshop
9
practice.
Keep children and unauthorised persons away from the work area.
9
do not use the cabinet for any purpose other than that for which it is
8
designed.
do not use the cabinet outdoors.
8
do not place the cabinet in a damp or wet location or an area where
8
there is condensation.
do not clean the cabinet with any solvents which may damage the
8
surfaces or the protective coating.
do not move the cabinet when there are items placed inside.
8
do not step on the shelves.
8
do not overload the cabinet.
8

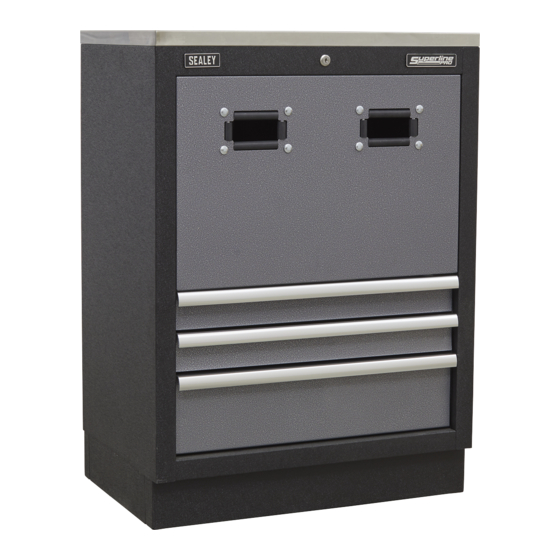

2. introduction
n.B. IllUSTRATed WITH oPTIonAl WoRKToP - don't forget to order your choice of pressed wood or stainless steel separately. Use as
part of a complete garage storage system or as an individual storage unit. Solid reel cabinet for convenient and tidy use of cable reels and air
hose reels. Aluminium handles. option of stainless steel or pressed wood worktop. Suitable for use with Sealey Air Reel SA895 and cable reels
CRm101 and CmR151.
3. SPecification
model no: ................................................................. APmS63
Size (W x d x H):.....................................680 x 460 x 910mm
Small drawer (x2): .....................................565 x 400 x 60mm
large drawer (x1): ...................................565 x 400 x 135mm
4. aSSembly
SteP 1:
Remove drawers (see right)
© Jack Sealey limited
680mm modular reel cabinet
aPmS63
model no:
drawer weight capacity: ................................................. 20kg
SteP 2:
Remove
front
panel
one each side
Original Language Version
cabinet.
APmS63 Issue 1 30/10/19
