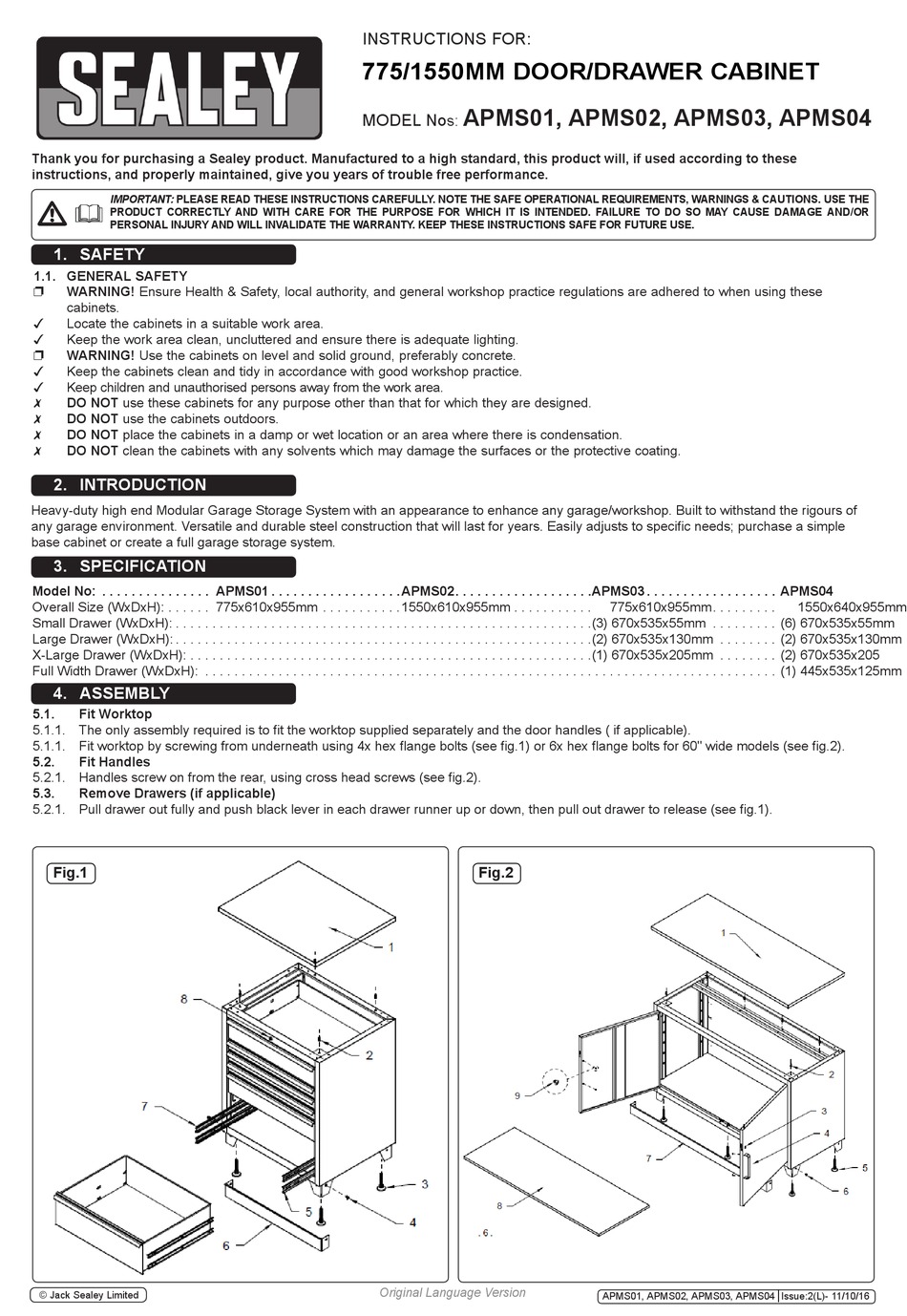

Sealey APMS01 Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE THE
PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
1.1. GENERAL SAFETY
WARNING! Ensure Health & Safety, local authority, and general workshop practice regulations are adhered to when using these

cabinets.
Locate the cabinets in a suitable work area.

Keep the work area clean, uncluttered and ensure there is adequate lighting.

WARNING! Use the cabinets on level and solid ground, preferably concrete.

Keep the cabinets clean and tidy in accordance with good workshop practice.

Keep children and unauthorised persons away from the work area.

DO NOT use these cabinets for any purpose other than that for which they are designed.

DO NOT use the cabinets outdoors.

DO NOT place the cabinets in a damp or wet location or an area where there is condensation.

DO NOT clean the cabinets with any solvents which may damage the surfaces or the protective coating.

2. INTRODUCTION
Heavy-duty high end Modular Garage Storage System with an appearance to enhance any garage/workshop. Built to withstand the rigours of
any garage environment. Versatile and durable steel construction that will last for years. Easily adjusts to specific needs; purchase a simple
base cabinet or create a full garage storage system.
3. SPECIFICATION
Model No: . . . . . . . . . . . . . . . APMS01 . . . . . . . . . . . . . . . . . .APMS02. . . . . . . . . . . . . . . . . . .APMS03 . . . . . . . . . . . . . . . . . . APMS04
Overall Size (WxDxH): . . . . . . 775x610x955mm . . . . . . . . . . .1550x610x955mm . . . . . . . . . . .
Small Drawer (WxDxH): . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .(3) 670x535x55mm . . . . . . . . . (6) 670x535x55mm
Large Drawer (WxDxH): . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .(2) 670x535x130mm . . . . . . . . (2) 670x535x130mm
X-Large Drawer (WxDxH): . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .(1) 670x535x205mm . . . . . . . . (2) 670x535x205
Full Width Drawer (WxDxH): . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (1) 445x535x125mm
4. ASSEMBLY
5.1. Fit Worktop
5.1.1. The only assembly required is to fit the worktop supplied separately and the door handles ( if applicable).
5.1.1. Fit worktop by screwing from underneath using 4x hex flange bolts (see fig.1) or 6x hex flange bolts for 60" wide models (see fig.2).
5.2. Fit Handles
5.2.1. Handles screw on from the rear, using cross head screws (see fig.2).
5.3. Remove Drawers (if applicable)
5.2.1. Pull drawer out fully and push black lever in each drawer runner up or down, then pull out drawer to release (see fig.1).
Fig.1
© Jack Sealey Limited
INSTRUCTIONS FOR:
775/1550MM DOOR/DRAWER CABINET
APMS01, APMS02, APMS03, APMS04
MODEL No
s:
Fig.2
Original Language Version
775x610x955mm. . . . . . . . .
APMS01, APMS02, APMS03, APMS04 Issue:2(L)- 11/10/16
1550x640x955mm
