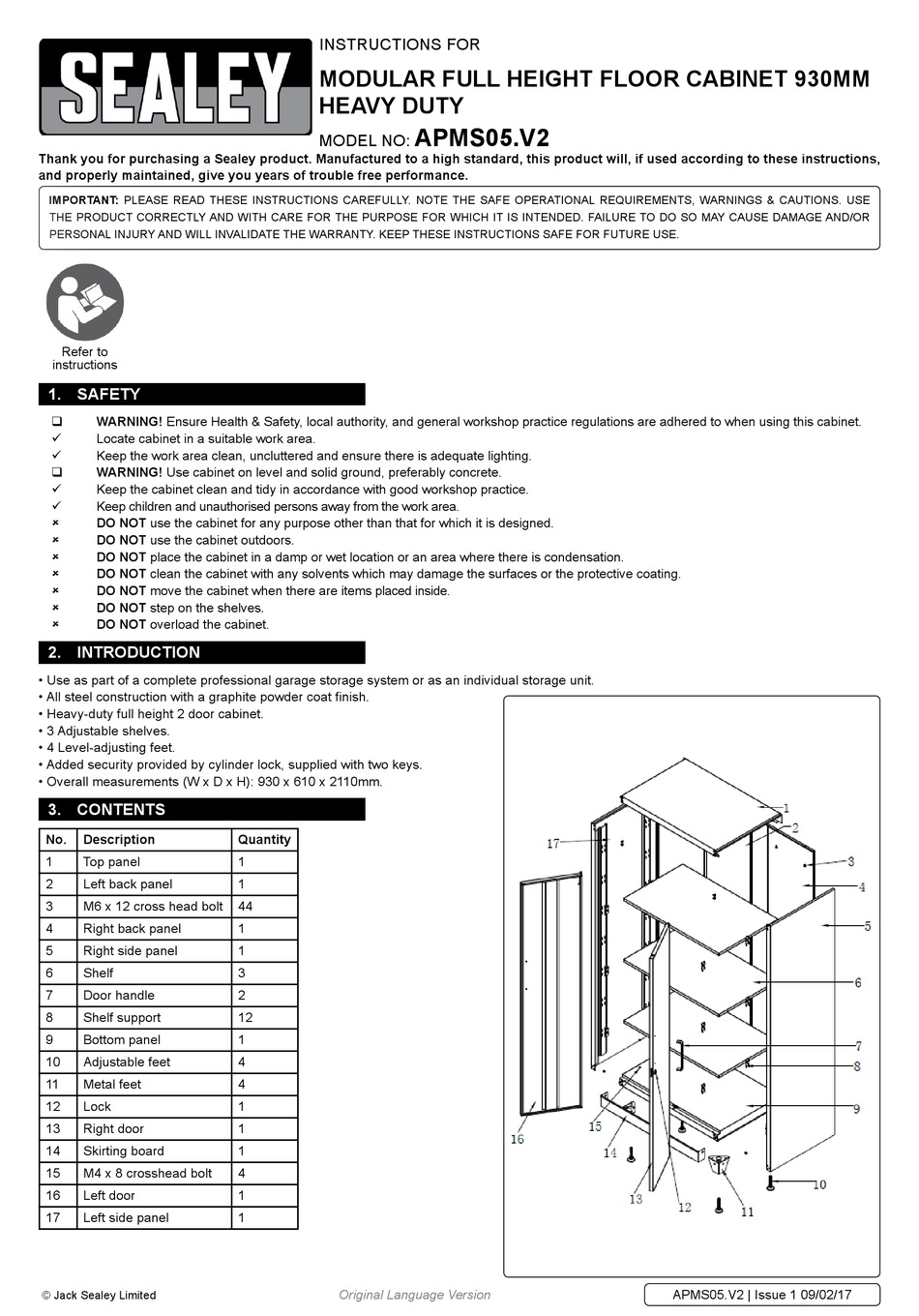

Sealey APMS05.V2 Instructions

thank you for purchasing a Sealey product. manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
refer to
instructions

1. Safety

Warning! ensure Health & safety, local authority, and general workshop practice regulations are adhered to when using this cabinet.
‰
locate cabinet in a suitable work area.
9
Keep the work area clean, uncluttered and ensure there is adequate lighting.
9
Warning! use cabinet on level and solid ground, preferably concrete.
‰
Keep the cabinet clean and tidy in accordance with good workshop practice.
9
Keep children and unauthorised persons away from the work area.
9
do not use the cabinet for any purpose other than that for which it is designed.
8
do not use the cabinet outdoors.
8
do not place the cabinet in a damp or wet location or an area where there is condensation.
8
do not clean the cabinet with any solvents which may damage the surfaces or the protective coating.
8
8 8 do not move the cabinet when there are items placed inside.
8 8
8 8 do not step on the shelves.
8 8
8 8 do not8overload the cabinet.
8 8

2. introduction

• Use as part of a complete professional garage storage system or as an individual storage unit.
• All steel construction with a graphite powder coat finish.
• Heavy-duty full height 2 door cabinet.
• 3 Adjustable shelves.
• 4 Level-adjusting feet.
• Added security provided by cylinder lock, supplied with two keys.
• Overall measurements (W x D x H): 930 x 610 x 2110mm.

3. contentS

no. description
1 top panel
2 left back panel
3 m6 x 12 cross head bolt
4 right back panel
5 right side panel
6 shelf
7 door handle
8 shelf support
9 bottom panel
10 Adjustable feet
11 metal feet
12 lock
13 right door
14 skirting board
15 m4 x 8 crosshead bolt
16 left door
17 left side panel
© Jack sealey limited
instructions for
modular full height floor cabinet 930mm
heavy duty
model no:
Quantity
1
1
44
1
1
3
2
12
1
4
4
1
1
1
4
1
1
Original Language Version
aPmS05.v2
APMS05.V2 | Issue 1 09/02/17
