Summary of Contents for Additel 680

  • Page 3: Table Of Contents

    CONTENTS 1. Introduction… … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … …1 2.

  • Page 4: Introduction

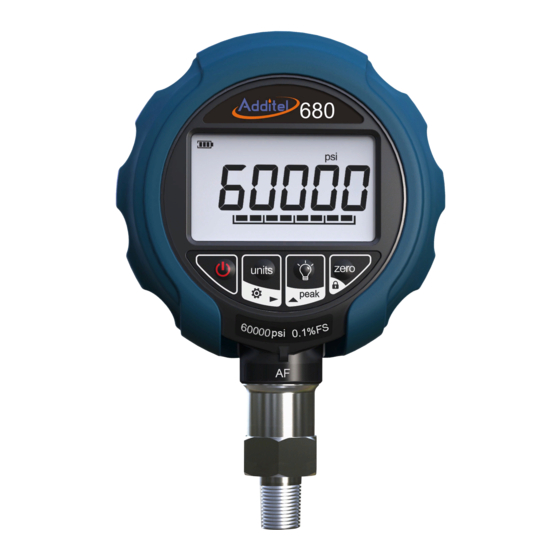

    Digital Pressure Gauge Introduction The ADT680 digital pressure gauge is a rugged wireless data logging pressure gauge that can log in real time, or data which can be stored and downloade d later via wireless communication. The compact industrial design and advanced technology makes the ADT680 as an ideal pressure measurement tool. The ADT680 combines a variety of accuracy levels with a robust IP67 water-and-dust proof casing.

  • Page 5: Keypad

    Digital Pressure Gauge keypad Push the button->Switch engineering units Push the button->Backlight on/off Pressure display: Pressure display: Push and hold the button->Enter menu Push and hold the button->Min/Max setup mode value Push the button->Move forward Push the button->Move backward Menu setup mode: Menu setup mode: through menus / through menus...

  • Page 6: Display

    Display Keypad lock icon Data logging icon Wireless signal icon Engineering units Battery bar graph 5 digit display Percentage bar graph Menu icons Absolute pressure Start-up screen Full screen display Software version Upper range value Live pressure display Lower range value...

  • Page 7: Menu Setup And Configuration

    Menu setup and configuration 6.1 Menu structure Year Month:day Hour:min Second Pressure reading interval (unit:second) Rate Delay time before auto off (unit:minute) Auto off Gauge does not auto off Backlight auto off time (unit:second) Backlight time Backlight does not auto off Average filter Average measure 1ORD...
  • Page 8 inH₂O(20℃) inH₂O(60℉) mmH₂O(20℃) mmH₂O(15℃) Extended units ftH₂O(60℉) ftH₂O(4℉) Set factor for custom units( Refer to specification) Calibration(See calibration section on page 8) 1.cal View overpressure records ( Refer to specification) Cancel/recover calibration data 2.c-00 Cancel pressure zero 3.clr Calibration 4.abs Tare setting( Refer to specification) - Gauge Absolute pressure zeroing- Absolute Overpressure status: 1 means YES, 0 means NO.
  • Page 9 6.2 Menu operation 6.2.1 Enter /Return units Push and hold button in the pressure display mode to enter menu setup mode. Push button in menu setup mode to return to previous menu. Example: Menu1 (Average measure) Pressure display units Push and hold Push 6.2.2 Switch menu item Push...
  • Page 10 Example: Move menu1(Average measure) forward to menu2(Backlight setup) units Move menu1(Average measure) backward to menu10(Extended units) 6.2.3 Submenu setup units Push to access submenu setup, push to view options, then push to select zero zero an option, or push to recover former option. Example: zero The current option will blink...

  • Page 11: Calibration

    6.2.4 Number inputting introduction units Highlight shift right If number incrementing exceeds the maximum display, it will return to 0 Confirm the inputted number zero (ESC)Cancel the inputted number units If need to input minus sign "-", push and hold button.
  • Page 12 7.2 Calibration Points (1) Single scale gauge: We recommend at least two pressure calibration points should be used when calibrating the 680 gauge. Usually at 0 and 100% of full scale(Vacuum gauge should use vacuum point). (1) The first point should be smaller than the second point.
  • Page 13 7.3 Calibration Process For a calibration example we will use a kPa gauge (0~100) (1) Access the calibration menu in Menu setup mode(refer to Menus operation section), zero Figure 1 will display on the screen. Next push button to enter Menu setup, Figure 2 will be displayed.
  • Page 14 Figure5 Figure6 Figure7 Figure8 (3) To calibrate the lower range point: Use the pressure source to control the lower range zero pressure, for this example is the lower point. After the reading is stable, push to confirm, then the screen will prompt the user for the next calibration point, which in this example is kPa (the upper range), as shown in Figure .

  • Page 15: Troubleshooting

    Means calibration take effect Means have been calibrated Means calibration has been canceled Figure9 Figure10 8 Troubleshooting ERR1 displayed: Beyond zeroing range of 2%FS ERR2 displayed: Sensor data out of limit contact Additel Corporation ERR3 displayed: Sensor damaged, contact Additel Corporation...
  • Page 16 Custom Unit Entry (2) Press key until you see TOOL at the bottom. Then press to enter the TOOL menu. (Number x kPa). The default number is 1. The flashing number is what can be adjusted. Note that at this point we are not modifying the decimal, just the main integers (i.e.
  • Page 17 (GP15) gauge and put a custom unit of 900 then the custom will be accepted because the max pressure of this gauge would display as 90000 (100 kPa x 900). But if you try and program 1000 as my custom unit it will not be accepted because the max value would be above the 5 digit resolution (100 kPa x 1000 = 100000 kPa).

  • Page 18: Specifications

    Specifications Pressure Ranges Gauge Pressure Pressure Pressure Burst range range Media Accuracy (%FS) Pressure (psi) (bar) -1.0 G, L 0.05 (0.1, 0.25) GP15 G, L 0.05 (0.1, 0.25) GP30 G, L 0.05 (0.1, 0.25) GP100 G, L 0.05 (0.1, 0.25) GP300 G, L 0.05 (0.1, 0.25)
  • Page 19 Performance Recommended One year calibration period Update rate 10/Sec、3/Sec (default)、1/Sec、1/15Sec Operating temperature -10℃~50℃ Guaranteed accuracy Overload pressure 1.2X Power Supply 2 x AA alkaline (LR6) batteries Battery Recommend: Duracell MX1500 、EnergizerE91、Panasonic LR6、GP 15AU 10/Sec:1,500 Hours、3/Sec:3,000 Hours、1/Sec:6,000 Hours、1/15Sec:12,000 Hours Battery life Rated Power Rated 3.0 VDC Imax=30 mA Pmax =90 mW...
  • Page 20 White Wireless Communication(optional) Wireless frequency 2.4G ISM Bands, 20 meter range Number of channels Additel/Land software available for free download at www.additel.com. Software Additel/Log II Wireless available for purchase. Storage Storage capacity 140,000 records, recorded contents include time, pressure and temperature...
  • Page 21 This allows users to set a multiplier factor to be multiplied by the kPa measured pressure. For example: 2 kPa =0.02 bar (2*0.01)， factor ：0.01， a 2 kPa pressure will display as 0.02. ( ADT 680 can be set by the factory or via the Land / Wireless software ) ) Backlight duration...

  • Page 22: Warning

    Additional functions View the 5 most recent over pressure records by inputting pass word “888” in Overpressure the Calibration menu, when screen is shown as Figure 2, Page10. records Detect pressure leakage over a period of time. The gauge will auto-record Leakage test beginning pressure value, ending pressure value and leakage ΔP.

  • Page 23: Fcc Declaration Of Conformity

    FCC Declaration of Conformity Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired FCC &...
  • Page 24 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. installation. This equipment generates, uses and can radiate radio frequency energy. If not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 25: Battery Installation

    Battery installation...

  • Page 26: Ordering Information

    Pressure range See pressure range table GP300 Manual P/N: NIST traceable calibration certificate Model 9253 Rubber protective boot Additel/Land Wireless software for 680W PSI-range by psi Range type: (free download at www.additel.com) BAR-range by bar Optional Accessories Model number Description...

  • Page 27: Appendix I- Data Logging

    Appendix I– Data logging Data logging introduction (1) Push and hold button to access to menu setup mode and move to log function. units (2) If the data logging is ongoing, the gauge screen will show "ON" and the icon, otherwise "OFF"...
  • Page 28 Additel Corporation 2900 Saturn St #B Brea, CA 92821, USA Phone: 714-998-6899 Email: service@additel.com website: www.additel.com...
