Summary of Contents for Te Pari Taurus HD3

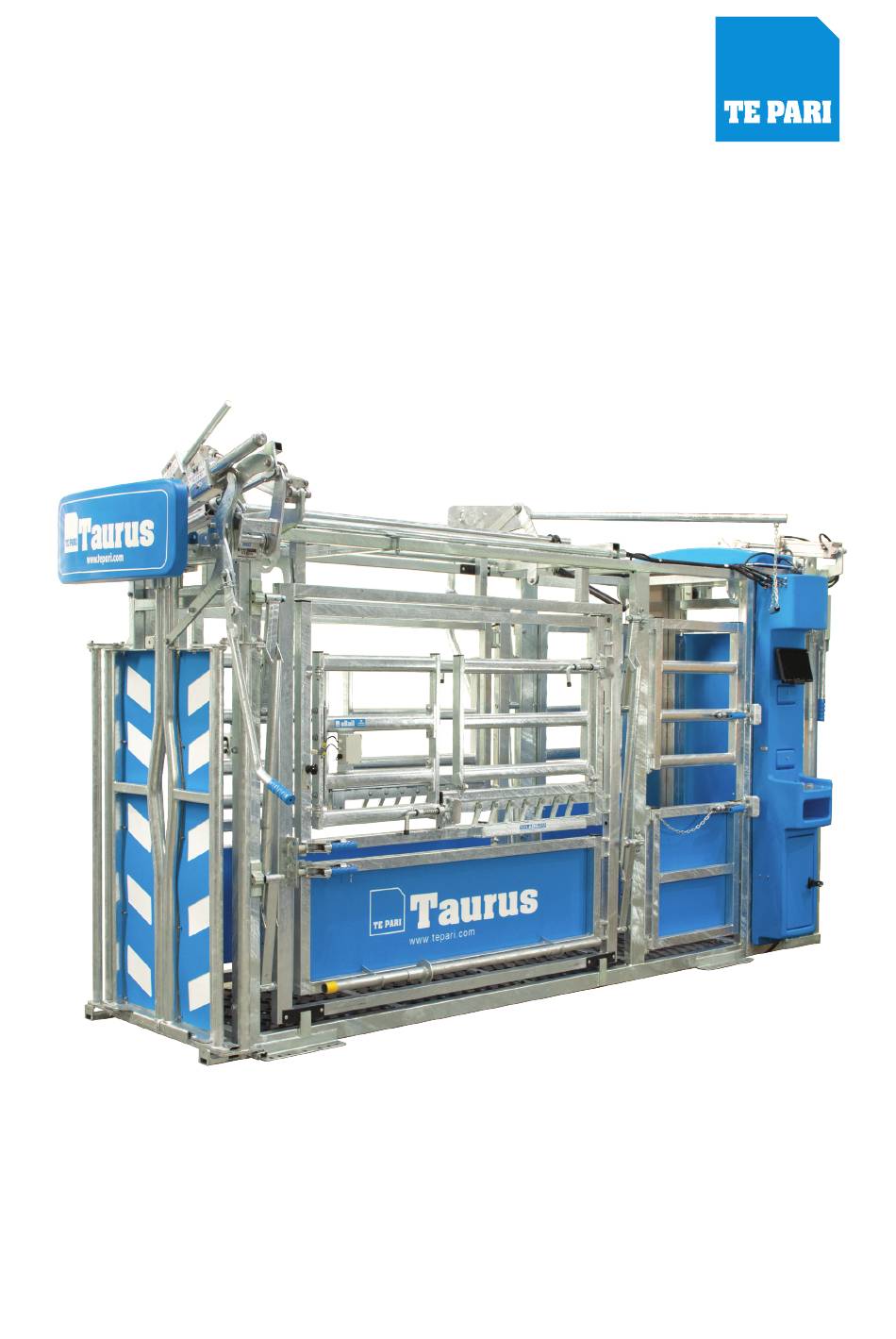

- Page 1 Taurus HD3 & HD5 Cattle Crush Installation and Operators Manual...
-
Page 2: Table Of Contents
Attaching the air fitting & compressor hook up How it works Remote Control Button Mapping Manual Control Mapping Cleaning & Maintenance Online Product Registration Warranty Claims & Return Forms Hazard Identification Contact us Back Te Pari Taurus HD3 & HD5 Auto Drafting Cattle Crush Manual... -
Page 3: 25 Features & Benefits
Grease nipples on major pivots for long life. Multifunction side gates allow safe and easy access to animal. Remote control operates all crush functions including drafting gates. Simple to use push button (USA made) controls. Te Pari Taurus HD3 & HD5 Auto Drafting Cattle Crush Manual... -
Page 4: Dimensions
1070 Weight in kgs* Scales & EID Compatibility Compatible with Te Pari T20, and T30 Scales, Gallagher 610 / 810 / TSI Scales & Tru-test XR/ID Series Scale eRail controller (ASR566) needed if connected to Tru-test or Gallagher Scale systems... -
Page 5: Drafting Directions
Taurus HD3 & HD5 C AT TL E C RUS H Drafting Directions Gate 1 Gate 2 Gate 3 3-WAY DRAFT Te Pari Taurus HD3 & HD5 Auto Drafting Cattle Crush Manual... - Page 6 Taurus HD3 & HD5 C AT TL E C RUS H Drafting Directions Gate 1 Gate 4 Gate 5 Gate 2 Gate 3 5-WAY DRAFT Te Pari Taurus HD3 & HD5 Auto Drafting Cattle Crush Manual...
-
Page 7: Installation Requirements
From your Compressor Ball or tap valve If your compressor is situated some distance from your Taurus HD3 or HD5 we recommend the airline configuration shown here. This provides a purge tap or ball valve so that condensation can be periodically removed from the air system. -
Page 8: How It Works
Draft out of crush model – when command is received the gate on the crush will open to let the animal exit. As the weight drops off the gates will close again and the sliding gate will open ready for the next animal. Te Pari Taurus HD3 & HD5 Auto Drafting Cattle Crush Manual... -
Page 9: Remote Control Button Mapping
Automatic or Manual mode CATTLE AUTO DRAFTER CATTLE AUTO DRAFTER HD3 REMOTE HD5 REMOTE Pairing the remote: Simply press and hold the Entry and Race buttons for 10 seconds to pair. Te Pari Taurus HD3 & HD5 Auto Drafting Cattle Crush Manual... -
Page 10: Manual Control Mapping
Drafting Gates – Drafting Gates – Race Gate 2 & 3 4 & 5 Open / Close Machine Power On / Off Changes to Automatic or Manual Mode 5-WAY Te Pari Taurus HD3 & HD5 Auto Drafting Cattle Crush Manual... -
Page 11: Cleaning & Maintenance
Contact Te Pari Products, or your local dealer for assistance with product part replacement. Te Pari Taurus HD3 & HD5 Auto Drafting Cattle Crush Manual... -
Page 12: Online Product Registration
C AT TL E C RUS H Product Registration Register your Te Pari Taurus HD3 & HD5 Cattle Crush via the Te Pari website. This can be found by clicking on the Contact Us drop down menu and takes minutes to complete. By registering your product with us ensures that we have all your details should they be needed in the future. -
Page 13: Hazard Identification
C AT TL E C RUS H Hazard Identification The Taurus HD3 & HD5 Cattle Crush has moving gates positioned in multiple locations as shown below. Keep hands clear to avoid the risk of a crush injury when the machine is operational. - Page 14 AUSTRALIA OFFICE 44 Ricky Way, Epping Melbourne, 3076 VIC PHONE : 1800 650 682 EMAIL sales.au@tepari.com : accounts.au@tepari.com accounts Thank you for your purchase, enjoy your new Te Pari Taurus HD3 & HD5 Auto Cattle Crush from the Te Pari team...
