Step 4: Transmission Connectors

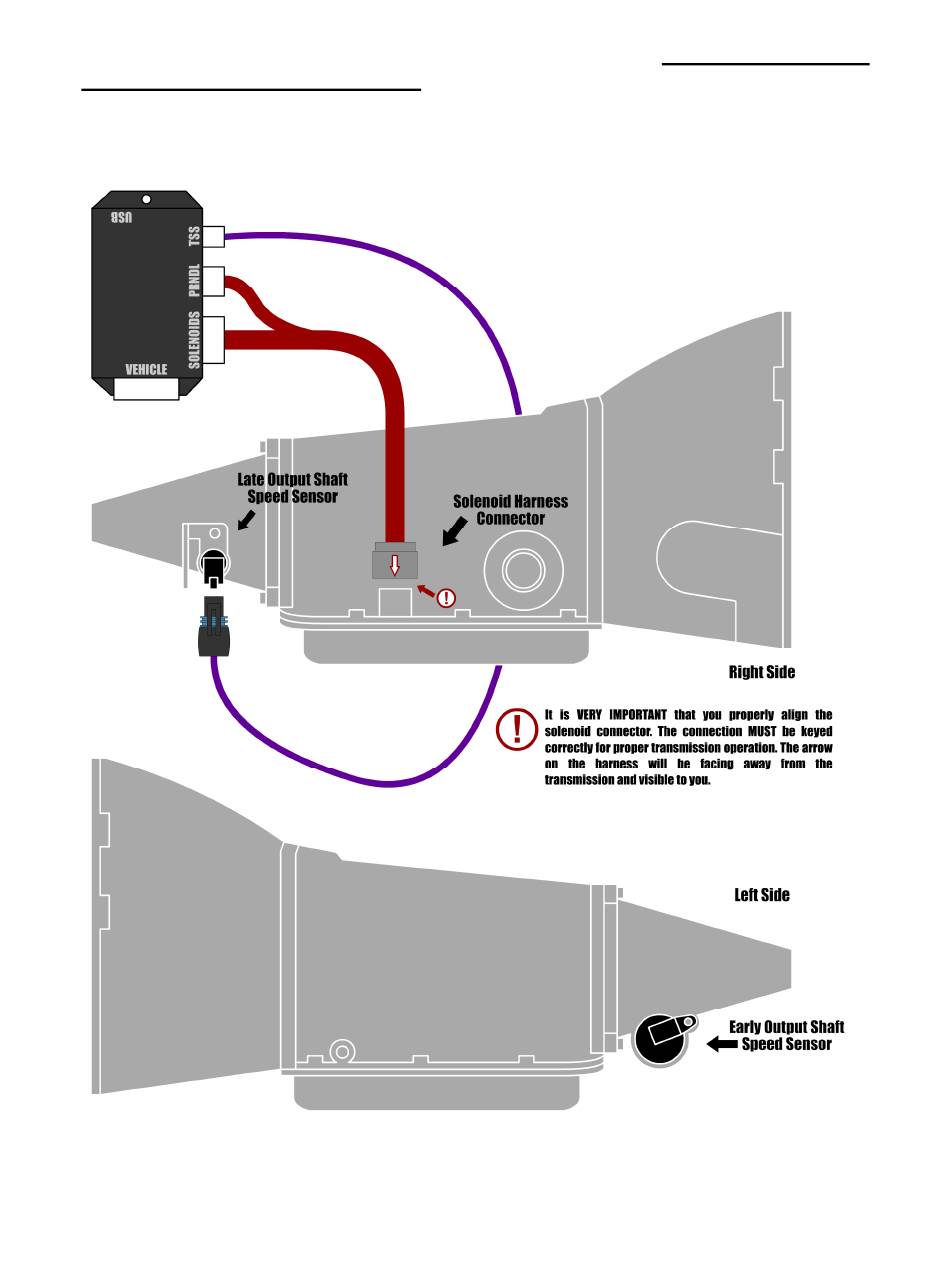

Connect the Solenoid and TSS cables to the transmission. THE CONNECTORS
MUST BE KEYED CORRECTLY for proper transmission operation (see the
diagram below for details). Additionally, connect the Neutral Safety Switch and
the Backup Lamp Switch. The neutral safety switch isn't related to the Quick 4
controller or harness, but should be included in every installation.
Step 5: Optional Features
Connect any extra features you wish to use. See the "Optional Features"
section for details.
7
