Manutronic Overview
If connected and enabled the ManuTronic feature will allow manual selection of
all forward gears using paddles, buttons, or another type of switch. With
ManuTronic engaged, a brief press of the UPSHIFT button will change to the
next higher gear, while DOWNSHIFT will change to the next lower gear.
ManuTronic also has a safety feature which inhibits downshifting if the engine
RPM is too high, which prevents over-revving of the engine due to a driver's
error.

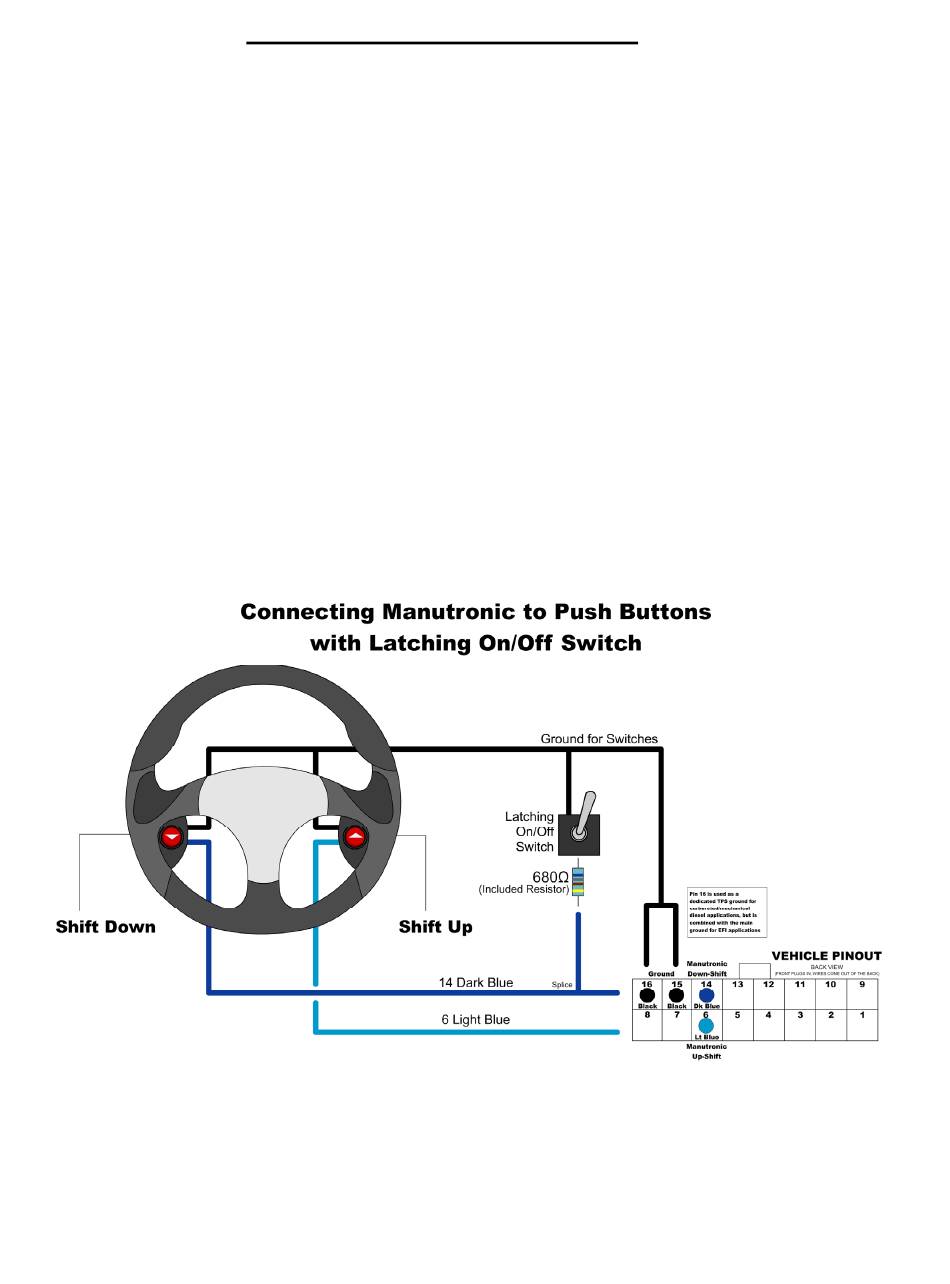

Shift Buttons with Latching On / Off Switch
For this configuration, you will need to connect the Dark Blue wire (Pin 14 on the
Vehicle Connector) to your down-shift button (momentary) and connect the Light
Blue wire (Pin 6 on the Vehicle Connector) to your up-shift button (momentary).
To connect the on / off switch (latching), solder the switch's wire onto the Dark
Blue down-shift wire with the included 680 Ohm resistor between them. (Follow
the guidelines for soldering found in the "General Installation" section.)
Remember that the correct settings must be used in Shiftware. Manutronic will
be enabled when the toggle switch is turned on and disabled when it is turned
off.
18

MANUAL SHIFT CONNECTIONS
