Welch Allyn 48700 User Manual

Halogen Exam Light III
Halogen Exam Light III with Fiberoptic Light Pipe
Model #'s - 48700, 48722, 48724, 48726, 48728
Halogen Exam Light III with Fiberoptic Light Cable
Model #'s - 48780, 48782, 48784, 48786, 48788
Halogen Exam Light III with Neonate Light Pipe
Model #'s - 48760, 48762, 48764, 48766, 48768
Halogen Exam Light III Light Box with Power Cord
Model #'s - 48740, 48742, 48744, 48746, 48748
INTRODUCTION
Thank you for purchasing the Welch Allyn Halogen Exam Light III. We believe
that it is the highest quality product of its kind available in the world today.
By following the simple guidelines found within this manual, you should be
rewarded with years of dependable, trouble free performance. If you have
any questions or concerns please feel free to contact our customer or
technical service departments at (800) 535-6663 during normal business
hours.
Welch Allyn remains committed to providing innovative, quality diagnostic
products for healthcare professionals. Call us at (800) 535-6663 to request a
full line product catalog or visit us at our Web Site, www.WelchAllyn.com.
SYMBOL DESCRIPTIONS
Attention: Consult user's manual for additional information.
Warning: Risk of fire. Replace fuses as marked.
Caution: High Temperatures
Caution: High Intensity Light
WARNINGS & CAUTIONS
WARNING: The user of this equipment should be thoroughly trained
in the medical procedures appropriate to the utilization of this
instrumentation. Furthermore, time should be taken to read and
understand the instructions contained within this manual prior to use
of this product. Instructions for other equipment used in conjunction
with the Exam Light III (for example: suction machines,
electrosurgical generators, etc.) should also be read and understood.
Failure to understand the operating requirements for this product
may result in injury to yourself, the patient and/or may damage the
instrument.
CAUTION: Electric Shock Hazard - Remove power cord from
electrical outlet and allow lamp to cool before replacing (Welch
Allyn lamp # 04200).
DANGER: Risk of explosion if used in the presence of flammable
anesthetics.
CAUTION: Federal Law restricts this device to sale by or on the order
of a physician.
CAUTION: Illumination is intense - Do not stare at the light source in
operation. May be harmful to eyes.
CAUTION: Use the examination light in its intended working range of
12 to 24 inches. Exposures at closer distances may be harmful to
skin.
WARNING: Do not perform neonatal trans-illumination without the
use of the #48210 neonatal trans-illuminator (with U.V. filter). Do not
remove the focusing sleeve from the light pipe and use the light pipe
for trans-illumination. Severe burns may result.
General practices to minimize risk of harm to the skin from optical
radiation hazards include: minimizing illumination intensity at the tis-
sue examination site, minimizing exposure times, and taking addi-
tional precautions when skin sensitivity has been altered through
tissue trauma or the use of anesthesia.
General good practices to minimize risk of harm to the eyes from
optical radiation hazards include: avoid looking at bright light sources
and their reflections, and protect eyes where normal pupil sizes and
aversion responses are not present.
There are no user serviceable/replaceable parts other than lamp and
fuses. Please refer any other service to qualified and authorized
service centers.

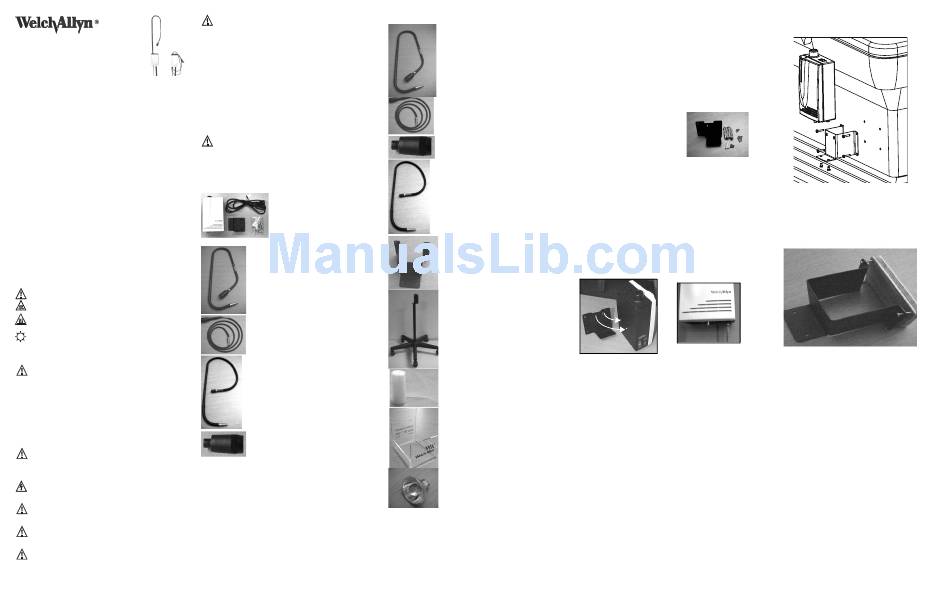

COMPONENTS
Standard
Light Box, Power Cord and Wall Mount
Model 48740 (Domestic)
Model 48742 (Europe)
Model 48744 (UK)
Model 48746 (Australia)
Model 48748 (Japan)
Fiberoptic Light Pipe (shown with focusing sleeve)
Model 48200
(Included only with Model #'s 48700, 48722,
48724, 48726, and 48728)
Fiberoptic Light Cable (shown with focusing sleeve)
Model 48220
(Included only with Model #'s 48780, 48782,
48784, 48786, and 48788)
Neonatal Transilluminator
Model 48210
(Included only with Model #'s 48760, 48762,
48764, 48766, and 48768)
Focusing Sleeve
Model 48605
(Included only with Model #'s 48700, 48722, 48724,
48726, 48728, 48780, 48782, 48784, 48786, and 48788)
Accessories
Fiberoptic Light Pipe (Shown with Focusing Sleeve)
Model 48200
Fiberoptic Light Cable (Shown with Focusing Sleeve)
Model 48220
Focusing Sleeve
Model 48605
Neonatal Transilluminator
Model 48210
The optional neonatal Light Pipe/
transilluminator is used to assist in the
diagnosis of pneumothorax, to locate blood
vessels, etc. This transilluminator
incorporates a permanently attached
ultraviolet filter that minimizes the
transmission of ultraviolet light. The standard
Fiberoptic Light Pipe or Fiberoptic Light Cable
should NOT be used for transillumination of
neonates.
Table Mount Bracket
Model 48859
Mobile Stand
Model 48850
Disposable Sheaths
Model 52640
Disposable Sheath Dispenser
Model 52641
35W Halogen Replacement Lamp
Model 04200
MOUNTING
Use one of the following three mounting options in order to ensure proper
operation of the light box.
Wall Mount
Choose appropriate mounting location. The length of the light pipe is 4 feet
totally extended (fiberoptic light cable is 7.5 feet). When choosing a mounting
location, keep these dimensions in mind in addition to accounting for the
actual application the light will be used for and what portion of the
examination table will need to be accessed.
1. Using the mounting plate as a template, mark drilling holes as needed
(depending on your wall type).
2. Dry Wall, Paneling, Plywood or Plaster
(1/8 inch (.3 cm) to 5/8 inch (1.6 cm)
thick) - drill four (4) 3/8 inch (1cm) holes,
insert hollow metal wall anchor
assembly.
3. Concrete Block - drill four (4) 3/16 inch
(.5 cm) holes, insert plastic anchors. Use #8 x 1/2 inch screws to
secure.
4. Metal Panel or Plywood walls greater than 5/8 inch (1.60 cm) thick -
drill four (4) 1/8 inch (.3 cm) holes. Use #8 x 1 inch screws to secure.
5. Once holes are drilled, install the mounting plate with the appropriate
screws. Completely tighten the screw so there is no gap between the
screw head and the mounting plate.
6. Mount the Light Box to the plate by inserting the pins on the back of the
light box into the slots on the mounting plate. Let the light box drop
  down to position the pins into the narrow portion of the mounting slots
.
7. To secure the Light Box to the plate, insert two (2) .50" (1.27cm) screws
through the bottom of the mounting plate and tighten into the bottom

of the Light Box using a phillips head screwdriver .

NOTE: Some exam table manufacturers supply mounting hardware for
installation of the Exam Light III. Check with your table supplier for
availability.
WARNING: It is the responsibility of the health facility of user to ensure that
the mounting bracket is securely anchored to the wall or table, or that the
mobile stand is securely assembled, and the exam light is securely fastened
to the bracket or stand as directed below. Give consideration to the load that
is placed upon the mount. Welch Allyn, Inc. does not accept responsibility for
any installation, nor for damage or injury arising from the installation of any
mounting bracket or mobile stand, regardless of the type of fasteners and
technique used.
1. Determine the side of the table that is most optimal for mounting the
light. Consider the location of the nearest power outlet and patient
traffic.
NOTE: Verify that the top of the mounting bracket is at least 10 inches (25.4
cm) below the table top cushion and that the mounting position will not
interfere with the operation of the table.
2. Using the mounting plate as a template, mark the hole locations on the
table and drill four (4) .25 inch (.64 cm) holes in the table.
3. Using four 8-32 screws with lock washers and nuts, install the
mounting plate to the table as shown in the diagram.
4. Mount the light box to the plate by inserting the pins on the back of the
light box into the slots on the mounting plate. Let the light box drop
down to position the pins into the narrow portion of the mounting slots.
5. To secure the Light Box to the mounting plate, insert two (2) .50" (1.27
cm) screws through the bottom of the mounting plate and tighten into
the bottom of the Light Box using a Phillips head screwdriver.
NOTE: Some tables require additional reinforcement of the mounting bracket
to support the mounted light. In this case, we recommend using a 1" (2.5 cm)
thick piece of plywood. When employing this reinforcement to the bracket,
please follow instructions 6 - 11 below.
6. Trace the outline of the mounting plate and mark the hole locations on
a 3/4 inch (1.9cm) thick piece of plywood.
7. Cut the piece of wood to the outline size and drill four .25 inch (.64cm)
holes.
8. Using the mounting plate as a template, mark the hole locations on the
table and drill (4) .25 inch (.64 cm) holes in the table.
9. Using four 8-32 x 2 inch (5.08 cm) screws with lock washers and nuts,
install the block of wood and mounting plate to the table as shown in
the diagram.
10. Mount the light box to the plate by inserting the pins on the back of the
light box into the slots on the mounting plate. Let the light box drop
down to position the pins into the narrow portion of the mounting slots.
11. To secure the Light Box to the mounting plate, insert two (2) .50"
(1.27cm) screws through the bottom of the mounting plate and tighten
into the bottom of the Light Box using a phillips head screwdriver.
