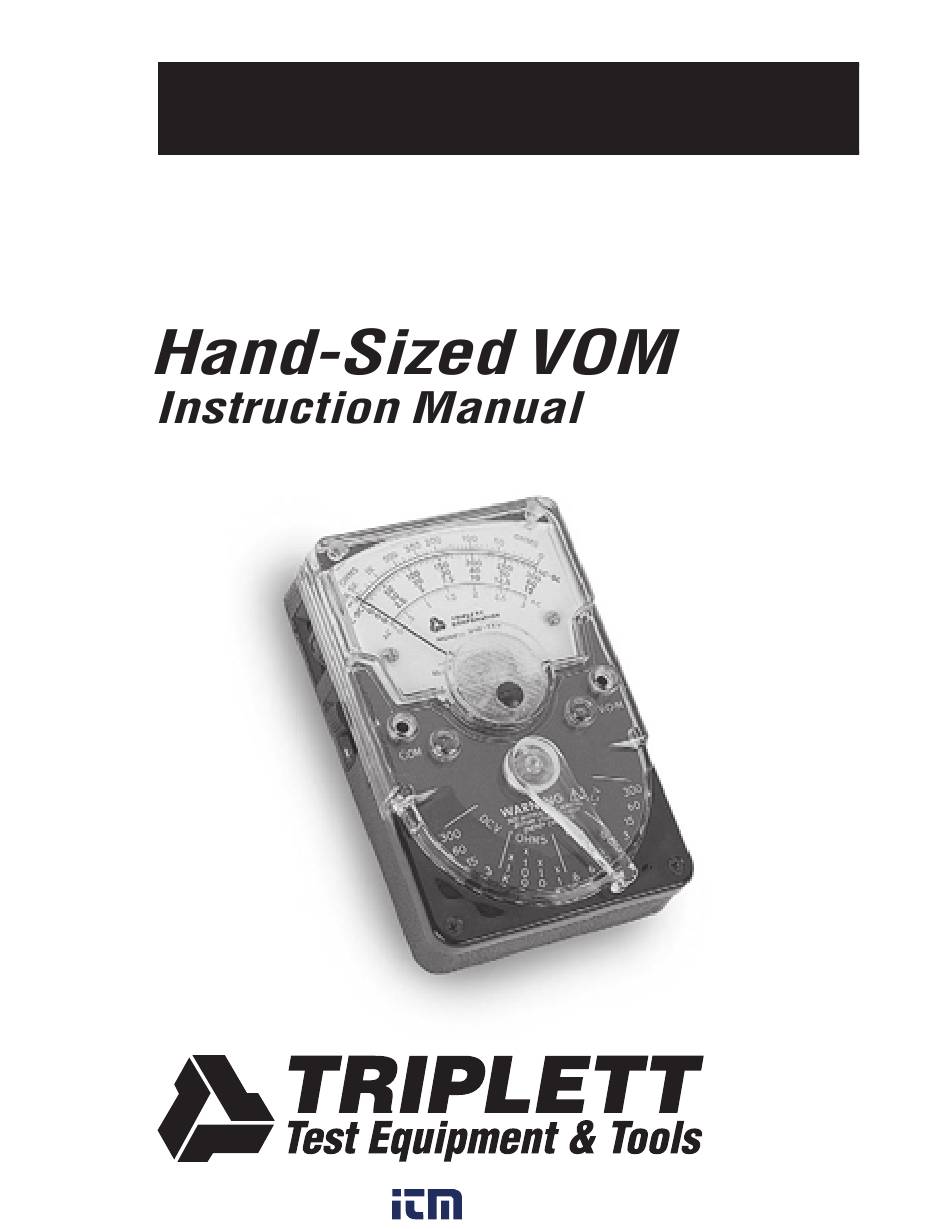

- Page 1 TRIPLETT Model 310-TEL Type 4 1.800.561.8187 information@itm.com www. .com...
-
Page 2: Table Of Contents
AC VOLTAGE MEASUREMENTS ......17 RESISTANCE MEASUREMENTS ......19 DC CURRENT MEASUREMENTS ......21 MEASURING OUTPUT VOLTS (dB) ...... 23 OPERATION CHART ........25 ACCESSORIES ..........26 MAINTENANCE ..........27 TRIPLETT LIMITED WARRANTY ....... 29 84-895 9/20/2010 1.800.561.8187 information@itm.com www. .com... -
Page 3: Safety Rules
SAFETY RULE WARNING This tester has been designed with your safety in mind. However, no design can completely protect against in- correct use. Electrical circuits can be dangerous and/ or lethal when lack of caution or poor safety practices are used. WARNING This meter is NOT to be used to measure High Energy circuits (power circuitry fused at greater than 4KW, such... - Page 4 l AC (310-C 1.800.561.8187 information@itm.com www. .com...
- Page 5 Make sure both test leads are fully inserted into their respec- tive input jacks (Black lead into COM and Red lead into ). A loose test lead may cause the user to misinter- pret the dangers present (the meter may read Zero when dangerous voltage is present) or the loose lead may accidentally short to other circuitry or shock the user.
- Page 6 Do not use the meter if it does not appear to work correctly on all ranges and in all modes. Do not use the meter if it has undergone long-term storage under unfavorable conditions. Do not use the meter if it may have been damaged in transport.
- Page 7 Do not mistake a downscale reading as an indication that no potential is present. Dangerous potentials may be present that may result in user injury. When replacing the battery, dispose of the depleted battery in accordance with any prevailing safety or environmental regulations.
- Page 8 DO NOT TOUCH Do not touch exposed wiring, connections or other “live” parts of an electrical circuit. If in doubt, check the circuit first for voltage before touching it. Turn off the power to a circuit before connecting test probes to it. Be sure there is no voltage present be- fore you touch the circuit.
-
Page 9: Introduction

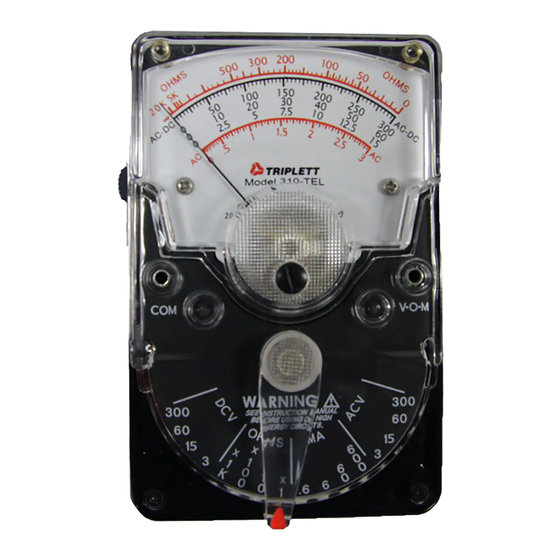

INTRODUCTION The Triplett Model 310-TEL is a handy hand-sized VOM with all the versatility and performance of larger, more expensive bench-size models. It offers diode over- load protection against damage to the meter move- ment caused by accidental overloads. A fuse is used to protect the RX1 range. -
Page 10: Specifications
SPECIFICATIONS DC Volts Ranges: 0-3, 15, 60, 300 (20,000 ohms per volt) ± 3% of full scale value Accuracy: AC Volts Ranges: 0-3, 15, 60, 300 (5,000 ohms per volt) ± 4% of full scale value Accuracy: (on 60Hz sine wave at 77 ° F) Ohms Ranges: 0-20K, 200K, 2 Meg, 20 Meg... - Page 11 Meter 50 μ A - 250 mV (Pivot and Jewel) Overload Protection Meter movement protected by diodes. RX1 range protected by fuse. Voltage ranges protected by high impedance. Polarity Reversal The Polarity Switch reverses the polarity of the jacks on all ranges. Test Lead Polarity DC Voltage: Lead connected to V jack is positive...
-
Page 12: General Instructions
GENERAL INSTRUCTIONS Control Locations For a diagram of the Model 310-TEL, please refer to page 14. Test Leads Check the test leads periodically. Leads that are worn, have damaged insulation, damaged plugs, damaged probes or loose parts should be replaced. The following section should be read carefully. -
Page 13: Scale Selection
Scale Selection Readings are taken on the scale having the appropri- ate significant figures (both 3 and 300 volts are read on the 0-300 scale) by multiplying or dividing by a factor of 10 or 100 as indicated by the range/scale ratio (i.e., on the 3 volt range, divide the scale read- ings by 100). -
Page 14: Other Considerations
Other Considerations Readings on the sensitive voltage, current and resis- tance ranges may sometimes be different than calcu- lated values. Thermo-electric or electro-chemical re- actions can sometimes generate voltage (and current) in a circuit due to elevated temperatures, contact of dissimilar metals, chemical fumes or moisture. -
Page 15: Control Location Diagram
CONTROL LOCATION DIAGRAM DIAL SCALE INDICATOR NEEDLE POLARITY REVERSING SWITCH ZERO ADJUSTMENT SCREW BLACK TEST LEAD TEST LEAD INPUT INPUT JACK JACK V-O-M RANGE SELECTOR SWITCH OHMS ADJUST CONTROL VARIOUS RANGE SETTINGS 1.800.561.8187 information@itm.com www. .com... -
Page 16: Dc Voltage Measurements
DC VOLTAGE MEASUREMENTS 0-3 through 0-300 Volts: 1. Insert the test leads into the appropriate jacks. (Red to 2. Set Range Switch to appropriate DCV range. 3. Set the Polarity Switch to desired polarity. 4. Connect probes across circuit to be measured. 5. - Page 17 DC VOLTAGE MEASUREMENTS POLARITY REVERSING SWITCH OHMS ADJUST CONTROL V-O-M SAFETY FIRST! 1.800.561.8187 information@itm.com www. .com...
-
Page 18: Ac Voltage Measurements
AC VOLTAGE MEASUREMENTS 0-3 through 0-300 Volts: 1. Insert the test leads into the appropriate jacks. (Red to 2. Set Range Switch to appropriate ACV range. 3. Connect probes across circuit to be measured. 4. Energize circuit. 5. Read voltages above 3 Volts on the Black AC-DC Scale. - Page 19 AC VOLTAGE MEASUREMENTS POLARITY REVERSING SWITCH OHMS ADJUST CONTROL V-O-M Set Range 300 ACV SAFETY FIRST! 1.800.561.8187 information@itm.com www. .com...
-
Page 20: Resistance Measurements
RESISTANCE MEASUREMENTS X1 through X1K Ohms: 1. Insert the test leads into the appropriate jacks. (Red to 2. Set Range Switch to appropriate 3. Short test probes together. 4. Adjust ADJUST C until meter reads zero ohms. 5. Connect probes to the circuit or component to be measured. - Page 21 RESISTANCE MEASUREMENTS POLARITY REVERSING SWITCH OHMS ADJUST CONTROL V-O-M SAFETY FIRST! 1.800.561.8187 information@itm.com www. .com...
-
Page 22: Dc Current Measurements
DC CURRENT MEASUREMENTS 0-.6 through 0-600 Milliamperes: 1. Insert the test leads into the appropriate jacks. (Red to 2. Set Range Switch to appropriate mA range. 3. Connect the probes in series with the circuit to be measured (use alligator clips). 4. - Page 23 DC CURRENT MEASUREMENTS POLARITY REVERSING SWITCH OHMS ADJUST CONTROL V-O-M – LOAD SAFETY FIRST! 1.800.561.8187 information@itm.com www. .com...
-
Page 24: Measuring Output Volts (Db)
MEASURING OUTPUT VOLTS (dB) POLARITY REVERSING SWITCH OHMS ADJUST CONTROL V-O-M AUDIO 600Ω AMPLIFIER SAFETY FIRST! To read Output Voltage use the same procedure as shown on page 17 for AC Voltage and convert readings to dB using the chart on page 24. 1.800.561.8187 information@itm.com www. - Page 25 MEASURING OUTPUT VOLTS (dB) 1.800.561.8187 information@itm.com www. .com...
-
Page 26: Operation Chart
1.800.561.8187 information@itm.com www. .com... -
Page 27: Accessories
ACCESSORIES Carrying Cases: Model 369: Model 369-S: Cat. No. 10-1258 Cat. No. 10-1791 Model 369-T Model 369-V: Cat. No. 10-1608 Cat. No. 10-2959 1.800.561.8187 information@itm.com www. .com... -
Page 28: Maintenance
Test Leads: 79-153: 42” Test leads w/Screw-on Alligator Clips 79-206: 48” Test leads with Alligator Clips (no probes) 79-695: Test leads with Pin Cushion Clips 79-722: Test leads with Spike Clips MAINTENANCE FOR MODEL 310-TEL Battery Replacement If the pointer cannot be adjusted to full scale on the X1, X10, or X100 OHMS ranges, replace the 1.5V bat- tery. - Page 29 In the unlikely event that you must return your Triplett equipment for repair, the following steps must be taken. 1) Call 1-800-TRIPLETT to obtain a Return Material Authorization (RMA) number from Customer Service. 2) Enclose a copy of the original sales receipt showing date of purchase.
-
Page 30: Triplett Limited Warranty
The purchaser agrees to assume all liability for any damages and bodily injury which may result from the use or misuse of the product by the purchaser, his employees, or others, and the remedies provided for in this warranty are expressly in lieu of any other liability Triplett Instruments may have, including incidental or consequential damages.
