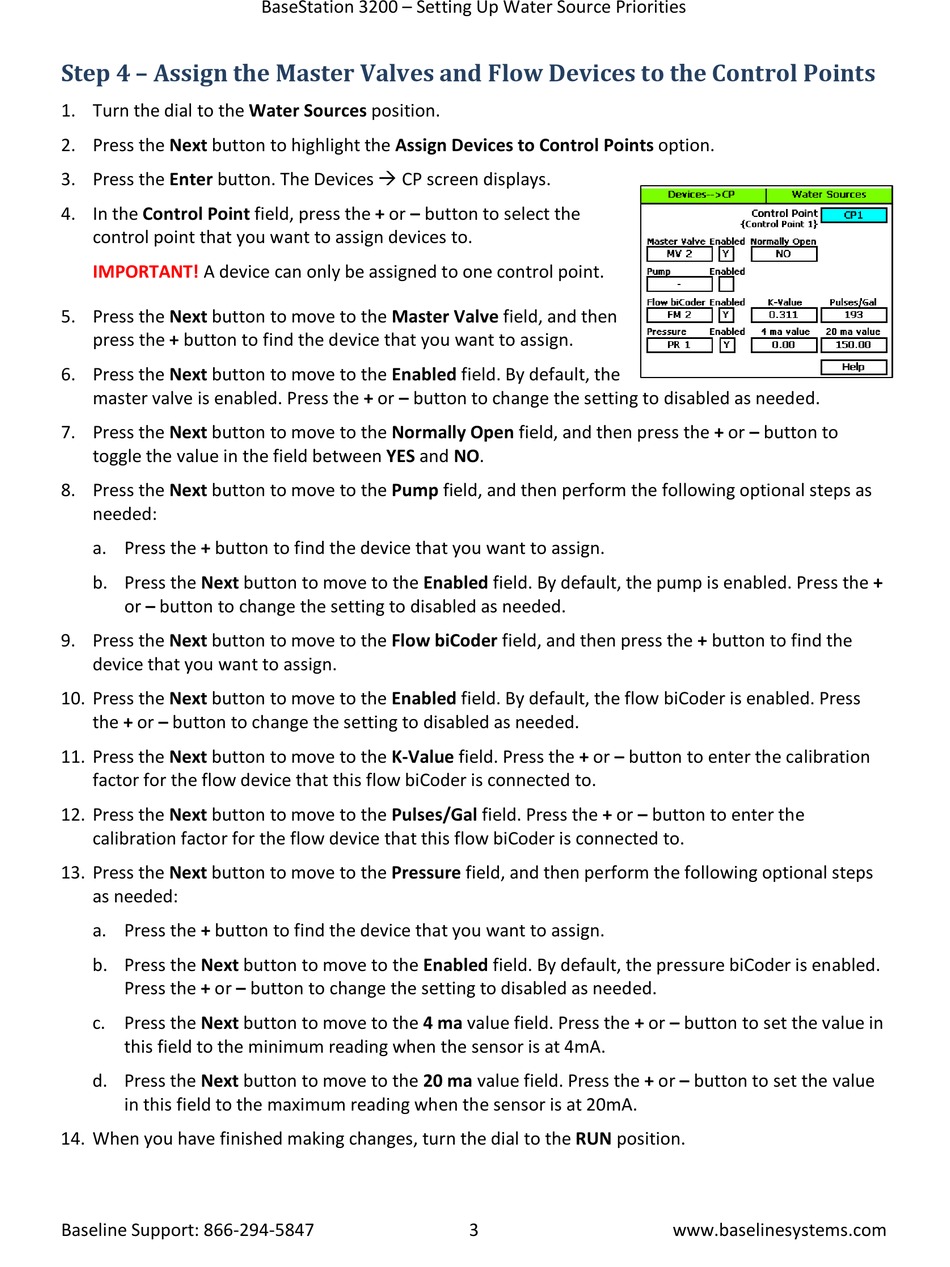

Baseline BaseStation 3200 Setting Up page 3

Step 4 – Assign the Master Valves and Flow Devices to the Control Points
1. Turn the dial to the Water Sources position.
2. Press the Next button to highlight the Assign Devices to Control Points option.
3. Press the Enter button. The Devices  CP screen displays.
4. In the Control Point field, press the + or – button to select the
control point that you want to assign devices to.
IMPORTANT! A device can only be assigned to one control point.
5. Press the Next button to move to the Master Valve field, and then
press the + button to find the device that you want to assign.
6. Press the Next button to move to the Enabled field. By default, the
master valve is enabled. Press the + or – button to change the setting to disabled as needed.
7. Press the Next button to move to the Normally Open field, and then press the + or – button to
toggle the value in the field between YES and NO.
8. Press the Next button to move to the Pump field, and then perform the following optional steps as
needed:
a. Press the + button to find the device that you want to assign.
b. Press the Next button to move to the Enabled field. By default, the pump is enabled. Press the +
or – button to change the setting to disabled as needed.
9. Press the Next button to move to the Flow biCoder field, and then press the + button to find the
device that you want to assign.
10. Press the Next button to move to the Enabled field. By default, the flow biCoder is enabled. Press
the + or – button to change the setting to disabled as needed.
11. Press the Next button to move to the K-Value field. Press the + or – button to enter the calibration
factor for the flow device that this flow biCoder is connected to.
12. Press the Next button to move to the Pulses/Gal field. Press the + or – button to enter the
calibration factor for the flow device that this flow biCoder is connected to.
13. Press the Next button to move to the Pressure field, and then perform the following optional steps
as needed:
a. Press the + button to find the device that you want to assign.
b. Press the Next button to move to the Enabled field. By default, the pressure biCoder is enabled.
Press the + or – button to change the setting to disabled as needed.
c. Press the Next button to move to the 4 ma value field. Press the + or – button to set the value in
this field to the minimum reading when the sensor is at 4mA.
d. Press the Next button to move to the 20 ma value field. Press the + or – button to set the value
in this field to the maximum reading when the sensor is at 20mA.
14. When you have finished making changes, turn the dial to the RUN position.
