Displaying the screen on a computer

Hide thumbs Also See for BaseStation 3200:

Displaying the BaseStation 3200

Screen on a Computer

With the proper software and cable, you can display your BaseStation 3200 irrigation controller screen

on a computer. This is useful when you need to demonstrate the controller to an audience or you need

to capture a screen from the controller.

Note: These instructions are for computers running Windows 7.

Prerequisites

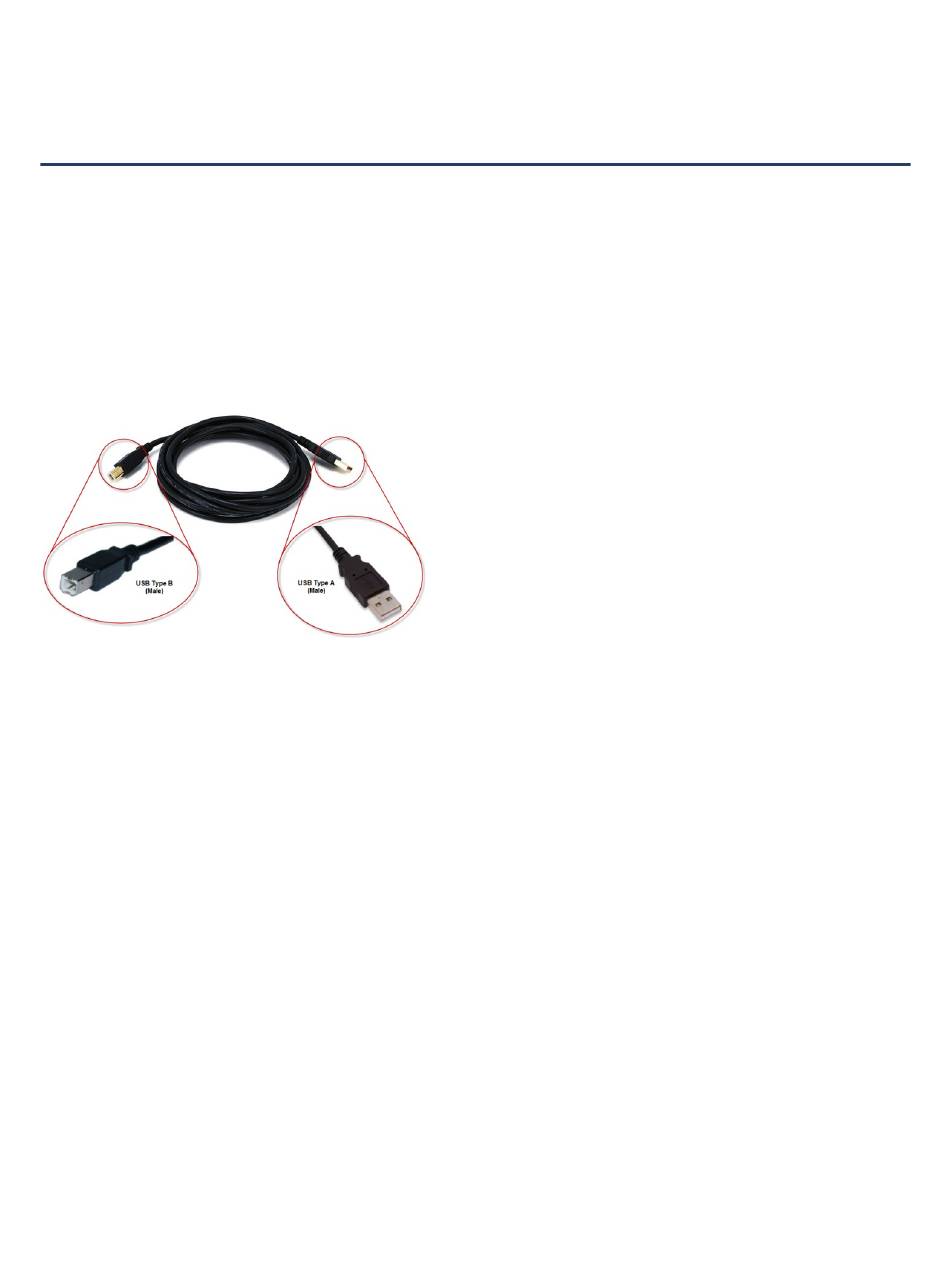

You will need a USB 2.0 Type A Male to Type B Male cable

Step 1 – Download and install the Windows Mobile Developer Power Toys application on your

computer.

Step 2 – Copy cerdisp2.exe to your computer's Desktop.

Step 3 – Copy ASRDisp.exe to your computer's Desktop.

Step 4 – Connect the controller to the computer with the USB cable.

Step 5 – Copy cerdisp2.exe to the controller.

Step 6 – Run ASRDisp.exe from the Desktop.

Step 7 – Capture a screen from the BaseStation 3200 (optional).

Baseline Support: 866-294-5847

www.baselinesystems.com

Table of Contents

Do you have a question about the BaseStation 3200 and is the answer not in the manual?

Page 1 Displaying the BaseStation 3200 Screen on a Computer With the proper software and cable, you can display your BaseStation 3200 irrigation controller screen on a computer. This is useful when you need to demonstrate the controller to an audience or you need to capture a screen from the controller.
Page 2 Displaying the BaseStation 3200 Screen on a Computer Step 1 – Downloading and Installing Windows Mobile Developer Power Toys 1. Open a web browser on your computer and go to the following URL to download Windows Mobile Developer Power Toys.
Page 3 Displaying the BaseStation 3200 Screen on a Computer Step 4 – Connecting the Controller to the Computer with the USB Cable 1. Open the outer door on the BaseSation 3200 irrigation controller. 2. Open the display panel door. 3. On the back of the display panel, find the USB port (Type B) next to the ribbon cable connector.
Page 4 Do not add, modify, or delete any files in the YaffsPart1 folder. Doing so will result in permanent damage and data loss on your BaseStation 3200. If your BaseStation 3200 is damaged in this manner, you must return it to Baseline for repair at your expense.
Page 5 The BaseStation 3200 screen displays in the Active Sync Remote Display window. If you are demonstrating the BaseStation 3200 to an audience, they will be able to watch how the controller responds when you click a button on the controller.
