Bonnet Equator 6 Series Maintenance Manual

Combi ovens
Hide thumbs
Table of Contents

Advertisement

Quick Links

6
EQUATOR
COMBI OVENS
SI
BUILDER'S SPECIFICATIONS
Part C: Maintenance manual
- WARRANTY -
In order to guarantee this equipment, we recommend that you comply with the
MANUFACTURER'S INSTRUCTIONS in this manual.
However if you can not undertake the required maintenance operations, our installation and
service network is available to provide you with a personalized contract.
- WARNING -
•
The product delivered to you complies with current standards. If any modifications are made
the manufacturer cannot accept any responsibility whatsoever. The manufacturer can not be
held responsible in the event of an incorrect use of the appliance.
•
Keep your manuals.
3BE390691NM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Equator 6 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Bonnet Equator 6 Series

Summary of Contents for Bonnet Equator 6 Series

  • Page 1 EQUATOR COMBI OVENS BUILDER’S SPECIFICATIONS Part C: Maintenance manual - WARRANTY - In order to guarantee this equipment, we recommend that you comply with the MANUFACTURER’S INSTRUCTIONS in this manual. However if you can not undertake the required maintenance operations, our installation and service network is available to provide you with a personalized contract.

  • Page 2: Table Of Contents

    MAINTENANCE PROGRAMME ......................23 10.1 INLET INTO THE PROGRAMME ........................23 10.2 COUNTER READING ............................23 10.3 ASSISTANCE FOR MAINTENANCE .........................24 10.4 OUTLET FROM MAINTENANCE CYCLES .......................25 BONNET GRANDE CUISINE Registered Office: Rue des Frères Lumière - Z.I Mitry Compans 77292 MITRY MORY Cedex...

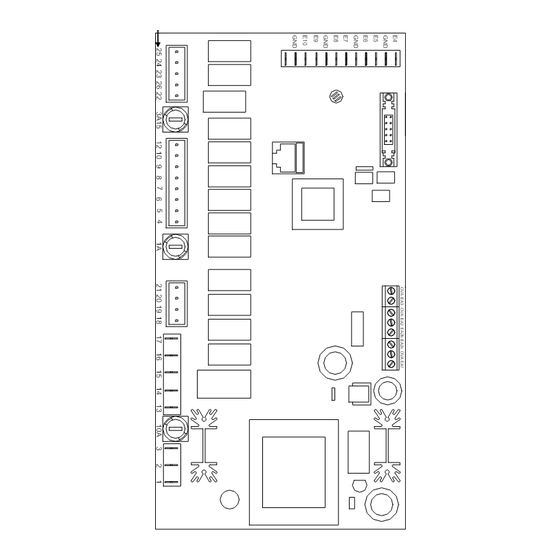

  • Page 3: Functioning And Marking Of The Maxi Relay Card

    Connection of core probe connector Capacity sensor connection Motor supply inlet Fuse: This only protects against a defective capacity fan BONNET GRANDE CUISINE Registered Office: Rue des Frères Lumière - Z.I Mitry Compans 77292 MITRY MORY Cedex...

  • Page 4: Parameter Setting Of The Uc Relay Card

    2.2 PARAMETER SETTING OF THE CONFIGURATION KEY Open the facia. Tilt the switch of the UC relay card on OF (towards the right). BONNET GRANDE CUISINE Registered Office: Rue des Frères Lumière - Z.I Mitry Compans 77292 MITRY MORY Cedex...
  • Page 5 EQ4+202/1.SI.G Combi gas oven 20 GN1/1 injection Tilt the switch of the UC relay card on ON (towards the left). Close the facia. BONNET GRANDE CUISINE Registered Office: Rue des Frères Lumière - Z.I Mitry Compans 77292 MITRY MORY Cedex...

  • Page 6: Parameter Setting Of The Facia (In Case The Whole Card Is Changed)

    "0 or 1"). Correct the figure by turning button 3 to obtain the desired value (0 = set temperature, 1 = ambient temperature). BONNET GRANDE CUISINE Registered Office: Rue des Frères Lumière - Z.I Mitry Compans 77292 MITRY MORY Cedex...

  • Page 7: Outlet From The Parameter Cycles

    Correct this figure by turning button 3 to obtain the desired value (1 = low buzzer, 2 = medium buzzer, 3 = loud). 2.4 OUTLET FROM THE PARAMETER CYCLES Button 5 BONNET GRANDE CUISINE Registered Office: Rue des Frères Lumière - Z.I Mitry Compans 77292 MITRY MORY Cedex...

  • Page 8: Operational Failures

    - E68: Capacity temperature at + 290° C. - E69: Steam boiler at +110° C. - E70: Short-circuited boiler sensor. - E71: Cut boiler sensor. BONNET GRANDE CUISINE Registered Office: Rue des Frères Lumière - Z.I Mitry Compans 77292 MITRY MORY Cedex...

  • Page 9: Changing The Equipment From One Gas To Another

    G30 / G31 28-30 / 37 37 et 50 Belgium G20 / G25 20 / 25 2E(s)B G30 / G31 28-30 / 37 BONNET GRANDE CUISINE Registered Office: Rue des Frères Lumière - Z.I Mitry Compans 77292 MITRY MORY Cedex...

  • Page 10: Changeover From One Gas To Another

    2E(s)B 28-30 * The category change is only to be carried out under the responsibility of the Company T.G.C.P. or our local agent. BONNET GRANDE CUISINE Registered Office: Rue des Frères Lumière - Z.I Mitry Compans 77292 MITRY MORY Cedex...
  • Page 11 2E(s)B 28-30 * The category change is only to be carried out under the responsibility of the Company T.G.C.P. or our local agent. BONNET GRANDE CUISINE Registered Office: Rue des Frères Lumière - Z.I Mitry Compans 77292 MITRY MORY Cedex...

  • Page 12: Gas Flow Rates And Powers

    Code: 368 551 Ø = 5.7 mm Code: 368 550 1 groove on injectors Ø 5.7 Code 368 603 368 604 368 605 368 606 BONNET GRANDE CUISINE Registered Office: Rue des Frères Lumière - Z.I Mitry Compans 77292 MITRY MORY Cedex...
  • Page 13 Identification of nozzles 3 grooves on the nozzle Ø 4.1 1 groove on the nozzle Ø 8.5 2 grooves on the nozzle Ø 3.75 BONNET GRANDE CUISINE Registered Office: Rue des Frères Lumière - Z.I Mitry Compans 77292 MITRY MORY Cedex...
  • Page 14 Page 13 3BE390691NM – 10/10 Positioning of the nozzle and the air distancing ring Air distancing ring Nozzle Regulating valve BONNET GRANDE CUISINE Registered Office: Rue des Frères Lumière - Z.I Mitry Compans 77292 MITRY MORY Cedex...

  • Page 15: Maintenance

    - Check the hydraulic circuit and condenser. 5.1 SERVICING THE CONDENSER The water injection nozzle and the temperature sensor are to be checked and cleaned regularly. BONNET GRANDE CUISINE Registered Office: Rue des Frères Lumière - Z.I Mitry Compans 77292 MITRY MORY Cedex...

  • Page 16: Verification Of Temperature Sensors

    175.84 176.21 176.57 176.94 177.31 177.68 178.04 178.41 178.78 179.14 179.51 179.88 180.24 180.61 180.97 181.34 181.71 182.07 182.44 182.80 183.17 183.53 183.90 184.26 184.63 184.99 185.36 185.72 186.09 186.45 BONNET GRANDE CUISINE Registered Office: Rue des Frères Lumière - Z.I Mitry Compans...
  • Page 17 Check the sensor insulation between one of the leads and the metal part with the ohmmeter gauged at 20 megohms (a value over 15 megohms). Check the continuity between the screen and the metal part of the sensor. BONNET GRANDE CUISINE Registered Office: Rue des Frères Lumière - Z.I Mitry Compans...

  • Page 18: Door Adjustment And Closing

    At this stage, if the procedure has been properly executed, the door should be at the same height as the oven top. If not, readjust before the next step BONNET GRANDE CUISINE Registered Office: Rue des Frères Lumière - Z.I Mitry Compans...

  • Page 19: Level Ovens

    - Make sure that the oven is properly secured to the floor. Level the oven. - Door closed. Level the door by loosening both fixations screws of the upper hinge on the oven. Screws BONNET GRANDE CUISINE Registered Office: Rue des Frères Lumière - Z.I Mitry Compans...
  • Page 20 - Bring the upper distance between the door and the capacity to the lower part of the door by loosening the fixation screws of the lower hinge. BONNET GRANDE CUISINE Registered Office: Rue des Frères Lumière - Z.I Mitry Compans...

  • Page 21: Renewal Of The Driving Shaft Gasket

    - Install the hub puller (3 points with flat tips) and extract the turbine Turbine Hub puller Driving shaft gasket - Remove the gasket BONNET GRANDE CUISINE Registered Office: Rue des Frères Lumière - Z.I Mitry Compans 77292 MITRY MORY Cedex...
  • Page 22 - Run the motors (before reassembling the turbines) to check proper positioning of the ring and the gasket (they must not rotate together with the driving shaft). - Reassembly : carry out the procedure in reverse order. BONNET GRANDE CUISINE Registered Office: Rue des Frères Lumière - Z.I Mitry Compans...

  • Page 23: Front Line Parts

    Safety box 577DBC 310324 Heating resistance capacity + immersion heater gasket 366461 Lighting glass sheet gasket 366557 Door stop 366572 Synthetic filter 386087 BONNET GRANDE CUISINE Registered Office: Rue des Frères Lumière - Z.I Mitry Compans 77292 MITRY MORY Cedex...

  • Page 24: Maintenance Programme

    The indicator opposite button 3 indicates a figure or a duration counted by the selected counter (the indicator indicates "xx xx" (x = a figure from 0 to 9)). BONNET GRANDE CUISINE Registered Office: Rue des Frères Lumière - Z.I Mitry Compans...

  • Page 25: Assistance For Maintenance

    (fluttering..) or the coil / draw of a solenoid valve. Follow the procedure above till the indicator opposite button 2 shows "n00". Button 1 The display opposite button 2 must show "7". BONNET GRANDE CUISINE Registered Office: Rue des Frères Lumière - Z.I Mitry Compans 77292 MITRY MORY Cedex...

  • Page 26: Outlet From Maintenance Cycles

    Lighting Injection solenoid valve Condenser solenoid valve Cleaning Ambient temperature Core probe Door Condenser Gas safety 10.4 OUTLET FROM MAINTENANCE CYCLES Button 5 BONNET GRANDE CUISINE Registered Office: Rue des Frères Lumière - Z.I Mitry Compans 77292 MITRY MORY Cedex...
