Toolbar (from left to right)
Connection status
n
Loading into the device
n
Loading from the device
n
Selection:
n
"block write mode" (variables can be edited first, without being transferred)
or
"direct mode" (variables are transferred immediately after being modified)

Commands

Loading the modified parameters (yellow down arrow)
n
Progress bar
n

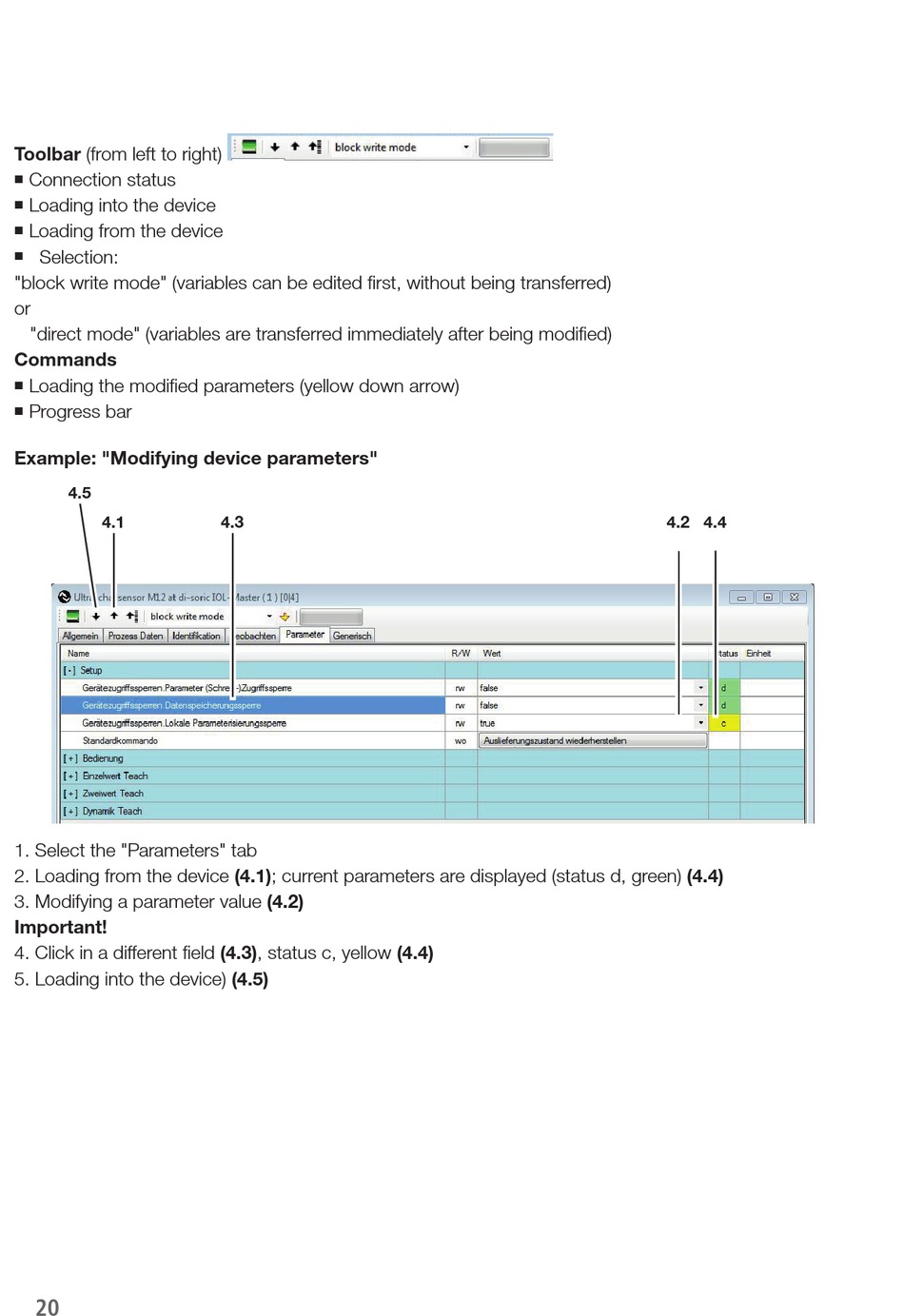

Example: "Modifying device parameters"
4.5
4.1
1. Select the "Parameters" tab
2. Loading from the device (4.1); current parameters are displayed (status d, green) (4.4)
3. Modifying a parameter value (4.2)
Important!
4. Click in a different field (4.3), status c, yellow (4.4)
5. Loading into the device) (4.5)
20
4.3 4.2 4.4
