Summary of Contents for Di-soric BC-100-20A

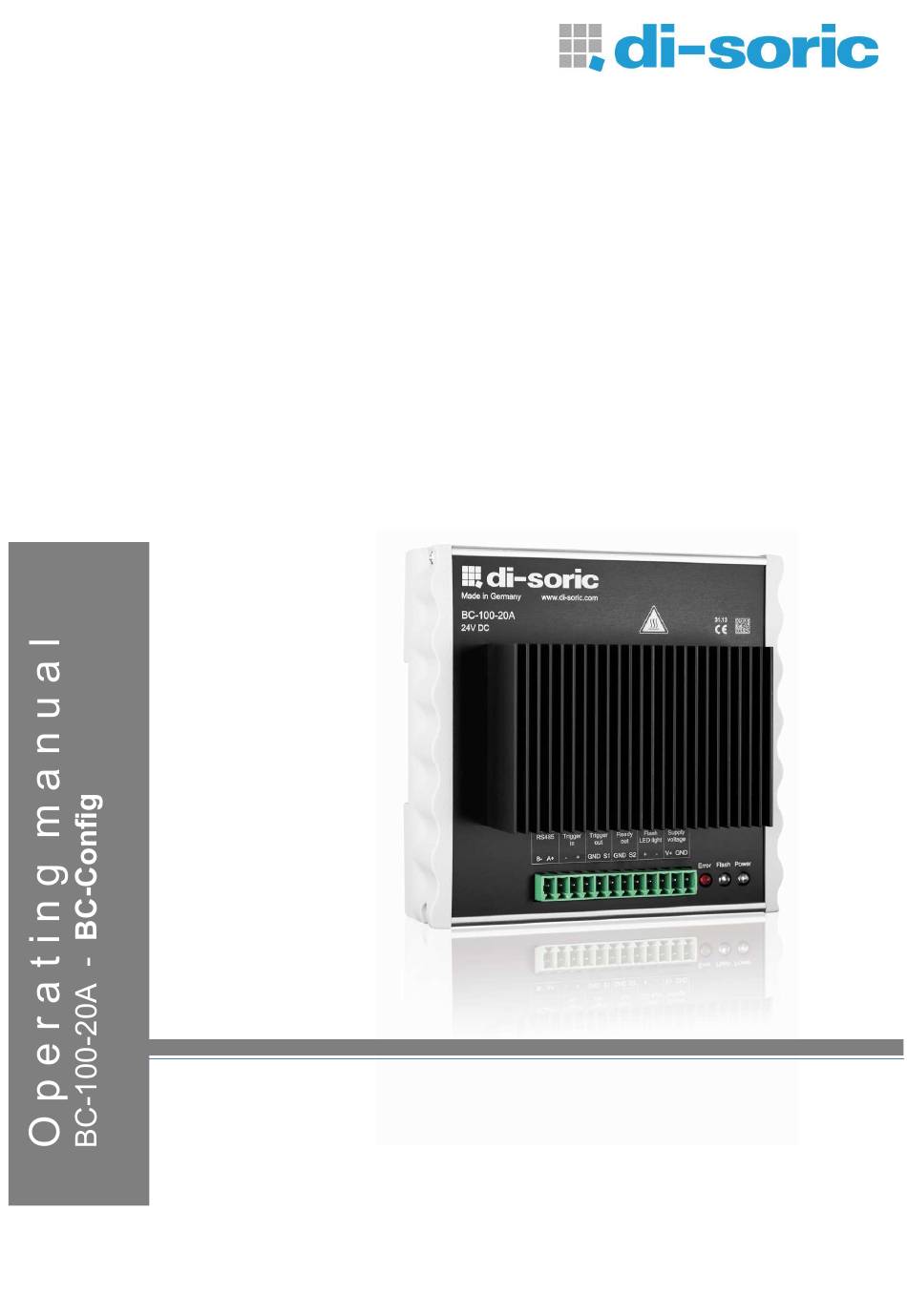

  • Page 1                     Flash controller for flashable lights                         ...
  • Page 2: Table Of Contents

    Operating manual – BC-Config Page 2 of 11 Flash controller BC-100-20A V08 / 05.04.16 Inhalt      Description  ................................. 3     Safety notice ................................ 3     Operation without LED lighting .......................... 4     Starting BC‐Config .............................. 4     Operation of BC‐100‐20A ............................. 4     Login procedure .............................. 4     Operating options / command set  .......................... 5  ...
  • Page 3: Description

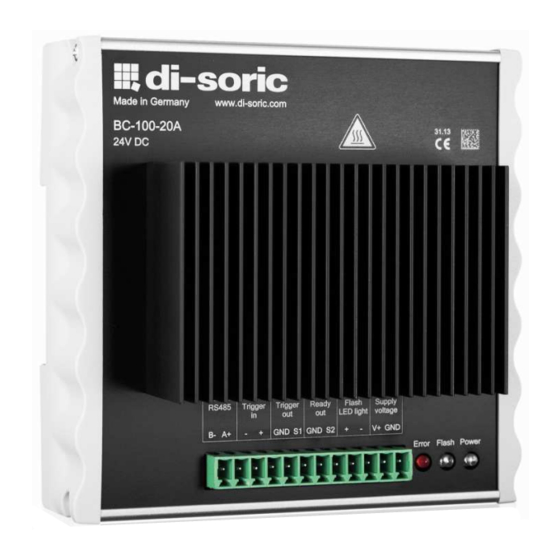

    Operating manual – BC-Config Page 3 of 11 Flash controller BC-100-20A V08 / 05.04.16 1 Description  The BC‐100‐20A is a configurable power source for flashable LED lights. It can deliver both pulsed current and constant  current. The level of the current, the time parameters and numerous additional functions are configured via the RS485  interface (point‐to‐point connection). For this purpose, the BC‐100‐20A is connected via a USB adapter to a PC.  A corresponding parameter and command set and a suitable terminal program are used for communication and  configuration.  After connecting an LED lighting system and entering the parameters, the BC‐100‐20A conducts a calibration run upon  initial startup to determine the internal control values needed for operation and saves them in non‐volatile memory  (EEPROM). The flash function can be started and stopped with corresponding commands. Automatic startup after  availability of the supply voltage is also possible. In this case, no further connection with the interface is necessary.  The BC‐100‐20A operates with the saved parameters, also after a shut‐down and re‐start.  In addition to the most common use in externally triggered pulse mode, the BC‐100‐20A can also be controlled  internally triggered, i.e. in strobe mode. In the case of lower current values, it can also be used as a constant power  supply for continuous operation.  Note: The BC‐100‐20A becomes hot during operation. Depending on the flash parameters used, a heat sink  temperature of up to 60°C can occur. It is necessary to provide for sufficient heat dissipation.  2 Safety notice    Flashing LED lights can generate very strong light impulses that can be harmful to the human organism  (for example, eye damage, headaches, epileptic reactions). They may be used only by trained personnel.  Effective protective measures may be necessary.       ...
  • Page 4: Operation Without Led Lighting

    Operating manual – BC-Config Page 4 of 11 Flash controller BC-100-20A V08 / 05.04.16 3 Operation without LED lighting  3.1 Starting BC‐Config  • Procure an RS485/USB adapter, if not already present  (available in the di‐soric product portfolio as a ready‐to‐use accessory).  Install the correct device drives for the RS485/USB adapter.  • • Connect the BC‐100‐20A to the PC/controller via the adapter.  • Start BC‐Config.  3.2 Operation of BC‐100‐20A  • First make sure that no LED lighting is connected.  • Connect device to 24 V DC power supply and switch on. Make sure that the power supply can deliver pulsed  current of at least 6 A, if maximum pulsed current is needed.  3.3 Login procedure    User name: user  Password:  di‐soric ...
  • Page 5: Operating Options / Command Set

    Operating manual – BC-Config Page 5 of 11 Flash controller BC-100-20A V08 / 05.04.16 4 Operating options / command set  4.1 User interface      4.2 Higher‐level commands  Command/parameter  Explanation  Start  Check the parameter set for consistency, save the configuration if OK, enable LED driver  Stop  Disable LED driver  Save  Check the parameter set for consistency and save the configuration if OK  Logout  Disconnect connection ...
  • Page 6: Configuration Commands / Parameters

    Operating manual – BC-Config Page 6 of 11 Flash controller BC-100-20A V08 / 05.04.16 4.3 Configuration commands / parameters  Permissible    Command/parameter  Explanation  values    Version    Display the current firmware  Temperature    Display of the current temperature  Supply Voltage    Display of the supply voltage  Error    Display of an error code for the customer support  Mode    Select flash mode or constant current mode  Current  100 … 20000  Set the LED current in mA ...
  • Page 7: Startup Of Bc-100-20A With Connected Led Lighting

    Operating manual – BC-Config Page 7 of 11 Flash controller BC-100-20A V08 / 05.04.16 5.5 Startup of BC‐100‐20A with connected LED lighting  Press the button “Start” to execute the new configuration, enable the LED drivers and start the calibration phase.  Note: As a safety function, the “Start” command also saves the current parameters and values as does the “Save”  command.  Note: The yellow LED indicates monitoring of the flash process and always lights up when the connected lighting  system is active. This is the case both in the calibration phase and in flash mode or constant current mode.  5.6 Calibration phase  After each “Start” command and when switched on in Autostart mode, the calibration phase is first executed.  This is used to test the connected LED lighting and to optimize the BC‐100‐20A for the connected LED lighting.  The “Stop” command can be used to stop the ongoing calibration procedure or normal operation at any time.  The LED driver is immediately switched off in this case.  Note: Do not change any parameters during the calibration phase!  The entire calibration phase is indicated by flashing of the green LED.  NOTE: The duration of the calibration phase depends on the connected LED lighting system and the configured  parameters. In the case of high T  values it can lock up for a very long time (up to 100 seconds).  During this calibration phase the LED lighting will light up, flicker or flash. Protective measures may be necessary.  After successful calibration the green LED lights up continuously. If the BC‐100‐20A detects errors or violation of the  permissible limits during the calibration procedure, the calibration is discontinued and the red LED indicates the error.  In this case it is necessary to adjust the parameters.  After successful completion of the calibration phase, the BC‐100‐20A operates with the detected control parameters  and the LED driver remains enabled.  6 Flash mode / constant current mode ...
  • Page 8: Faults And Errors

    Operating manual – BC-Config Page 8 of 11 Flash controller BC-100-20A V08 / 05.04.16 8 Faults and errors  8.1 General  If the BC‐100‐20A detects a fault, the LED driver is immediately switched off to prevent further damage to the  controller or the LED lighting. The red LED lights up continuously.  8.2 Troubleshooting  The BC‐100‐20A features internal temperature monitoring, which switches off the LED driver as a safety function if  the internal device temperature exceeds 65°C. A short circuit, broken cable or defective components in the LED  lighting can also cause a malfunction. Incorrect supply voltage can also cause a fault, for example in case of a supply  voltage fluctuation or outage. A maximum supply voltage fluctuation of ± 1V is permitted. Errors or limit violations  during the calibration phase can also result in a fault message.  For every fault message we recommend making a thorough check of all electrical connections, the LED lighting system,  the power supply and the device configuration.  8.3 Resetting an error / fault  To reset a fault in Autostart operating mode, you should reboot the device, by briefly disconnecting it from the power  supply. When the terminal connection is active, the commands “Stop” and “Start” can be used to trigger a new  calibration phase of the connected lighting.  If the fault cannot be reset despite a correct hardware environment and valid configuration, there may be a defect in  the BC‐100‐20A. In this case, you need to contact the di‐soric customer service department.  9 Trigger function  9.1 Internal trigger function ...
  • Page 9: Delay Function

    Operating manual – BC-Config Page 9 of 11 Flash controller BC-100-20A V08 / 05.04.16 10 Delay function  The BC‐100‐20A features a configurable pre‐trigger delay. This delay function provides for a reproducible delay  between the trigger signal and the flash pulse. The delay can be used to optimise synchronisation of the controller  to the trigger and delay times of the connected peripheral equipment, such as a camera.  The pre‐trigger delay time can be set under “Delay” in a range from 5 … 1,000,000 µs, although the following limits  must be observed for technical reasons:  Limiting condition:  Parameter  Value [in µs]  LED current (current) in  ≥ 50  < 2000 mA  Delay  ≥ 5  Delay  ≥ 2000 mA    The following restriction generally applies:  Delay    ≤    (CycleTime / 2) ‒ TimeOn  The pre‐trigger delay time can be set during operation under “Delay”. In this case the entered value is immediately  checked, saved and applied, if it is within the permissible limits. Otherwise, the old value is retained unchanged.  No new calibration phase is necessary.  11 Ready output  The BC‐100‐20A is equipped with a ready control output “Ready OUT”. This configurable output is always enabled ...
  • Page 10: Limit Values

    Operating manual – BC-Config Page 10 of 11 Flash controller BC-100-20A V08 / 05.04.16 13 Limit values  13.1 Description  Due to the numerous possible parameter configurations in combination with the different LED lighting systems  available on the market, limits and restrictions must be complied with to protect the BC‐100‐20A against overload  and damage.  The following limit values and restrictions are always checked when the “Save” and “Start” commands are executed.  If they are exceeded, an error is output. The configuration must then be checked and adjusted.    13.2 Limit values in constant current mode  Maximum LED lighting current  Current  ≤  1800 mA  13.3 Limit values in flash mode  Duty Cycle  Flash current I  max. TimeOn  ≤ 2000 mA  50000 µs  ≤ 5000 mA  5000 µs  ≤ 1 % ...
