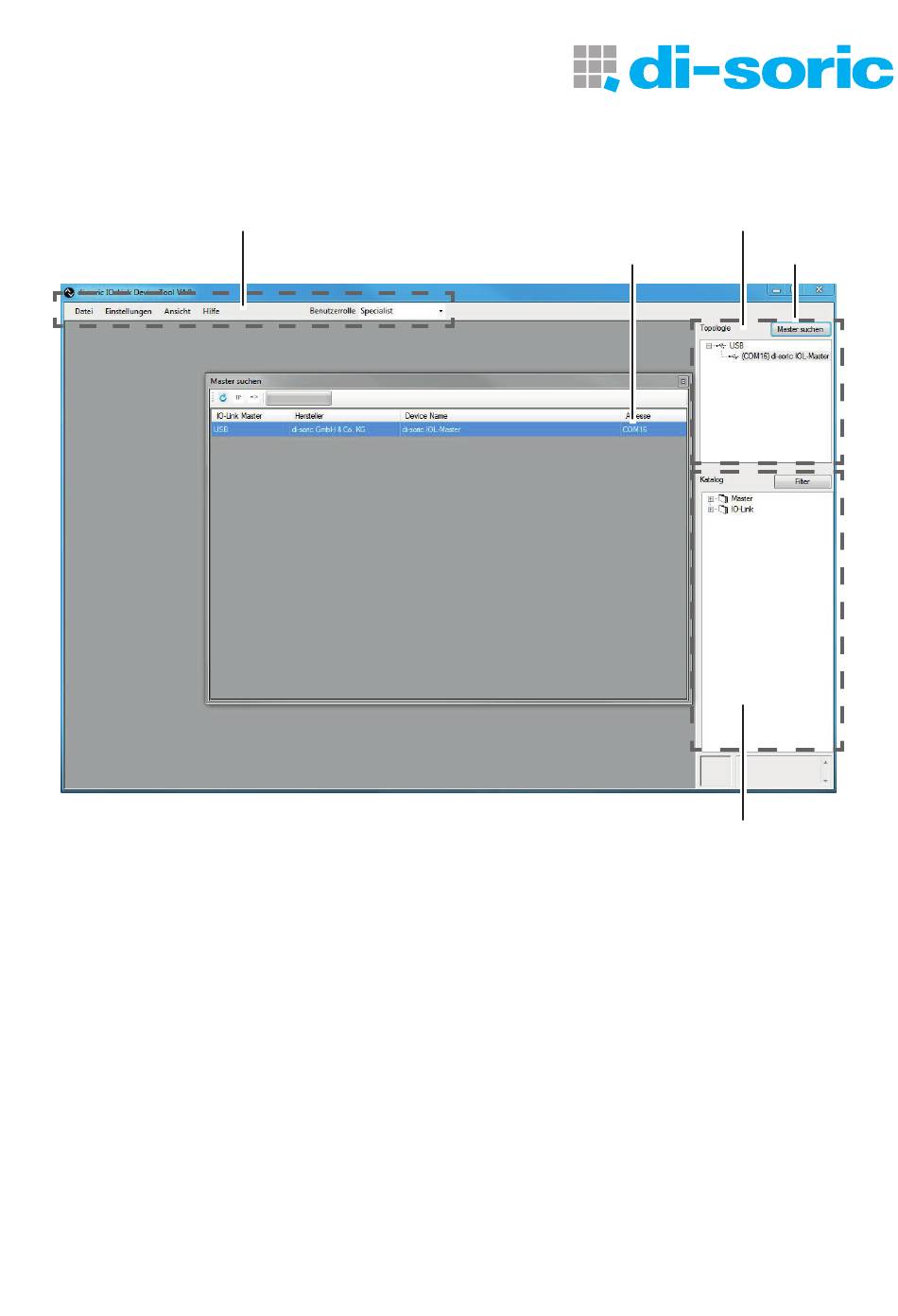

Overview of the program interface

After the program is started the workbench appears, which always acts as a frame for the software. It
consists of the menu bar, toolbar, topology and device catalog.
Menü- und Symbolleiste Topologie
1.2 1.1
Katalog
The topology with the accessible IO-Link masters and connected IO-Link devices is displayed and managed
in the Topology window area
You will find all devices relevant to the tool in the Catalog window area. These are the IO-Link Master and
the IO-Link devices. The catalog contains the devices that may be used depending on the operating mode.
The IO-Link devices are arranged according to manufacturer, device family and device (variant).
Entries can be deleted by right-clicking.

Menu bar and toolbar

File

Functions: New, open and save project
A project consists of a topology with the IO masters and the IO devices.

Settings

Functions: Changing the language, managing user roles, importing IODDs
