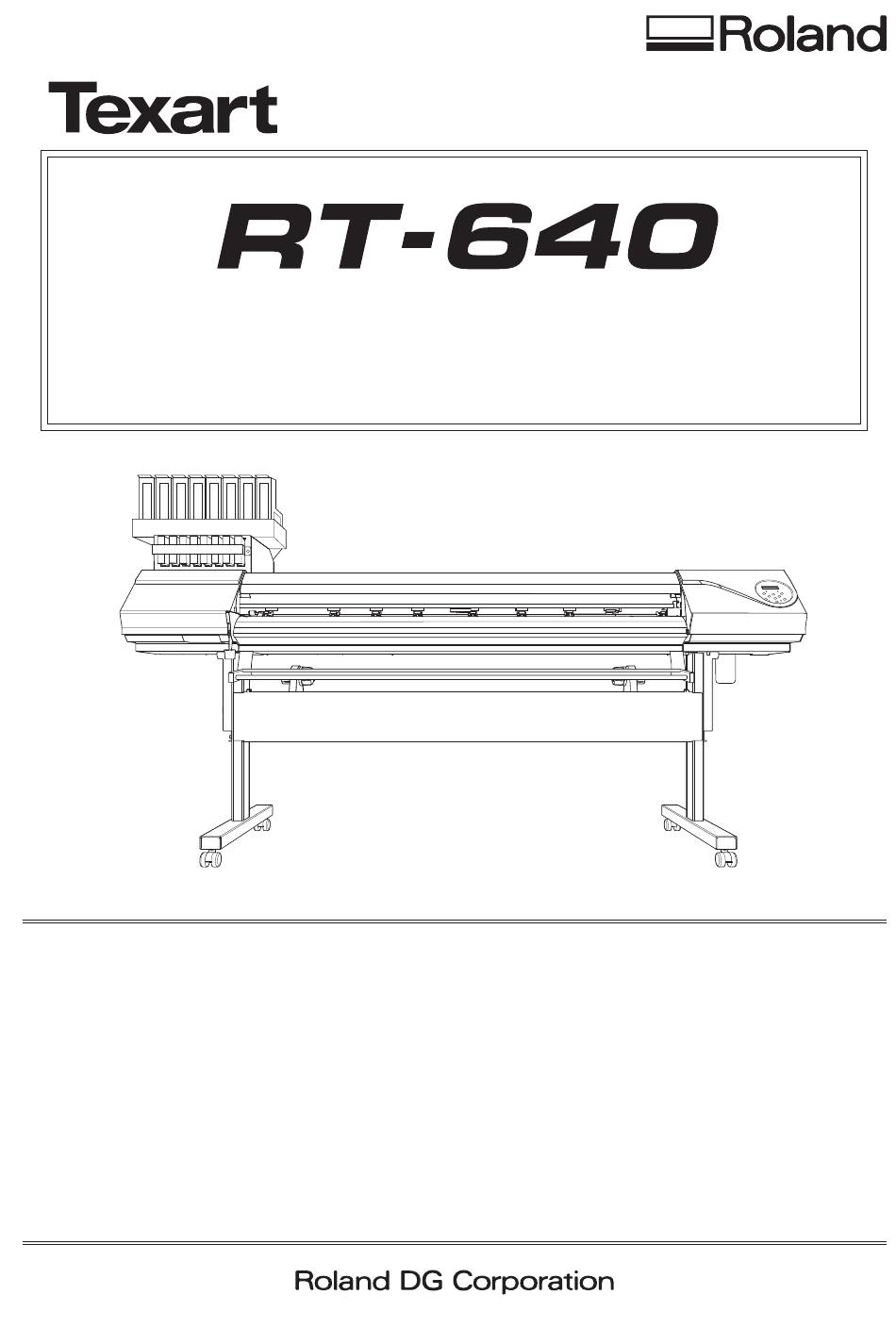

Roland Texart RT-640 Setup Manual

Hide thumbs Also See for Texart RT-640:
Table of Contents

Advertisement

Quick Links

Thank you very much for purchasing this product.
- To ensure correct and safe usage with a full understanding of this product's performance, please be sure to read through
this manual completely and store it in a safe location.
- Unauthorized copying or transferral, in whole or in part, of this manual is prohibited.
- The contents of this manual and the specifications of this product are subject to change without notice.
- This manual and the product have been prepared and tested as much as possible. If you find any misprint or error, please
inform us.
- Roland DG Corp. assumes no responsibility for any direct or indirect loss or damage which may occur through use of this
product, regardless of any failure to perform on the part of this product.
- Roland DG Corp. assumes no responsibility for any direct or indirect loss or damage which may occur with respect to any
article made using this product.
Setup Guide

Advertisement

Table of Contents
loading

Related Manuals for Roland Texart RT-640

Summary of Contents for Roland Texart RT-640

  • Page 1 - This manual and the product have been prepared and tested as much as possible. If you find any misprint or error, please inform us. - Roland DG Corp. assumes no responsibility for any direct or indirect loss or damage which may occur through use of this product, regardless of any failure to perform on the part of this product.
  • Page 2 For EU Countries Manufacturer: ROLAND DG CORPORATION 1-6-4 Shinmiyakoda, Kita-ku, Hamamatsu-shi, Shizuoka- ken, 431-2103 JAPAN The importer in the EU: Roland DG Europe Holdings B.V. Prof. J.H. Bavincklaan 2, 1183 AT, Amstelveen, The Netherlands...

  • Page 3: Table Of Contents

    3. About the Symbols ............................20 4. Assembling and Installing .........................21 Assembling and Installing ..........................21 Installing the Roland Ink System ......................... 32 5. Filling with Ink ..............................33 Filling with Ink for the First Time ......................... 33 6. Network Settings ............................43 Step 1：Make the Network Settings for the Computer ..............
  • Page 4 For China 产 产 品 品 中 中 有 有 毒 毒 有 有 害 害 物 物 质 质 或 或 元 元 素 素 的 的 名 名 称 称 及 及 含 含 量 量 有毒有害物质或元素 部件名称 六价铬...

  • Page 5: Introduction

    ・ RT-640M https://webmanual.rolanddg.com/RT-640M About Roland OnSupport Using OnSupport allows you to receive your printer's ink status and error information as an email sent to your PC and mobile phone. You can also receive product updates and other support information from OnSupport.

  • Page 6: To Ensure Safe Use

    To Ensure Safe Use Improper handling or operation of this machine may result in injury or damage to property. Points which must be observed to prevent such injury or damage are described as follows. About WARNING and CAUTION Notices Used for instructions intended to alert the user to the risk of death or severe injury WARNING should the unit be used improperly.
  • Page 7 To Ensure Safe Use Incorrect operation may cause injury WARNING CAUTION Be sure to follow the operation Exercise caution to avoid being pinched procedures described in the manual. or becoming caught. Never allow anyone unfamiliar with the Inadvertent contact with certain areas may usage or handling of the machine to cause the hand or fingers to be pinched or touch it.
  • Page 8 Continuing to use the machine may result immediately disconnect the power cord in fire, electrical shock, or injury. Contact and contact your authorized Roland DG your authorized Roland DG Corp. dealer. Corp. dealer. Do not use the supplied power cord for Never place any flammable object nearby.
  • Page 9 To Ensure Safe Use Important notes about the power cord, plug, and electrical outlet Never place any object on top or Never allow to get wet. Never bend or twist with undue subject to damage. force. Never make hot. Never pull with undue force. Dust may cause fire.
  • Page 10 To Ensure Safe Use Ink, cleaning liquid, and discharged fluid are toxic WARNING CAUTION Never store ink, cleaning liquid, or Ensure adequate ventilation for the work discharged fluid in any of the following area. locations. Failing to perform ventilation may result in a health hazard or danger of combustion •...

  • Page 11: Pour Utiliser En Toute Sécurité

    Pour utiliser en toute sécurité La manipulation ou l’utilisation inadéquates de cet appareil peuvent causer des blessures ou des dommages matériels. Les précautions à prendre pour prévenir les blessures ou les dommages sont décrites ci-dessous. Avis sur les avertissements Utilisé pour avertir l’utilisateur d’un risque de décès ou de blessure grave en ATTENTION cas de mauvaise utilisation de l’appareil.
  • Page 12 Pour utiliser en toute sécurité L’utilisation incorrecte peut causer des blessures ATTENTION PRUDENCE S’assurer de suivre les procédures Faire preuve de prudence pour éviter d’utilisation décrites dans le manuel. Ne l’écrasement ou le coincement. jamais permettre à quiconque ne connaît La main ou les doigts peuvent être écrasés ou pas le fonctionnement ou la manutention coincés s’ils entrent en contact avec certaines...
  • Page 13 Continuer à utiliser l’appareil peut immédiatement le câble d’alimentation et causer un incendie, un choc électrique communiquer avec le représentant Roland ou des blessures. Communiquer avec le DG Corp. autorisé. représentant Roland DG Corp. Autorisé.
  • Page 14 Pour utiliser en toute sécurité Remarques importantes à propos du câble d’alimentation, de la fiche et de la prise électrique Ne jamais déposer aucun objet sur le Ne jamais laisser l’eau toucher le Ne jamais plier ni tordre le câble avec câble, sur la fiche ou sur la prise car câble, la fiche ou la prise.
  • Page 15 Pour utiliser en toute sécurité L’encre, les liquides nettoyants et les liquides usées sont toxiques PRUDENCE ATTENTION S’assurer que le lieu de travail est bien aéré. Ne jamais entreposer d’encre, de liquide L’absence d’aération adéquate peut créer de nettoyage ou des liquides usés dans les une situation dangereuse pour la santé...

  • Page 16: Installation Environment

    1. Installation Environment Deciding on an Installation Site Install in a quiet, stable location offering good operating conditions. An unsuitable location can cause accident, fire, faulty operation, or breakdown. WARNING Install the machine in a location that is level, stable, and able to bear the weight of the machine.

  • Page 17: Temperature And Humidity

    1. Installation Environment Temperature and Humidity Maintain the specified temperature and humidity even when the machine is not in use. If temperatures are too high or too low, it may cause malfunction. During operation: Temperature 18 to 25˚C (64.4 to 77 ˚F), relative humidity 35 to 65 % RH (no con- densation) During non-operation: Temperature 15 to 30˚C (59 to 86 ˚F), relative humidity 20 to 80% (no con- densation)
  • Page 18 1. Installation Environment Warning Labels Warning labels are affixed to make areas of danger immediately clear. The meanings of these labels are as follows. Be sure to heed their warnings. Also, never remove the labels or allow them to become obscured.
  • Page 19 1. Installation Environment Vignettes d'avertissement Des vignettes d'avertissement sont apposées pour qu'il soit facile de repérer les zones dangereuses. La signification des vignettes est donnée ci-dessous. Respecter les avertissements. Ne jamais retirer les vignettes et ne pas les laisser s'encrasser. Attention : Risque de pincement Faire attention de ne pas coincer les doigts pendant le chargement...

  • Page 20: Included Items

    2. Included Items The following items are packed together with the machine. Make sure they are all present and accounted for. Printer unit Arms (one for right and Stand legs (one for Power cord (1) Casters (2) left each) right and left each) Stand stay (1) Shafts (2) Feed adjusters (2)
  • Page 21 Read this first (1) (This document) (1) TENANCE GUIDE (1) * Not required when using four colors (cyan, magenta, yellow, and black). Roland Ink System Ink pouch holder (1) Subtank guard (1) Ink tube covers (bottom) Ink tube cover (top) (1)

  • Page 22: About The Symbols

    3. About the Symbols The meanings of the symbols used in this document are as follows. The symbol indicates things that must be followed in relation to operation. Always follow these instructions to prevent accident or damage due to misop- eration.

  • Page 23: Assembling And Installing

    4. Assembling and Installing Completed drawing About the picture Tighten temporarily Tighten fully Assembling and Installing WARNING Perform this task with all power switches left switched off. Otherwise sudden movement of the machine may cause injury. CAUTION Unpacking and installation must be carried out by six or more personnel. Otherwise the machine or the stand may fall, resulting in injury.
  • Page 24 4. Assembling and Installing  When tightening the bolts fully, tighten them securely. Loose bolts may cause the stand to wobble. Assemble the stand.  Place the stand stay on the stand legs with the U-shaped brackets on the inside. ...
  • Page 25 4. Assembling and Installing Check the assembly. Verify below. View from right above View as seen from the front That it is a That it is a parallel parallel Tighten the bolts fully at the four locations on the top and the four locations on the side as in and then Tighten...
  • Page 26 4. Assembling and Installing Install the casters onto the stand legs. Install to the side with the most distance from the stand stay to the end. Tighten Pipe fully Bolts (long): 8 Set the stand upright and tighten the bolts as in and then to install the arms.
  • Page 27 4. Assembling and Installing  Place the machine on the stand.  Tighten the bolts as in and then to secure the machine to the stand. Tighten fully Bolts (long): 4 Washers: 4...
  • Page 28 4. Assembling and Installing Installing the feed adjusters.  Install the feed adjuster stays as in and then Only the bolts on the left side when looking at the front of the machine are tightened fully. The bolts on the right side are tightened temporarily. Tighten Tighten temporarily...
  • Page 29 4. Assembling and Installing Install the other feed adjuster to the back of the machine. Take care to install the adjuster with the correct orientation. Tighten fully Bolts (short): 4 Underside Fully tighten the temporarily tightened bolts on the right side of the feed adjuster stay as in and then Tighten...
  • Page 30 4. Assembling and Installing Install the media holder.  Place the shafts on the stand.  Pass the shaft through the media holder (left) as in and then Pass the shaft through from the right when looking at the rear of the machine.
  • Page 31 4. Assembling and Installing Move the media holder (left) to the left side of the shaft, and attach the retaining screw. Tightening the retaining screw only lightly is sufficient. Tighten loosely In the same manner, pass the shaft through the media holder (right) as in and then...
  • Page 32 4. Assembling and Installing Attach the retaining screw. Tightening the retaining screw only lightly is sufficient. Tighten loosely Install the shaft clamps to secure the shaft. Make sure the media holder is not so close to the end of the shaft that it becomes pinched by the shaft clamp.
  • Page 33 4. Assembling and Installing Install the drain bottle.  Remove the bottom plug. Be careful as the fluid used in the inspection may still remain when removing it.  Install the drain bottle.  Turn the bottle without applying excessive force. ...

  • Page 34: Installing The Roland Ink System

     Store the retainers because they are needed again when transporting the machine. Installing the Roland Ink System About this procedure This procedure must be performed by a suitably qualified service technician. Never attempt to perform this procedure yourself.

  • Page 35: Filling With Ink

    5. Filling with Ink About the picture Direction mark ou can select settings and switch screens by pressing the cursor keys indicating directions. ENTER mark When you press [EN- TER], you can set the selected setting and execute the processing. Press MENU button once Press button several times...
  • Page 36 5. Filling with Ink  Connect both the power cord and the Ethernet cable (commercially available). Use a power plug adapter if the electrical outlet is a two-prong outlet. Ethernet cable Never insert a telephone cable. (Category 5 or higher) Ethernet (100Base-TX is recommended.)
  • Page 37 5. Filling with Ink  Lock the casters so the machine does not move.  Close the front cover.  Switch on the main power switch.
  • Page 38 5. Filling with Ink  Hold down and press the sub power switch.  When the screen on the left is displayed, select the desired language and press  Press to select the desired length unit, and press  Select the desired temperature unit in the same way, and press Select the ink type.
  • Page 39 5. Filling with Ink When the screen on the left is displayed, set the drain bottle.  Press Apply the Cleaning Liquid.  When the screen on the left is displayed, remove the right cover.  Touch the back of the operation panel to discharge any static electricity.
  • Page 40 5. Filling with Ink Verify that the screen on the left is displayed, and apply cleaning liquid to the rubber portion of the outer frame. Area to apply * Cleaning liquid will be supplied by the service technician during installation. ...
  • Page 41 5. Filling with Ink Fill the machine with ink.  Verify that the screen on the left is displayed, and pull the ink pouch holder toward the front of the machine.  Press If no subtank or the subtank guard is attached, the following screen will be displayed. Insert a subtank for every slot whose number is flashing.
  • Page 42 In the event you install an ink pouch of the wrong color, contact your authorized Roland DG Corp. dealer.  Never touch the area around the ink filling port. Touching this area accidentally may force air into the ink path and cause a malfunction.
  • Page 43 5. Filling with Ink  When the screen on the left is displayed, raise all the ink pouch holders. Hold here Do not let go off the ink pouch holders when lifting them. Raise the holders slowly until they click firmly into place. Ink will leak if the ink pouch holder is not returned to the correct position. ...
  • Page 44 After this, the next step is to adjust the feed adjusters and the media holder adjusters. This procedure will be performed by a Roland DG service technician, so leave it up to them. * For information on how to install the take-up system, refer to the take-up system user’s manual.

  • Page 45: Network Settings

    6. Network Settings Memo The examples used in the procedures for making the settings described in this section assume you are using one computer and one machine. The settings used in this section are merely example settings. The procedures and setting values described here may not be suitable for all operating environments. If the computer you're using is connected to a number of networked devices or to the Internet, incorrect settings may adversely affect the entire network.
  • Page 46 6. Network Settings  Select [Internet Protocol Version 4 (TCP/ IPv4)] and then click [Properties]. If the check box for [Internet Protocol] is unselected, then click and check the box. The [Internet Protocol Version 4(TCP/IPv4)] dialog box will appear.  Select [Use the following IP address].

  • Page 47: Step 2：Make The Network Settings On The Machine

    6. Network Settings Step 2：Make the Network Settings on the Machine Set the IP address.  Press  Press several times until the screen shown on the left appears. Press in this order.  Press three times.  [IP ADDRESS]: 192.168.000.XXX Note: Here, "XXX"...
  • Page 48 6. Network Settings  Press to select the address number. [SUBNET MASK]: 255.255.255.000 Note: For the subnet mask, make the setting the same value as the one used by the computer. Here, "255.255.255.000" is entered by way of example.  Press ...

  • Page 49: Step 3：Make The Port Settings For The Software Rip

    6. Network Settings Step 3：Make the Port Settings for the Software RIP The settings for the software RIP will be made here. For the setup procedures, refer to the documentation of the instructions for the software RIP. The way to confirm that the network connection has been established varies from one software RIP to another.
  • Page 52 R6-200131T...
