Thank you very much for purchasing this product.
- To ensure correct and safe usage with a full understanding of this product's performance, please be sure to read through
this manual completely and store it in a safe location.
- Unauthorized copying or transferral, in whole or in part, of this manual is prohibited.
- The contents of this manual and the specifications of this product are subject to change without notice.
- This manual and the product have been prepared and tested as much as possible. If you find any misprint or error, please
inform us.
- Roland DG Corp. assumes no responsibility for any direct or indirect loss or damage which may occur through use of this
product, regardless of any failure to perform on the part of this product.
- Roland DG Corp. assumes no responsibility for any direct or indirect loss or damage which may occur with respect to any
article made using this product.

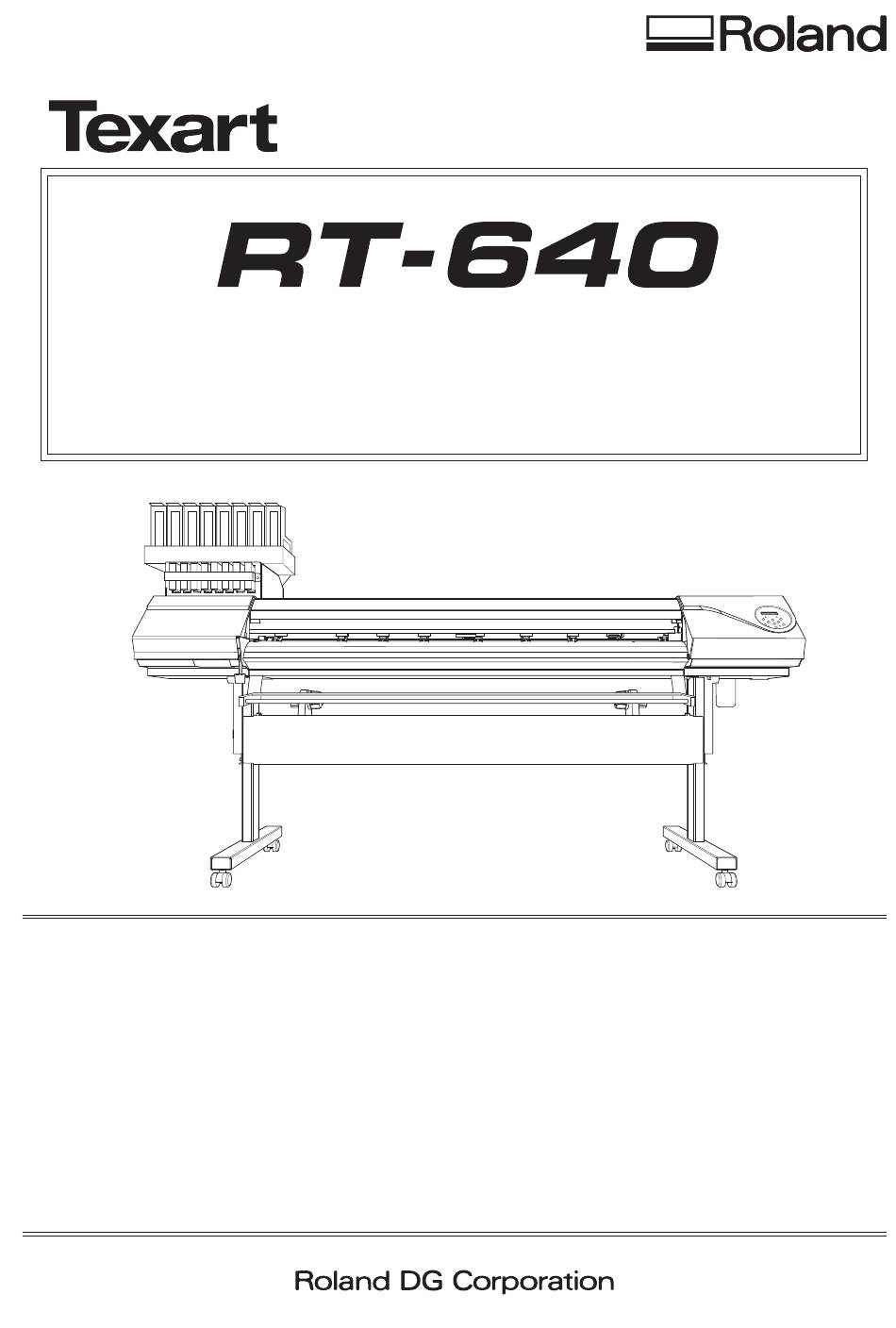

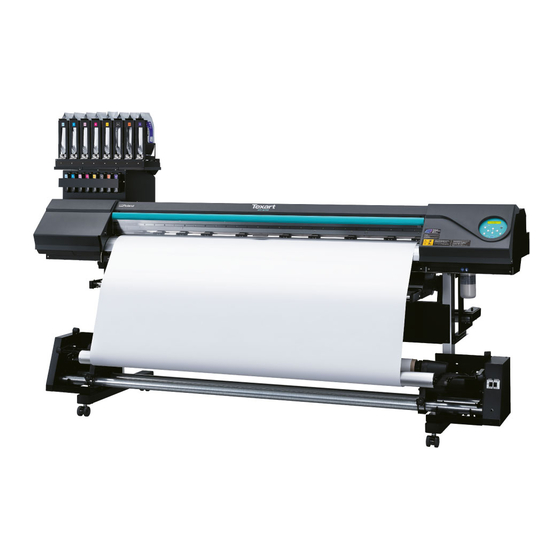

Setup Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Texart RT-640 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Roland Texart RT-640

Summary of Contents for Roland Texart RT-640

  • Page 1 - This manual and the product have been prepared and tested as much as possible. If you find any misprint or error, please inform us. - Roland DG Corp. assumes no responsibility for any direct or indirect loss or damage which may occur through use of this product, regardless of any failure to perform on the part of this product.

  • Page 3: Table Of Contents

    Step 2: Make the Network Settings on the Machine ............38 Step 3: Make the Port Settings for the Software RIP ............39 Company names and product names are trademarks or registered trademarks of their respective holders. Copyright © 2014 Roland DG Corporation http://www.rolanddg.com/...

  • Page 5: Installation Environment

    1. Installation Environment Deciding on an Installation Site Install in a quiet, stable location offering good operating conditions. An unsuitable location can cause accident, fire, faulty operation, or breakdown. WARNING Install the machine in a location that is level, stable, and able to bear the weight of the machine.

  • Page 6: Temperature And Humidity

    1. Installation Environment Temperature and Humidity Maintain the specified temperature and humidity even when the machine is not in use. If temperatures are too high or too low, it may cause malfunction. During operation: Temperature 18 to 25˚C (64.4 to 77 ˚F), relative humidity 35 to 65 % RH (no con- densation) During non-operation: Temperature 15 to 30˚C (59 to 86 ˚F), relative humidity 20 to 80% (no con- densation)

  • Page 7: Included Items

    2. Included Items The following items are packed together with the machine. Make sure they are all present and accounted for. Printer unit Arms (one for right and Stand legs (one for Power cord (1) Casters (2) left each) right and left each) Stand stay (1) Shafts (2) Feed adjusters (2)
  • Page 8 Read this first (1) document) (1) INKJET PRINTER MAIN- TENANCE GUIDE (1) * Not required when using four colors (cyan, magenta, yellow, and black). Roland Ink System Ink pouch holder (1) Subtank guard (1) Ink tube covers (bottom) Ink tube cover (top) (1)

  • Page 9: About The Symbols

    3. About the Symbols The meanings of the symbols used in this document are as follows. The symbol indicates things that must be followed in relation to operation. Always follow these instructions to prevent accident or damage due to misoperation. The symbol indicates things that must be checked visually in relation to op- eration.

  • Page 10: Assembling And Installing

    4. Assembling and Installing Completed drawing About the picture Tighten temporary Tighten fully Assembling and Installing WARNING Perform this task with all power switches left switched off. Otherwise sudden movement of the machine may cause injury. CAUTION Unpacking and installation must be carried out by six or more personnel. Otherwise the machine or the stand may fall, resulting in injury.
  • Page 11 4. Assembling and Installing When tightening the bolts fully, tighten them securely. Loose bolts may cause the stand to wobble. Assemble the stand.   Tighten temporary Bolts (long): 8...
  • Page 12 4. Assembling and Installing View from right above Tighten fully...
  • Page 13 4. Assembling and Installing Tighten fully Tighten Pipe fully Bolts (long): 8  Tighten fully Bolts (long): 8 FRONT...
  • Page 14 4. Assembling and Installing   Tighten fully Bolts (long): 4...
  • Page 15 4. Assembling and Installing Installing the feed adjusters.  Tighten Tighten temporary fully Bolts (long): 2 Bolts (long): 2 Only bolts on left side are tightened fully. Bolts on right side are tightened tempo- rarily.  Tighten fully Bolts (short): 4 上面...
  • Page 16 4. Assembling and Installing Tighten fully Bolts (short): 4 Tighten fully...
  • Page 17 4. Assembling and Installing Install the media holder.   Tighten loosely. Tighten loosely.
  • Page 18 4. Assembling and Installing Tighten loosely.
  • Page 19 4. Assembling and Installing Tighten fully...
  • Page 20 4. Assembling and Installing Install the drain bottle.  Be careful as the fluid used in the inspection may still remain when removing it.  Turn the bottle without applying excessive force. Remove it only when you are disposing of col- lected ink.
  • Page 21 4. Assembling and Installing Remove the retainers.  Store the retainers be- cause they are needed again when transport- ing the machine.

  • Page 22: Filling With Ink

    Leave this work to a suitably qualified worker. This procedure includes work near sources of electrical danger and complex assembly work. Incorrect work may result in injury and mechanical malfunction. Items used in this procedure Roland Ink System 1 set Tube caps Printer unit accessories...
  • Page 23 5. Filling with Ink Install the ink pouch holder. ...
  • Page 24 5. Filling with Ink Replace tubes.  Removed tube Included Y-shaped tube for new installation...
  • Page 25 5. Filling with Ink First insert the dotted tube through the square bush. Install the tubes from below in order.  Take care to ensure that the tube does not break.  If a tube breaks, do not use it. Use a spare supplied by the service technician. Ensure that the dotted end of the tube is at the top.
  • Page 26 5. Filling with Ink This procedure is required when using eight colors (cyan, magenta, yellow, black, light cyan, light magenta, orange, and violet). It is not required when using four colors (cyan, magenta, yellow, and black). Order of ink color labels When using four colors When using eight colors...
  • Page 27 5. Filling with Ink Switch on the power switch and make the initial settings.  Ethernet cable (Cat- Never insert a egory 5 or higher) Ethernet (100Base-TX telephone cable. is recommended.) WARNING Connect to electrical outlet that complies with this machine's ratings (for voltage, frequency, and current).
  • Page 28 5. Filling with Ink ...
  • Page 29 5. Filling with Ink   Hold down and press the sub power switch.  Select the language and the unit of measurement (Length, Temperature) you want.
  • Page 30 5. Filling with Ink Select the ink type.  Press...
  • Page 31 5. Filling with Ink Apply the Cleaning Liquid.  OPEN COVER R 　　 Discharge any static electricity...
  • Page 32 5. Filling with Ink Area to apply Discard the stick after use. Reusing cleaning sticks may reduce printing quality. * Cleaning liquid will be supplied by the service technician during installation.   Press Set the subtank cartridges. ...
  • Page 33 5. Filling with Ink Press SET SUBTANK 　　　12345678 Any subtank can be inserted in any slot. Install a subtank in every slot by inserting each one firmly as far as it will go.  Order of ink color labels When using four colors When using eight colors...
  • Page 34 In the event you install an ink pouch of the wrong color, contact your authorized Roland DG Corp. dealer.  Never touch the area around the ink filling port. Touching this area accidentally may force air into the ink path and cause a malfunction.
  • Page 35 5. Filling with Ink Press Hold here Do not let go of the ink pouch holders when lifting them. Raise the holders slowly until they click firmly into place. Ink will leak if the ink pouch holder is not returned to the correct position.
  • Page 36 5. Filling with Ink  Detach the drain bottle, discard the discharged fluid to empty it. CAUTION Before you detach the drain bottle, be sure to wait for the screen to display "EMPTY DRAIN BOTTLE." Failing to follow this procedure may cause discharged fluid to flow out of the tube and spill, soiling your hands or the floor.
  • Page 37 5. Filling with Ink  After this, the next step is to adjust the feed adjusters. This procedure will be performed by a Roland DG service technician, so leave it up to them.  For information on how to install the take-up system, refer to the take-up system user’s manual.

  • Page 38: Network Settings

    6. Network Settings Memo The examples used in the procedures for making the settings described in this section assume you are using one computer and one machine. The settings used in this section are merely example settings. The procedures and setting values described here may not be suitable for all operating environments. If the computer you're using is connected to a number of networked devices or to the Internet, incorrect settings may adversely affect the entire network.
  • Page 39 6. Network Settings  Select [Internet Protocol Version 4 (TCP/ IPv4)] and then click [Properties]. If the check box for [Internet Protocol] is unselected, then click and check the box. The [Internet Protocol Version 4(TCP/IPv4)] dialog box will appear.  Select [Use the following IP address].

  • Page 40: Step 2: Make The Network Settings On The Machine

    6. Network Settings Step 2: Make the Network Settings on the Machine Set the IP address. [IP ADDRESS]: NETWORK 192.168.000.XXX IP ADDRESS 　　 Here, "XXX" can be any number between 1 and 254. For the part corresponding to "192.168.000," MENU IP ADDRESS SYSTEM INFO.

  • Page 41: Step 3: Make The Port Settings For The Software Rip

    Roland VersaWorks You can check whether the connection to the network has been complete by using the printing-test feature. For the information on the method to conduct a printing test, refer to the documentation for the Roland VersaWorks Other software RIP...
  • Page 44 R1-141107 1000012754...
