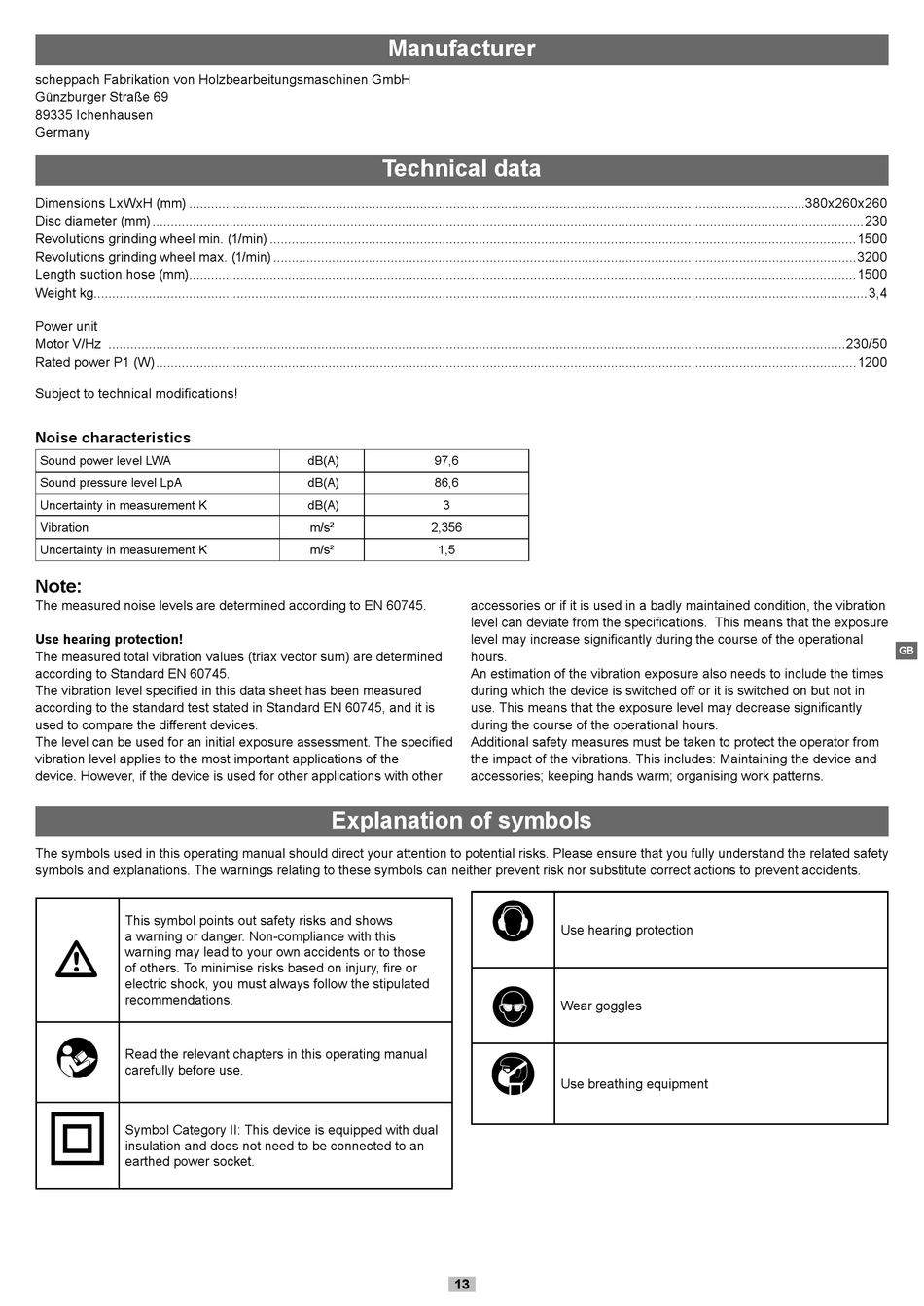

Technical Data; Explanation Of Symbols - Scheppach DS200 Translation Of The Original Manual

scheppach Fabrikation von Holzbearbeitungsmaschinen GmbH
Günzburger Straße 69
89335 Ichenhausen
Germany
Dimensions LxWxH (mm) ........................................................................................................................................................................380x260x260
Disc diameter (mm) ..................................................................................................................................................................................................230
Revolutions grinding wheel min. (1/min) ................................................................................................................................................................1500
Revolutions grinding wheel max. (1/min) ...............................................................................................................................................................3200
Length suction hose (mm) ......................................................................................................................................................................................1500
Weight kg ...................................................................................................................................................................................................................3,4
Power unit
Motor V/Hz .........................................................................................................................................................................................................230/50
Rated power P1 (W) ...............................................................................................................................................................................................1200
Subject to technical modifications!
Noise characteristics
Sound power level LWA
Sound pressure level LpA
Uncertainty in measurement K
Vibration
Uncertainty in measurement K
Note:
The measured noise levels are determined according to EN 60745.
Use hearing protection!
The measured total vibration values (triax vector sum) are determined
according to Standard EN 60745.
The vibration level specified in this data sheet has been measured
according to the standard test stated in Standard EN 60745, and it is
used to compare the different devices.
The level can be used for an initial exposure assessment. The specified
vibration level applies to the most important applications of the
device. However, if the device is used for other applications with other
The symbols used in this operating manual should direct your attention to potential risks. Please ensure that you fully understand the related safety
symbols and explanations. The warnings relating to these symbols can neither prevent risk nor substitute correct actions to prevent accidents.
This symbol points out safety risks and shows
a warning or danger. Non-compliance with this
m
warning may lead to your own accidents or to those
of others. To minimise risks based on injury, fire or
electric shock, you must always follow the stipulated
recommendations.
Read the relevant chapters in this operating manual
carefully before use.
Symbol Category II: This device is equipped with dual
insulation and does not need to be connected to an
earthed power socket.
Manufacturer

Technical data

dB(A) 97,6
dB(A) 86,6
dB(A) 3
m/s² 2,356
m/s² 1,5
accessories or if it is used in a badly maintained condition, the vibration
level can deviate from the specifications. This means that the exposure
level may increase significantly during the course of the operational
hours.
An estimation of the vibration exposure also needs to include the times
during which the device is switched off or it is switched on but not in
use. This means that the exposure level may decrease significantly
during the course of the operational hours.
Additional safety measures must be taken to protect the operator from
the impact of the vibrations. This includes: Maintaining the device and
accessories; keeping hands warm; organising work patterns.

Explanation of symbols

13
Use hearing protection
Wear goggles
Use breathing equipment
GB
