LOADING AND CLEANING

DOOR SWITCH

When opening the door a special switch disconnects the
power from the machine electrical system to allow the
operations described below, regarding loading and routine
cleaning, in full safety.
All operations requiring the machine to be energized
should be carried out by qualified personnel ONLY,
informed about the specific risks of such situation.
To energize the system with the door open, simply insert
the special key into the slot (see Figure 1).
The door can be closed only after removing the key.

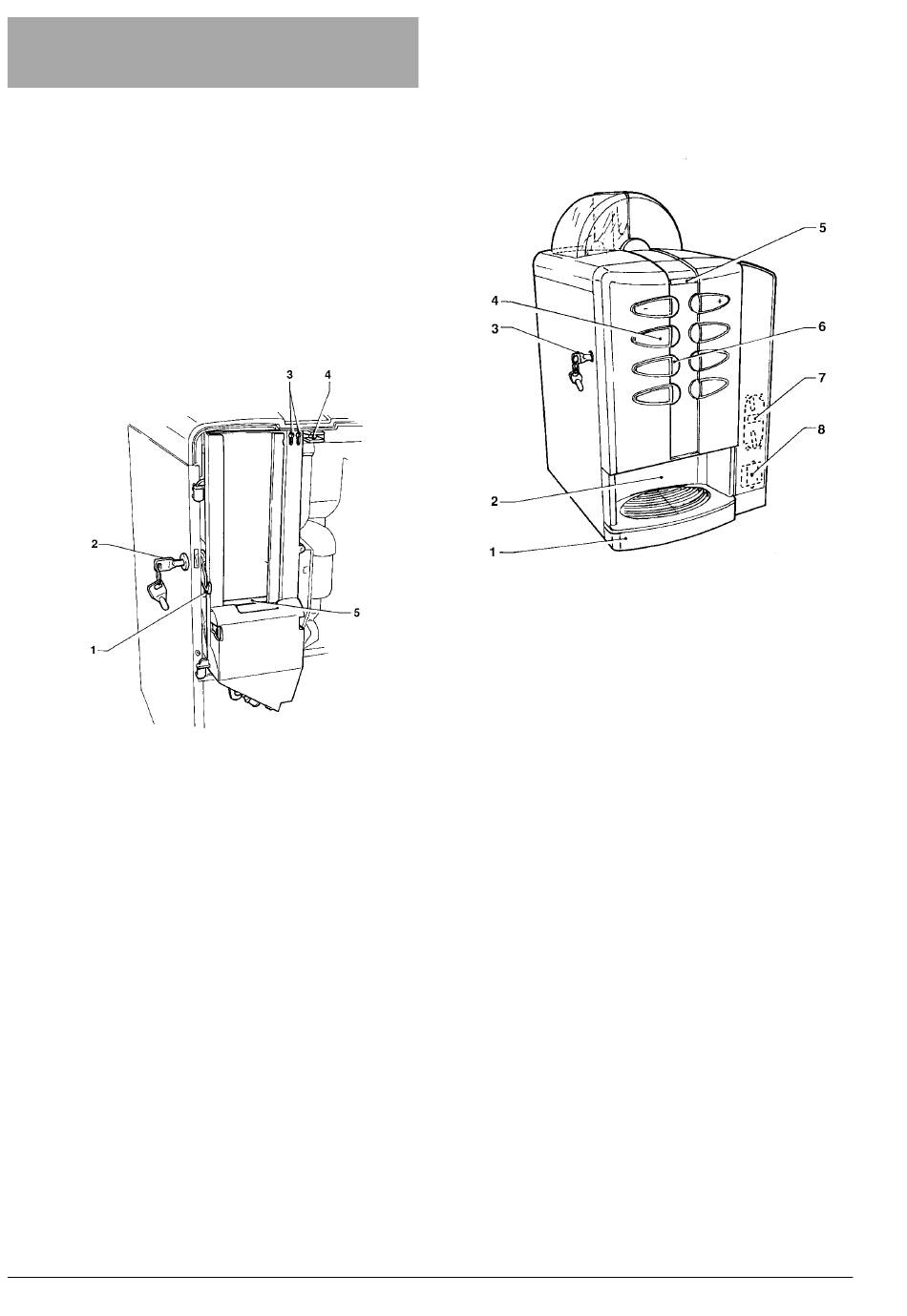

Fig. 1
1 - Door lock bolt
2 - Door lock
3 - Stirrer stacker adjusting slots
4 - Door switch
5 - Stirrer weight

MAINTENANCE AND DISINFECTION

According to current safety rules and health regulations,
the operator of an automatic vending machine is respon-
sible for the hygiene and the maintenance of the foodstuff
circuits, to prevent formation of bacteria.
At installation the hydraulic circuits and the parts in
contact with foodstuff should be fully sanitised to
remove any bacteria which might have formed during
storage.
It is advisable that specific sanitising agents (such as
chlorine-based detergents or similar) are used for cleaning
also the surfaces which are not directly in contact with
foodstuff.
Some parts of the machine can be damaged by strong
detergents.
The manufacturer declines all responsibility for any dam-
age caused by the use of strong or toxic chemicals.
Before starting any maintenance operations requiring
parts of the unit to be removed, the machine must
always be disconnected from the power supply.
© by NECTA VENDING SOLUTIONS SpA

CONTROLS AND INFORMATION

All user controls and information are located on the exter-
nal side of the door (see Fig. 2).
The labels with the selection menu and the operating
instructions supplied with the machine must be inserted at
the time of installation, referring to the selection dose table.
Fig. 2
1 - Liquid waste tray
2 - Dispensing compartment
3 - Lock
4 - Spaces for product labels
5 - Alphanumeric display
6 - Selection buttons
7 - Prearrangement for front validator
8 - Prearrangement for "cashless" payment systems
The Programming button, used to access the machine
functions, is located on the internal side of the push-button
board.
Press the button once to enter "Maintenance" mode;
press the Programming button twice to enter "Program-
ming" mode.
Press selection button No. 3 and immediately after selec-
tion button No. 6 to automatically start filling the machine
hydraulic system.
