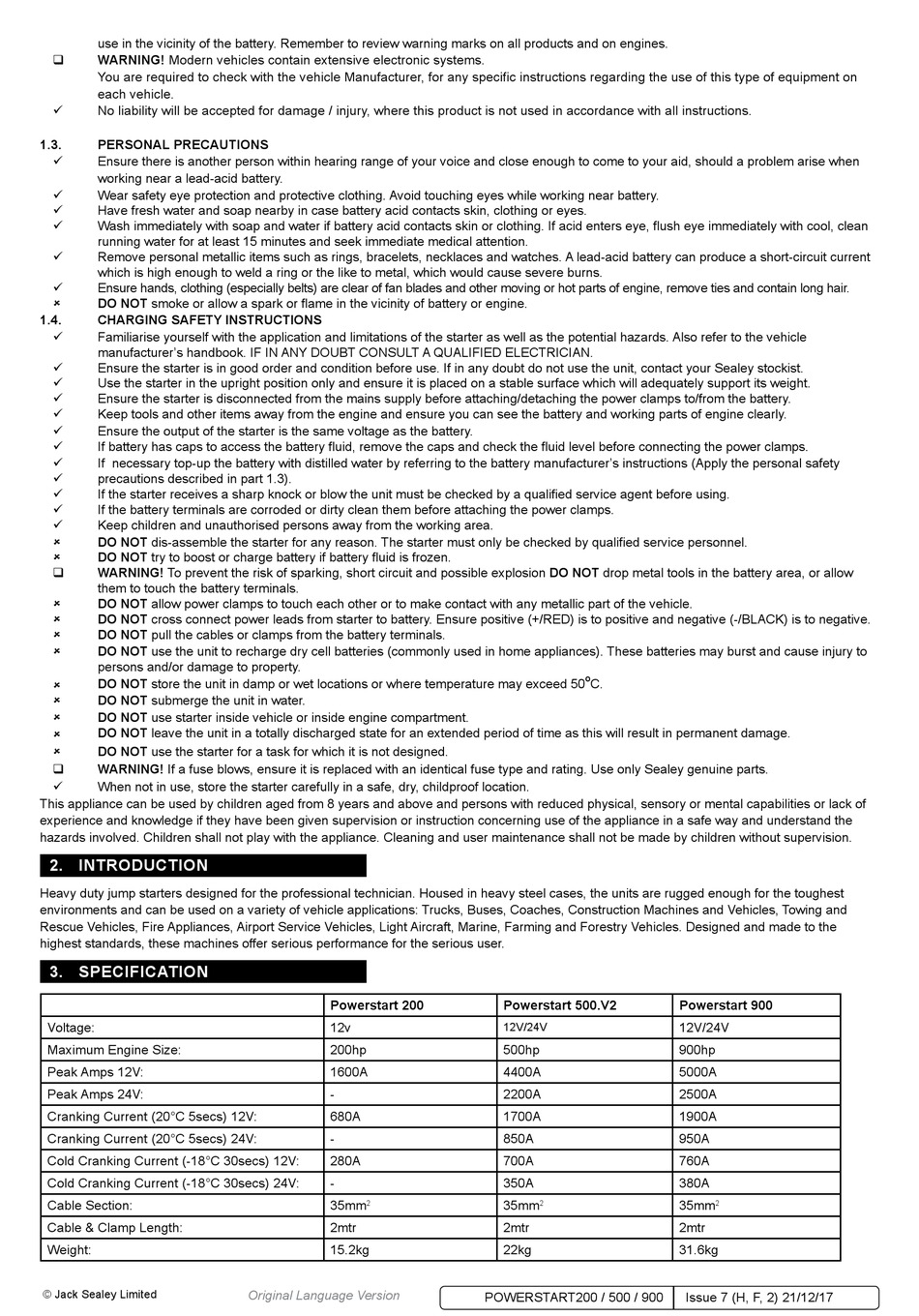

use in the vicinity of the battery. remember to review warning marks on all products and on engines.
WarninG! Modern vehicles contain extensive electronic systems.
‰
You are required to check with the vehicle Manufacturer, for any specific instructions regarding the use of this type of equipment on
each vehicle.
No liability will be accepted for damage / injury, where this product is not used in accordance with all instructions.
9
1.3.
personal preCautions
Ensure there is another person within hearing range of your voice and close enough to come to your aid, should a problem arise when
9
working near a lead-acid battery.
Wear safety eye protection and protective clothing. Avoid touching eyes while working near battery.
9
Have fresh water and soap nearby in case battery acid contacts skin, clothing or eyes.
9
Wash immediately with soap and water if battery acid contacts skin or clothing. if acid enters eye, flush eye immediately with cool, clean
9
running water for at least 15 minutes and seek immediate medical attention.
remove personal metallic items such as rings, bracelets, necklaces and watches. A lead-acid battery can produce a short-circuit current
9
which is high enough to weld a ring or the like to metal, which would cause severe burns.
Ensure hands, clothing (especially belts) are clear of fan blades and other moving or hot parts of engine, remove ties and contain long hair.
9
Do not smoke or allow a spark or flame in the vicinity of battery or engine.
8
1.4.
CHarGinG saFetY instruCtions
familiarise yourself with the application and limitations of the starter as well as the potential hazards. Also refer to the vehicle
9
manufacturer's handbook. IF IN ANY DOUBT CONSULT A QUALIFIED ELECTRICIAN.
Ensure the starter is in good order and condition before use. if in any doubt do not use the unit, contact your sealey stockist.
9
use the starter in the upright position only and ensure it is placed on a stable surface which will adequately support its weight.
9
Ensure the starter is disconnected from the mains supply before attaching/detaching the power clamps to/from the battery.
9
Keep tools and other items away from the engine and ensure you can see the battery and working parts of engine clearly.
9
Ensure the output of the starter is the same voltage as the battery.
9
if battery has caps to access the battery fluid, remove the caps and check the fluid level before connecting the power clamps.
9
If necessary top-up the battery with distilled water by referring to the battery manufacturer's instructions (Apply the personal safety
9
precautions described in part 1.3).
9
if the starter receives a sharp knock or blow the unit must be checked by a qualified service agent before using.
9
if the battery terminals are corroded or dirty clean them before attaching the power clamps.
9
Keep children and unauthorised persons away from the working area.
9
Do not dis-assemble the starter for any reason. the starter must only be checked by qualified service personnel.
8
Do not try to boost or charge battery if battery fluid is frozen.
8
WarninG! to prevent the risk of sparking, short circuit and possible explosion Do not drop metal tools in the battery area, or allow
‰
them to touch the battery terminals.
Do not allow power clamps to touch each other or to make contact with any metallic part of the vehicle.
8
Do not cross connect power leads from starter to battery. Ensure positive (+/RED) is to positive and negative (-/BLACK) is to negative.
8
Do not pull the cables or clamps from the battery terminals.
8
Do not use the unit to recharge dry cell batteries (commonly used in home appliances). These batteries may burst and cause injury to
8
persons and/or damage to property.
Do not store the unit in damp or wet locations or where temperature may exceed 50
8
Do not submerge the unit in water.
8
Do not use starter inside vehicle or inside engine compartment.
8
Do not leave the unit in a totally discharged state for an extended period of time as this will result in permanent damage.
8
Do not use the starter for a task for which it is not designed.
8
WarninG! if a fuse blows, ensure it is replaced with an identical fuse type and rating. use only sealey genuine parts.
‰
When not in use, store the starter carefully in a safe, dry, childproof location.
9
this appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the
hazards involved. children shall not play with the appliance. cleaning and user maintenance shall not be made by children without supervision.
2. introDuCtion
Heavy duty jump starters designed for the professional technician. Housed in heavy steel cases, the units are rugged enough for the toughest
environments and can be used on a variety of vehicle applications: trucks, Buses, coaches, construction Machines and Vehicles, towing and
Rescue Vehicles, Fire Appliances, Airport Service Vehicles, Light Aircraft, Marine, Farming and Forestry Vehicles. Designed and made to the
highest standards, these machines offer serious performance for the serious user.
3. speCiFiCation
Voltage:
Maximum Engine size:
Peak Amps 12V:
Peak Amps 24V:
cranking current (20°c 5secs) 12V:
cranking current (20°c 5secs) 24V:
cold cranking current (-18°c 30secs) 12V:
cold cranking current (-18°c 30secs) 24V:
cable section:
cable & Clamp Length:
Weight:
© Jack Sealey Limited
powerstart 200
12v
200hp
1600A
-
680A
-
280A
-
35mm
2
2mtr
15.2kg
Original Language Version
o
c.
powerstart 500.V2
12V/24V
500hp
4400A
2200A
1700A
850A
700A
350A
35mm
2
2mtr
22kg
POWERSTART200 / 500 / 900
powerstart 900
12V/24V
900hp
5000A
2500A
1900A
950A
760A
380A
35mm
2
2mtr
31.6kg
Issue 7 (H, F, 2) 21/12/17
