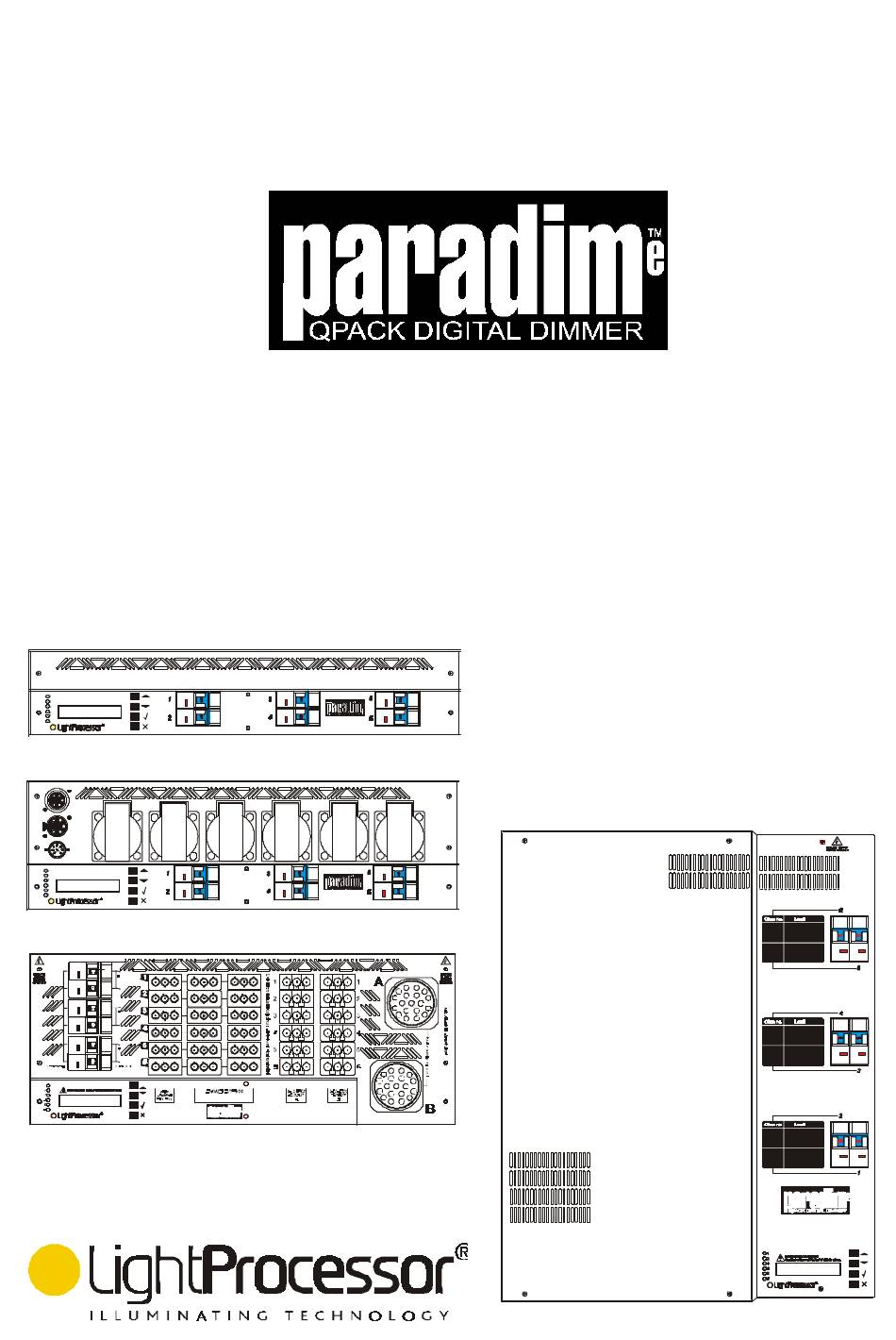

Page 1 INSTALLATION AND OPERATING MANUAL Version 21, September, 2003, (all variants)
Page 3 ANTES DE HACER LA CONEXION A LA RED. The material contained in this document is for information purposes only and is subject to change without notice. LightProcessor Limited assumes no responsibility for any errors or omissions that may appear in this manual.
Page 4: Table Of Contents
Service Plates, see page V Wallplates, see page 4 Additional Patch Leads, see page 13 DMX/Analogue Cables, see page 13 Wallmount Models Wallplates, see page 4 XLR/DIN Input Plate, see page 1 LightProcessor Paradime, all variants, version 21, September 2003...
Page 5: General Instructions L
•In the event of serious operating problems stop using the product immediately and either contact the nearest LightProcessor distributor for assistance or contact the manufacturer directly. •Never try to repair the product yourself. Repairs or modification could cause damage or faulty operation.
Page 6: Mounting Wallmount Models To The Wall Ll
3mm. gap between the heads of the screws and the wall. Hang the Paradime on the two screws, ensuring that the slots have engaged behind both screw heads. Tighten down the screws, so that the Paradime cannot be moved and insert the third screw.
Page 7 CHANGING THE DIMMER FOR USE ON A DIFFERENT POWER SUPPLY VOLTAGE The Paradime is able to operate on either 115V or 230V AC supplies. The internal power supply links must be altered, if appropriate, from the factory-set option. Disconnect and isolate the power supply from the dimmer.
Page 8: Connecting The Supply Lv
For single phase supplies: Where the Paradime is to be used single phase, the single incoming live conductor must be routed to the other two phase inputs using the supplied single-phase links (packed inside the dimmer). Fit the links provided to link terminal P1 to P2 and P2 to P3.
Page 9: Connecting The Outputs
(Socket Versions) Various international output socket types are available. Consult your dealer or the LightProcessor website for further details. Outputs may be made via the output terminal blocks inside the rear of the Paradime as well as via the front-panel sockets.
Page 10 Automatic phase detection will only be functional if a second phase-detect module is fitted. In the event that it has been removed, next time the unit is powered up, the Paradime will detect its absence and will select the last setting used when the second phase-detect module was present.
Page 11: Connecting The Control Inputs
See Fig. 13. The termination jumper should be placed in the OFF position, unless the Paradime is the last device in the DMX chain. An optional XLR/DIN plug-in connector set is available as an alternative to hardwired connections. These connectors plug in to the white headers which are exposed when the terminal connector circuit board is removed.

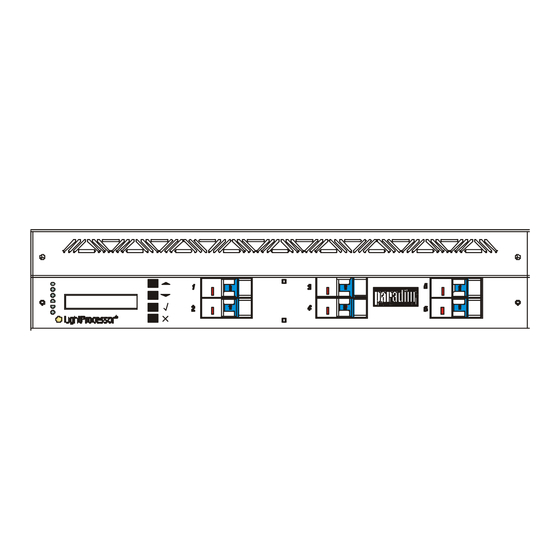

Page 12: Front Panel Controls And Features
When power is applied to the unit, a self-test is performed. The LCD text display shows SELF TEST. When the self test is passed, the display will show either PARADIME READY (followed by a scrolling message) if the menus are locked, or 'DMX START nnn' if the menus are unlocked.
Page 13: Using The Paradime Patchpack
Channel 1. Constant live feed for motors Channel 2. Dimmed feed for lamps. Both are protected by circuit breaker 1 (in total 10A). Multiple packs may be cross-patched Fig. 14 LightProcessor Paradime, all variants, version 21, September 2003 Page 3...
Page 14 Change the preheat settings, as required, for the next scene to be ‘recorded’. When all the required scenes have been recorded, return all preheat levels to zero. c) use a WP6 wallplate with the Paradime menu 321 GET SCENE [ n] set to ‘REMOTE PROGRAM’. See ‘Remote programming and editing’ on page 5.
Page 15: Control Modes
8. WP6M A WP6 or similar device may be used to select four scenes and also allow up/down adjustment when the Paradime input is set to WP6M in menu 51. The functions of the buttons are shown in Fig. 17 below. Pressing buttons 1, 2, 4 or 5 recalls the scenes allocated to memories 1, 2, 3 and four in menu 34.
Page 16: Menu System And User Options
∧ ∧ /∨ ∨ to select channel (or All option [A]) and press 4. 2311 CURVE [LIN] Default = Linear ∧ ∧ /∨ ∨ to select curve and press 4. ⇒ STORED OK LightProcessor Paradime, all variants, version 21, September 2003 Page 6...
Page 17 SCENE 8 a user-programmed scene is output. GO ANALOG the Paradime looks for an analogue input signal. SCN8+WP the Paradime outputs scene 8. Control from any connected WP6 wall plate is also active. ALL OFF all channels go to 0 output.
Page 18 Level control of four scenes. See page 5 for fuller explanations of of the various inputs. ∧ ∧ /∨ ∨ to select option and press 4 to store. ⇒ STORED OK LightProcessor Paradime, all variants, version 21, September 2003 Page 8...
Page 19 MENU SYSTEM AND USER OPTIONS - cont’d 6 SET TEXT? The text message 'LightProcessor Digital Dimmer' which scrolls through the display during normal operation may be edited to a message of your choice. The message may contain up to 40 alphanumeric characters. Note: The hardware link must be removed before you can make changes.
Page 20 Display shows REV. NN S/nnnnn 8A READ QUEST? Displays the quest number which summarises the current configuration of the Paradime. This may be used for remote diagnosis of status and for troubleshooting. Software is available for the interpretation of the Quest Number.
Page 21 Fig. 19 LightProcessor Paradime, all variants, version 21, September 2003 Page 11...
Page 22 Because a standard 8-pin DIN plug typically has six channel control pins (and analogue outputs from desks are typical- ly grouped in sixes), it is necessary to configure the analogue input of the single channel 63A Paradime to accept con- trol commands from only one pin.
Page 23: Maintenance
This represents a single terminal to which a high voltage is applied with respect to the earth terminal. All circuit breakers must be 'on' for this test. LightProcessor Paradime, all variants, version 21, September 2003 Page 13...
Page 24: System Messages
Temperature sensor failure. Refer to installer. Sensor replacement may be necessary. Error messages must be cleared to allow the Paradime to continue operating. See the comments relating to menu 86 on page 10 of this manual and those relating to the Installer Hardware Lock on page VI of the installer instructions.
Page 25: Specification
Relative humidity 0-90% non-condensing Pollution Degree 2 Protection Classification IP30 Conformance All Paradimes are designed to meet CE regulations covered by: LVD (using EN60439 and EN60950) EMC (EN55014 and EN50082-1) LightProcessor Paradime, all variants, version 21, September 2003 Page 15...
Page 26: Service Plates
10/16A Output Terminal Connector C2WAY/7102 20/25A Output Terminal Connector PK8802 Earth Block EARTH/PAR 32mm. Cable Strain Relief Gland PARGLAND32 20mm, Cable Strain Relief Gland PARGLAND20 ALWAYS INSIST ON ORIGINAL SPARE PARTS BEING FITTED LightProcessor Paradime, all variants, version 21, September 2003 Page 16...
Page 27 Product. LightProcessor will not be under any liability in respect of such items. The cost of shipping defective Product back to LightProcessor is borne by the Customer. The cost of shipping back to the Customer is borne by LightProcessor, subject to the repair being accepted as a warranty repair.
Page 28 Also available from LightProcessor •QCommander automated lighting control system QCommander 256 (standard and extended models) QCommander 512 (standard and extended models) Input Extender fader panel Replica memory store and playback unit •DMX Tools DMuX demultiplexer Store memory store and playback unit...
