GRANDSTREAM GXP1400 MANUAL

1


Advertisement

loading
Need help?

Need help?

Do you have a question about the GXP1400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Grandstream Networks GXP1400

Summary of Contents for Grandstream Networks GXP1400

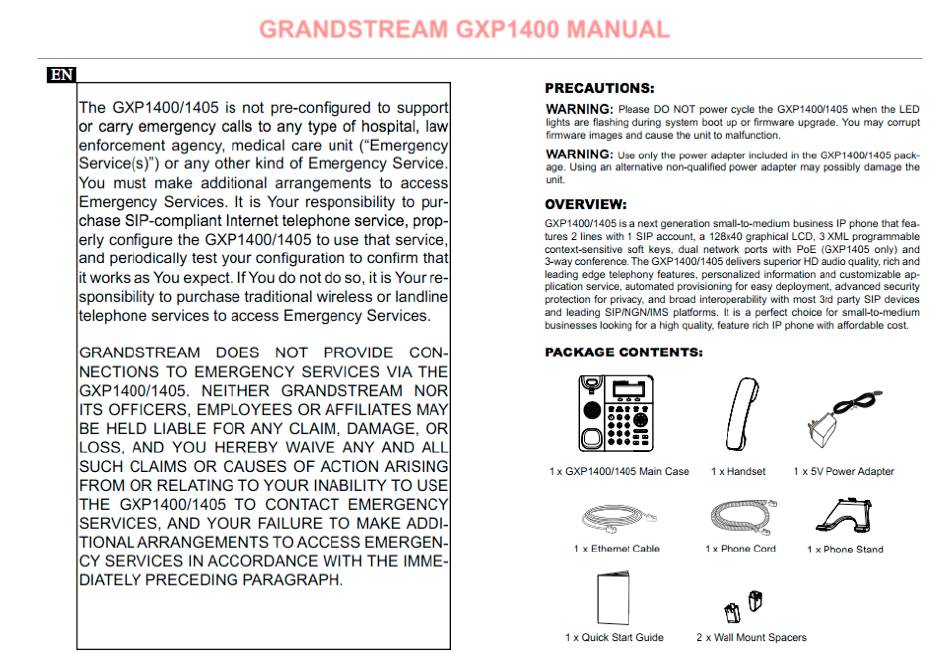

  • Page 1 GRANDSTREAM GXP1400 MANUAL   1    ...
  • Page 2   2    ...
  • Page 3   3    ...
  • Page 4 Setting Grandstream GXP1400 Verify device’s IP address. Press [Menu] à Select [Status] à Select [Network Status] à IP address displayed on [IPv4] option. 1. Open a web browser and enter the device’s IP address on the URL field. Example: IP address from device: 192.168.001.002 à Format: [http://IP Address] à Type [http://192.168.1.2] Type password and click [Login].
  • Page 5 SIP Server and Outbound Login: Enter Login Server. (voipXXXX.agile.ne.jp) Account Name, SIP User ID, Authenticate ID: Enter Unique ID (10 characters). Authenticate Password: Enter Registered Password (sent thru mail). *If password was changed, please enter the new one. Voicemail User ID: Enter 999. Once done, click [Save].
  • Page 6 [Accounts] tab à [Account 1] à Select [Audio Settings] Send DTMF: Check [in-audio] [via RTP]. Preferred Vocoder – choice 1-7: Select either [PCMA] or [PCMU]. Once done, click [Save]   6    ...
  • Page 7 6. [Settings] tab à [Call Features] Disable Call Waiting: Select [Yes]. *This will ignore Catch. Select [No], if you want to enable Catch. Once done, click [Save].   7    ...
  • Page 8 7. [Settings] tab à [Date and Time] NTP Server: Enter ntp.jst.mfeed.ad.jp Time Zone: Select the time zone where you are located. Once done, click [Save].   8    ...
  • Page 9 8. [Maintenance] tab à [Upgrade and Provisioning] Firmware Upgrade and Provisioning: Select [Always Skip the Firmware Check]. Once done, click [Save].   9    ...
  • Page 10 9. [Maintenance] tab à [Language] Display Language: Select [Auto]. Once done, click [Save and Apply]. * After all configurations are set, click [Reboot]. This will reset the device and apply all changes made.   10    ...

  • Page 11: Precautions & Safety Instructions

    Precautions & Safety Instructions The following instructions help use Grandstream GXP1400 properly and prevent accidents. Failure to follow these instructions would void the product’s warranty and accident may happen. Immediately unplug the device from the power supply if there is a strange smell and smoke. Don’t use the device and immediately contact •...
  • Page 12 / Inquiries by telephone and email: Send to: sup@agile.ne.jp Check your network Call is interrupted Are there any abnormalities in Telephone number: 03-6365-1506 environment. by noise the network environment? Weekdays: 10:00 - 19:00 Reference: http://www.manualslib.com/manual/484153/Grandstream-Gxp1400.html?page=3#manual   12    ...

This manual is also suitable for:

Gxp1405
