Ryobi OPS18 Original Instructions Manual

Cordless pruning saw
Hide thumbs
Table of Contents

Advertisement

Quick Links

ORIGINAL INSTRUCTIONS
Cordless
Pruning Saw
OPS18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OPS18 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ryobi OPS18

Summary of Contents for Ryobi OPS18

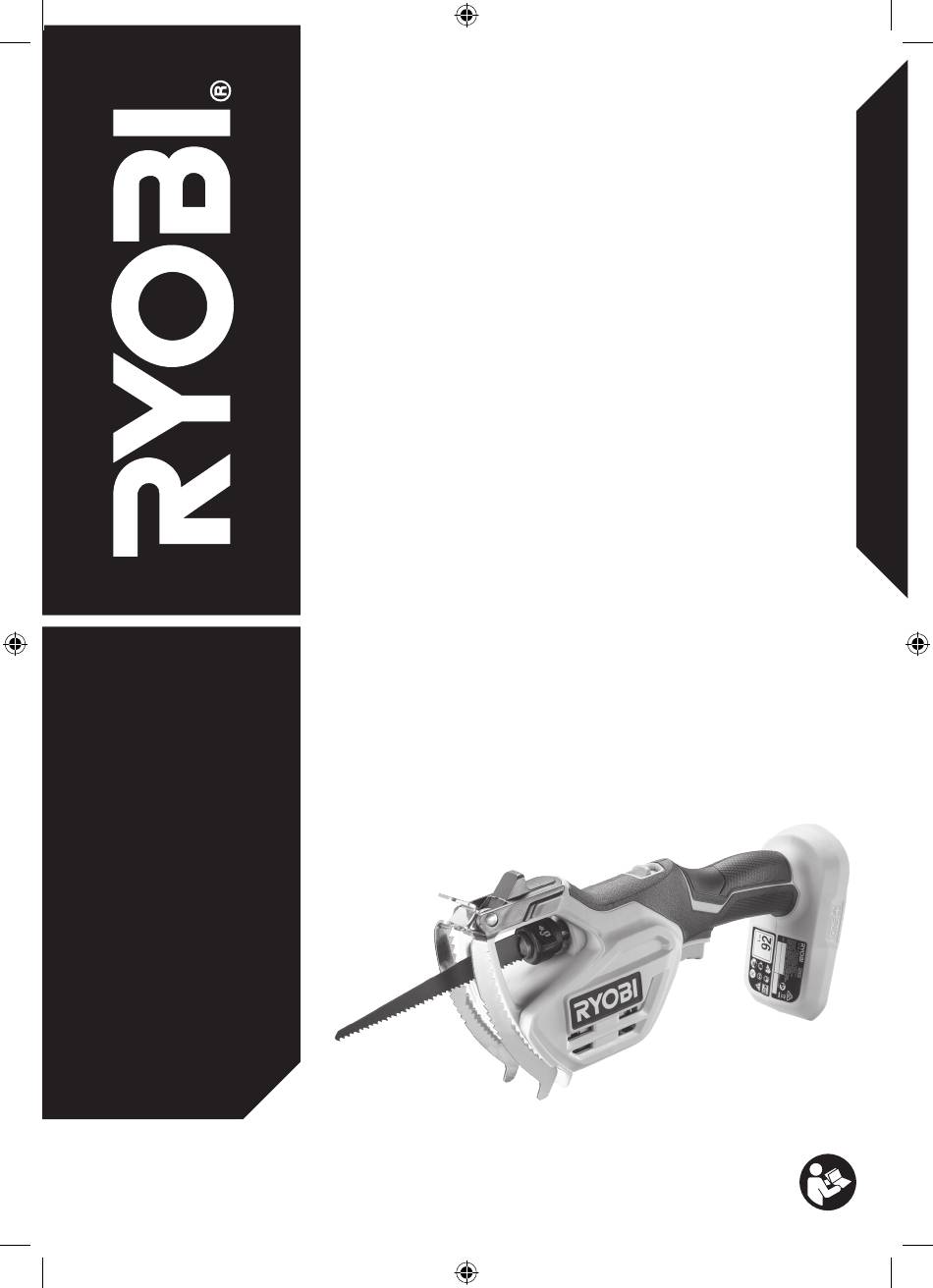

  • Page 1 ORIGINAL INSTRUCTIONS Cordless Pruning Saw OPS18...
  • Page 2 Important! It is essential that you read the instructions in this manual before assembling, operating, and maintaining the product. Subject to technical modification.

  • Page 3: Intended Use

    Safety, performance, and dependability have been given PERSONAL SAFETY top priority in the design of your cordless pruning saw. ■ Stay alert, watch what you are doing and use common sense when operating a power tool. Do INTENDED USE not use a power tool while you are tired or under the The product is intended for the cutting and pruning of small influence of drugs, alcohol or medication.

  • Page 4: Special Safety Rules

    ■ Maintain power tools. Check for misalignment or SPECIAL SAFETY RULES binding of moving parts, breakage of parts and any ■ Hold power tool by insulated gripping surfaces, other condition that may affect the power tool’s when performing an operation where the cutting operation.

  • Page 5: Transporting Lithium Batteries

    TRANSPORTING LITHIUM BATTERIES RESIDUAL RISKS Transport the battery pack in accordance with local and Even when the product is used as prescribed, it is still national provisions and regulations. impossible to completely eliminate certain residual risk Follow all special requirements on packaging and labelling factors.

  • Page 6: What's In The Box

    WHAT’S IN THE BOX SYMBOLS IN THIS MANUAL See page 5. ■ Pruning saw x 1 Parts or accessories sold separately ■ Pruning saw blade x 1 ■ Operator’s manual x 1 Note SYMBOLS ON THE PRODUCT Safety alert Warning Read and understand all instructions before operating the product.
  • Page 7 WHAT’S IN THE BOX...

  • Page 8: Know Your Product

    KNOW YOUR PRODUCT 1. Pruning blade 5. Trigger 2. Branch claw 6. Handle grip 3. Blade release lock 7. Battery foot 4. Trigger lock button...

  • Page 9: Getting Started

    GETTING STARTED Always wear safety goggles or safety glasses with side Remove the battery pack. Push and rotate the blade release lock counterclockwise. Insert the blade, and allow it to lock shields when operating the product. Failure to do so could result in objects being thrown into your eyes resulting into position.
  • Page 10 Know your product KNOW YOUR PRODUCT OVERVIEW Operating the product Replacing the blade p.11 Cleaning the product Storing the product p.12 p.13...

  • Page 11: Operation

    OPERATION OPERATING THE PRODUCT 1. Insert the battery pack into the battery port until the latches click into place. 2. Position the pruning saw over the limb or branch. Place the pruning saw on top of the limb, and move the pruning saw backwards until the mounting clamp is in front of the limb.
  • Page 12 OPERATION WARNING: Do not touch the hook, blade, or air vents while sawing. 3. Slide the trigger lock button backwards, and squeeze the trigger to operate the product. NOTE: Release the trigger lock button, and continue to squeeze the trigger to extend the operation.

  • Page 13: Replacing The Blade

    MAINTENANCE REPLACING THE BLADE 1. Press the latches on the battery pack. Remove the battery pack from the product. 2. Loosen the blade release clock. Remove the blade from the mounting clamp. 3. Push and rotate the blade release lock counterclockwise.

  • Page 14: Cleaning The Product

    MAINTENANCE CLEANING THE PRODUCT 1. Press the latches on the battery pack. Remove the battery pack from the product. 2. Press the latches on the branch claw. Pull and remove the branch claw. 3. Clean all foreign material from the product with a soft, dry cloth.

  • Page 15: Storing The Product

    STORAGE STORING THE PRODUCT 1. Press the latches on the battery pack. Remove the battery pack from the product. 2. Loosen the branch claw. Remove the blade from the blade release lock. 3. Store the product in a cool, dry, and well- ventilated place that is inaccessible to children and away from sources of ignition.

  • Page 16: Product Specifications

    PRODUCT SPECIFICATIONS RC18120, RC18150U, RC18627U, Compatible chargers BCL1418IV, RC18115, RC18150, BCL14181H, BCL14183H Cordless Pruning Saw Model OPS18 REPLACEMENT PARTS Voltage 18V d.c. Blade RAPS62 Weight Without battery pack 1.1 kg VIBRATION LEVEL With heaviest battery pack 2.3 kg The declared vibration value has been measured with a 1600–2600 spm...
  • Page 20 Imported by: Techtronic Industries Australia Pty Ltd 31 Gilby Road, Mount Waverley, VIC 3149, Melbourne, Australia RYOBI is a trademark of Ryobi Limited, Techtronic Industries N.Z. Limited and is used under license. Unit C, 70 Business Parade South, © 2019 Techtronic Cordless GP. All rights reserved.
