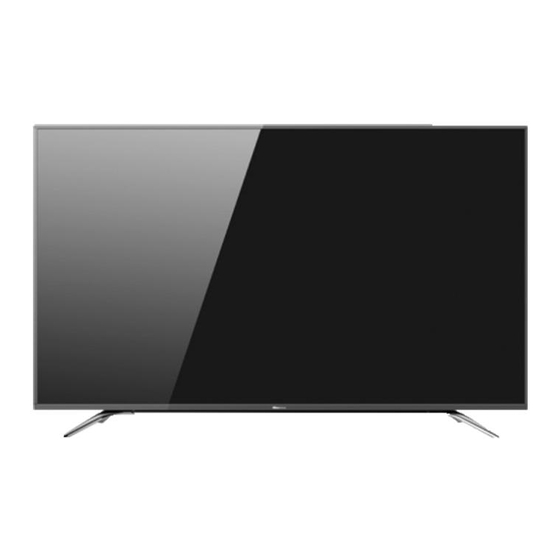

- Page 1 LHD32K3500HK USER MANUAL Before using the TV, Please read this manual thoroughly, retain it for future reference. English RSAG2.025.4850SS 条形码定位框，长 35mm，高度请根 据长度等比例缩放。该定位框不做印 刷处理。物料号：...
- Page 2 Tips Before using the TV, Please read this manual thoroughly, retain it for future reference. Our company does not assume any liability for any accident arising from violation of the matters of attention and instruction on use in this manual. This product involves high voltage.
- Page 3 If you find abnormal sound or smell, or there is sound but no image, please turn off the TV and pull out the plug immediately and contact the Hisense Service. ・ Please do not press the power line and signal line with other things.
- Page 4 2 Maintenance ・ Do not clean this unit with volatile oils or dilution, which may cause cabinet deterioration or damage its coating surface. ・ If the cabinet becomes dirty, please clean it with a soft cloth which has neutral detergent wet with water. 3 LCD display instruction and maintenance LCD display panel is the advanced S&T product, composed of several millions of Movie transistors inside.
- Page 5 × Unsteady places. × Places suffering from easy vibration. × Places of lot of dust or moist places. × Places of high temperatures. ・ In the case where such substances that are painted with paint or organic solvent and grease, etc. on the surface of the TV cabinet, the chemical reaction may be occurred in between the rubber cushion on the base and such substances hereinbefore, which may cause a slight corrosion on the surface of the TV cabinet.
- Page 6 Install on the wall: Leave enough space around the set. ・ Never install the TV set as follows: Inadequate air circulation can lead to overheating of the TV and may cause damage to your TV or cause fire. Air circulation is blocked. Wall Wall...
-
Page 7: Table Of Contents
Contents Accessories List......................2 Installing the Stand ....................2 Remote Control ......................3 Control Panel ......................4 Terminal Introduction ....................5 Connection Description .................... 6 Using the TV for the First Time ................10 Others ........................11 Specifications ......................13... -
Page 8: Accessories List
Accessories List User Manual Remote Control AAA Battery Comp Adapter Warranty Card Power line Screw AV Adapter Installing the Stand • Carefully place your TV face-down on a soft, flat surface to prevent damage to the TV or scratching to the screen. •... -
Page 9: Remote Control
Remote Control Mute button Setting button Start/Exit the mute state Start/stop quick setup menu Enter Live TV Standby button Media Enter standby/exit standby Enter Media center Game Media Game Apps Enter Game Home button Apps Enter the television's Home Enter Apps page Information ▲... -
Page 10: Control Panel
Control Panel Hold the button to pop up the button menu. Control panel on the back shell (see the effect from the rear). Home Back Power Source Close Volume Up Settings Remote Volume Down Note: This machine does not support Power button retrieve remote control functions. -
Page 11: Terminal Introduction
Terminal Introduction ANTENNA HDMI AC INPUT HEADPHONE DEBUGGING HDMI HEADPHONE DEBUGGING AC INPUT COMP COAXIAL 【NOTES】 • As a result of time consumption of power down of power supply and system processing, please don't switch on and off continuously and fast, otherwise it may cause abnormal working. -
Page 12: Connection Description
The total current should be no more than 1400 mA when all the USB jacks are connected with external devices. Hisense warranty does not cover the TV damages and issues caused by the current overload.(Only USB 1 jack supports USB 3.0 devices) ・Connecting an Ex-Speaker... - Page 13 ・Connecting an A/V Device With the HDMI Cable Set-top box/Player/Computer/DVD HDMI HDMI: HDMI is also called as high-definition multi-media port. As the latest generation of port, the digit audio signal and video signal can be transmitted with a cable without compressed. •...
- Page 14 With the Component Cable (Red) (Blue) Video Camara/VCR/Set-top box/ Satellite Receiver/DVD/VCD (Green) Audio R Audio R (Red) Audio L Audio L (White) Video ・ Connect the TV's COMPONENT jack to component video output jack (Y, PB, PR) of the external A/V devices (VCD, DVD, VCR or Camcorder). ・...
- Page 15 Connecting a network ・ LAN: It can be connected to the network cable for Internet access. Enter the setup menu, select Settings→System Settings→Network Settings, click into Network Settings menu. The wireless network connection Wireless router Network jack in the wall The TV can directly receive network signals via wireless router.
-
Page 16: Using The Tv For The First Time
Using the TV for the First Time Turning the TV On or Off Use an AC cord to connect the TV's Power input jack AC outlet. ・ Press the Power button on the TV set. When the TV is on, press the Standby ・... -
Page 17: Others
Others Trouble Shooting When there is something wrong with your TV, you can try turning off the TV and then restart it. You can also operate according to the following chart. If the problem still cannot be solved, please contact the professional technicians. Symptoms Possible Solutions ·... - Page 18 2 Instructions The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories.
-
Page 19: Specifications
Specifications MODEL LHD32K3500HK Without stand 737×438×64 Dimension (WxHxD)(mm) With stand 737×463×130 Without stand Weight(kg) With stand Active screen diagonal size (cm) Screen resolution 1366×768 Power consumption Audio power 6W+6W Standard Q/0202RSR 609 Power supply ～ 50/60Hz 160-240V PAL/I、DTMB Receiving system PAL、NTSC... - Page 20 Below is the list of video format compatible: Video decoding Formats Audio decoding Frame Resolution Bit rate Type rate (max) (max) （max） AC3, .avi Xvid 1280×720 40Mbps 30fps MPEG1(Layer1,2,3) .avi .mpg AC3, MPEG2 1920×1080 40Mbps 30fps MPEG1(Layer1,2,3) .ts .mkv AC3, AAC, .avi .mp4 H.264 1920×1080...
