Human Touch HT-125 Replacement Manual

Replacing an armrest
Hide thumbs Also See for HT-125:
1
2
3

Advertisement

Table of Contents

It is imperative that Human Touch
products are repaired in a manner that ensures product safety and regulatory compliance and that is fully consistent with the practices used
®
during the manufacturing process. Therefore, Human Touch requires that all product repairs are performed using only factory-new parts and in accordance with these repair
instructions. Failure to adhere to these instructions voids the product warranty and releases Human Touch from all liability for injury or product damage resulting from the repair.
Tools Required: Phillips-head screwdriver, 16-mm wrench. NOTE: SAVE ALL SCREWS FOR USE DURING REASSEMBLY.

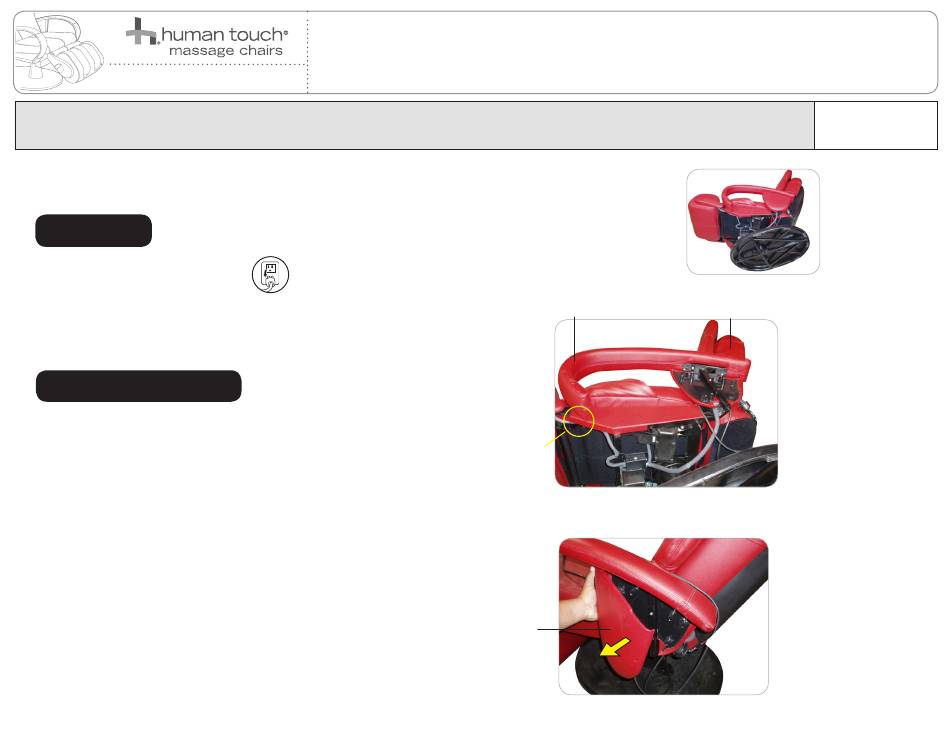

GET READY

1. Power off the chair and unplug it.
2. Using two people, turn the chair gently on its side, with the armrest you wish to
replace on top (Fig.1).

REMOVING AN ARMREST

1. On the bottom of the chair near the front, locate the bolt
that secures the armrest to the chair frame, then loosen the
bolt as far as possible using a 16-mm wrench (Fig.2).
2. Pull up on the armrest to provide further access to the bolt,
then remove the bolt.
3. Using your hand, pry off the side panel (Fig.3).
HT-125
REPLACING AN ARMREST
Front of chair
Bolt here
Side panel
(Fig.1)
Back of chair
(Fig.2)
(Fig.3)
October 17, 2010
X1103
SERVICE LEVEL: 2
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HT-125 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Human Touch HT-125

Summary of Contents for Human Touch HT-125

  • Page 1 Therefore, Human Touch requires that all product repairs are performed using only factory-new parts and in accordance with these repair instructions. Failure to adhere to these instructions voids the product warranty and releases Human Touch from all liability for injury or product damage resulting from the repair.
  • Page 2 4. Locate the Phillips-head screw toward the back of the armrest that Armrest Phillips-head screw secures the armrest to the chair frame (Fig.4). 5. Using a Phillips-head screwdriver, remove the screw and then push the armrest toward the back of the chair to remove it. (Fig.4) INSTALLING THE NEW ARMREST 1. Slide the new armrest into place. The tab at the bottom of the armrest installs into a slot on the chair frame (Fig.5). 2. Using a Phillips-head screwdriver, replace the screw to secure the new armrest to chair frame (Fig.5). Slot Phillips-head screw goes here to secure armrest to frame (Fig.5)
  • Page 3 3. Using a 16-mm wrench, replace the bolt that secures the armrest to the chair base (Fig.6). 4. Replace the side panel by aligning the post on the inside of the panel with the corresponding guides on the chair, then pushing the cover into place (Fig.7). Bolt Side panel (Fig.7) (Fig.6) Please send any questions or comments regarding these instructions to: documentation@humantouch.com © 2010 Human Touch , LLC. ®...
