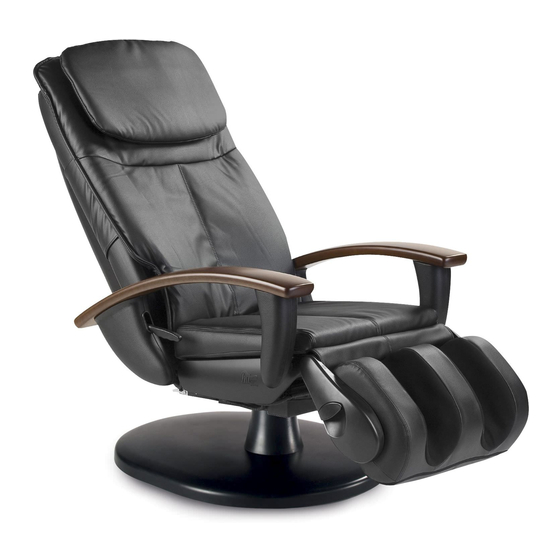

HT-100/102/103/120/410/
430/450/3100/3200/3300
It is imperative that Human Touch
products are repaired in a manner that ensures product safety and regulatory compliance and that is fully consistent with the practices used
®
during the manufacturing process. Therefore, Human Touch requires that all product repairs are performed using only factory-new parts and in accordance with these repair
instructions. Failure to adhere to these instructions voids the product warranty and releases Human Touch from all liability for injury or product damage resulting from the repair.
Tools Required: two small pliers, small Phillips screwdriver, small flathead screwdriver NOTE: SAVE ALL SCREWS FOR USE DURING REASSEMBLY.

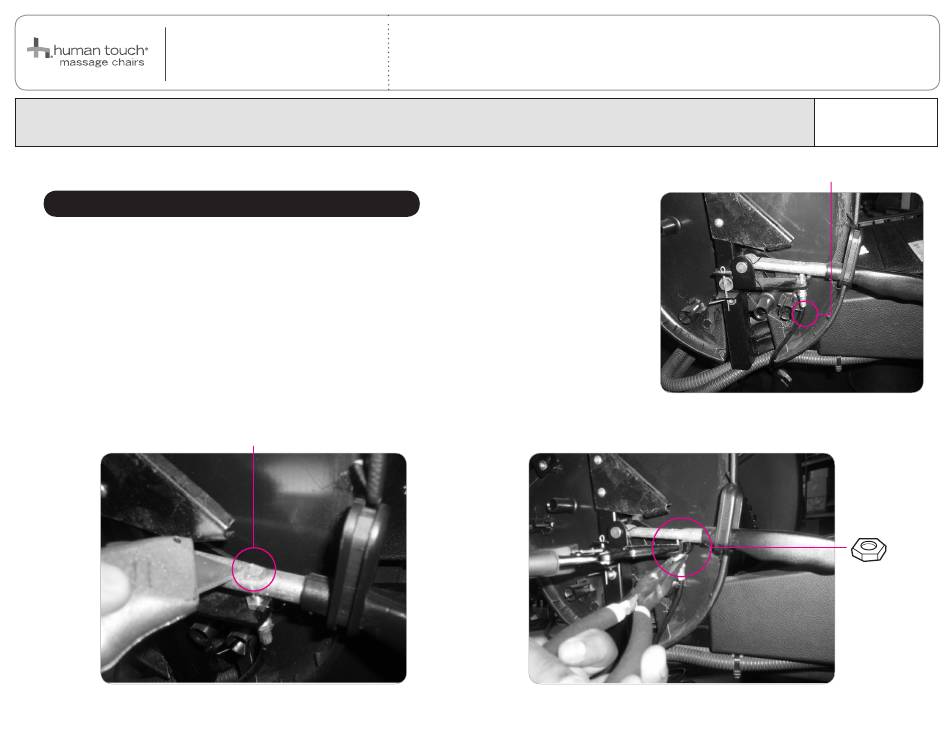

REMOVING THE FOOTREST CABLE FROM THE HANDLE
1. Use both hands to pull the right-hand side panel off the chair.
2. Locate the footrest cable (Fig.1).
3. Scrape off the hot glue from the top of the handle where the cable comes through the handle (Fig.2).
NOTE: Some chairs may secure the cable to the handle using a small metal clip. In this case, use
a flat-head screwdriver to remove the clip.
4. Using two pliers, loosen the two nuts on either side of the black bracket until the cable is loose enough
to pull out from the bracket (Fig.3). NOTE: Loosen the upper nut completely.
5. Pull the able down to detach the barrel from the bracket.
6. Push the cable up, so the barrel on the end of the cable is above the handle.
7. Rotate the barrel 90 degrees so it will fit through the slot on the handle, then pull the cable through the handle.
8. Using a Phillips-head screwdriver, remove the screws that secure the cable guides underneath the chair, freeing the cables.
Scrape off the hot glue
(Fig.2)
REPLACING THE FOOTREST CABLE
September 19, 2011
SERVICE LEVEL: 3
Footrest cable
(Fig.1)
(Fig.3)
Nut
1
Advertisement
Table of Contents
Related Manuals for Human Touch HT-100
Summary of Contents for Human Touch HT-100
- Page 1 Therefore, Human Touch requires that all product repairs are performed using only factory-new parts and in accordance with these repair instructions. Failure to adhere to these instructions voids the product warranty and releases Human Touch from all liability for injury or product damage resulting from the repair.
- Page 2 DETERMINE THE CORRECT CHAIR VERSION 1. Remove the seat cushion from the chair. 2. If the seat cushion is supported by fabric secured with a zipper, you have Version 1. Go to “Removing a Version 1 Footrest Cable from the Bracket Underneath the Chair”. 3.
- Page 3 The end with the narrower barrel installs onto the footrest handle INSTALL NEW THE FOOTREST CABLE The cable has two distinct ends. The end with the narrower barrel installs onto the footrest handle; the end with the wider barrel installs underneath the chair (Fig.5). The end with the wider barrel installs underneath the chair (Fig.5)
- Page 4 2. When the handle is operating as desired, turn both nuts so they are tight against the bracket. This will hold the cable in place. 3. On the opposite end of the cable, tighten the nuts the same way to secure that end. Please send any questions or comments regarding these instructions to: documentation@humantouch.com © 2011 Human Touch , LLC. ®...
